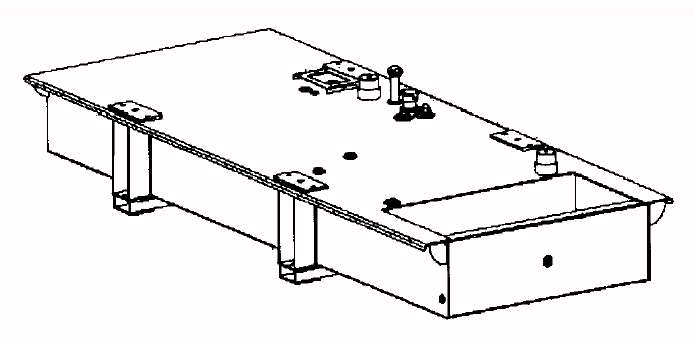

This sub-base fuel tank is designed to match up with the Cummins Power Generation diesel generators listed below and in the spec sheets above.  It is new and unused.



Approx Fuel Consumption

Cummins Diesel Genset model	Typical Standby Rating (kW)	Approx Run Time at full load 60Hz (Hours)
DGBB	35	48
DGBC	40	41
DGCA	50	33
DGCB	60	30
DGCG	80	22
DGGD		48
DGHD		45
DGHE		36



Bill of Material
Switches are installed for the new Power Command 2100 controls although they can be replaced or modified to work with other controls.

Tank Part Number	0159-1464
Rupture Basin Switch Kit (C169)	0541-0890-02
Low Fuel Level Switch Kit (C157)	0541-0891-02



Be sure to check dimensions to be sure the tank will match your specific genset, especially if it is an older model.



Item Number: 0415-0834
Original Price: $2,695.00
Shipping Weight: 650 lbs.

Click here to contact NoOutage.com if you are interested in ordering this item.
