14302
14304
1430V

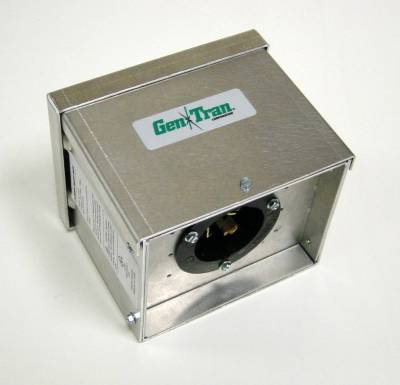

14302 aluminum bottom entry	14304 non-metal bottom entry	1430V aluminum front entry
Click thumbnail image above to enlarge

Gen/Tran 30A Power Inlet Boxes
120/240V NEMA L1430



For installations where the building electrical panel is located indoors and generator is located outdoors.  Eliminates need for open window or door for generator cord.  Raintight NEMA 3R box can be mounted on exterior of building and wiring may be run through wall to transfer switch or panel.  The 14302 and 1430V feature brushed aluminum construction which can be painted in field.  Twist lock male L1430P power inlet receptacle is mounted on box for cable connection to generator, 7500 watt maximum.  UL listed.

Note that the 14302 and 14304 boxes have the cable inlet underneath the bottom making it weather proof even when a cable is connected.  But for easy safe connection of the cable the box has to be mounted high enough to see the bottom to check for insect nests and to plug in cable.  The flip lid is optional for the 14302 box and must be ordered separately.

The 1430V box has the inlet mounted on the front which makes it easier to plug in the cable.  The flip lid is included and installed on this box.

WARNING: Never install this inlet box without connecting it to a transfer switch.  If this product is not used with a transfer switch, it is not allowed by the National Electrical Code to supply power from a portable generator to a premises wiring system because of safety concerns.  These concerns include the dangers of back feeding into the utility grid and possible damage when utility power is restored.  Click here for more about safety.



Specs

Model	14302	14304	1430V
Current (Amps)	30	30	30
Voltage	120/240	120/240	120/240
Inlet location	bottom	bottom	front
Size (W x H x D) inches		6 x 5 x 5	4.25 x 4 x 6.5
Enclosure Material	aluminum	glass filled nylon resin	aluminum
Flip Lid included?	No	Yes	Yes
Origin	Made in USA	foreign origin	Made in USA





Customers who purchased this product also ordered:
(click underlined words to see product pages)

Cordset for connecting generator RJB10410 or RJB10425Y
Flip Lid cover for male inlet FLPIB

Aluminum 14302 Bottom Inlet	Aluminum 1430V Front Inlet with Flip Lid
Item Number: 14302 Price: $68 Price last updated 11/29/2011 Shipping Weight: 2 lbs. This item normally ships in approximately 3 weeks or less.	Item Number: 1430V Price: $68 Price last updated 11/29/2011 Shipping Weight: 2 lbs. This item normally ships in approximately 1 week or less.
Non-metal 14304 Bottom Inlet
Item Number: 14304 Price: $56 Price last updated 11/29/2011 Shipping Weight: 3 lbs. This item normally ships in approximately 3 days or less.
