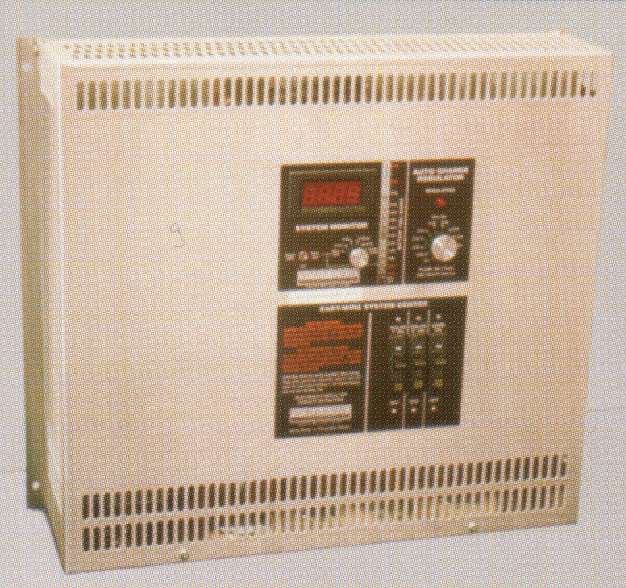

EZ-Wire
Outside |

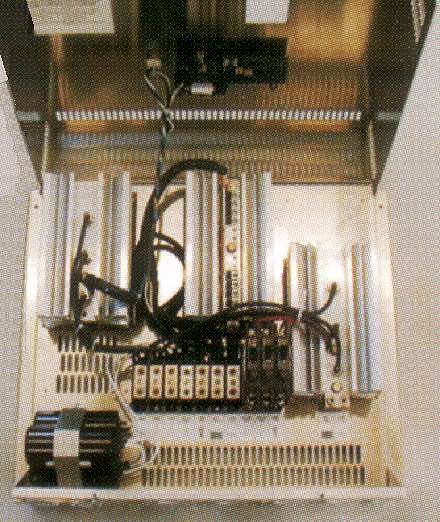

EZ-Wire
Inside |

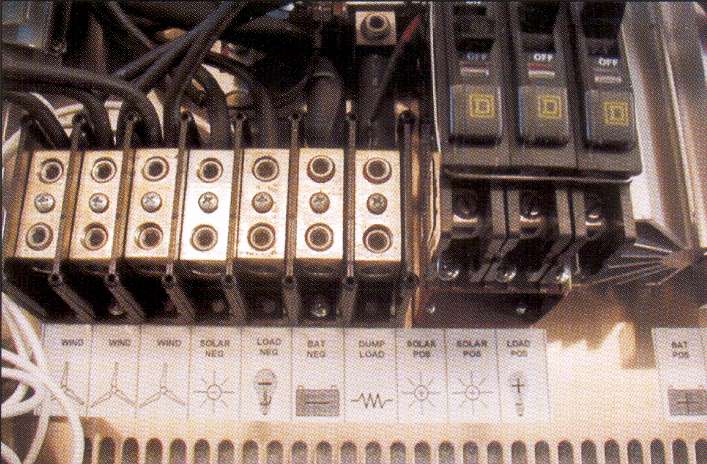

EZ-Wire
Terminals |
Sample
Wiring |

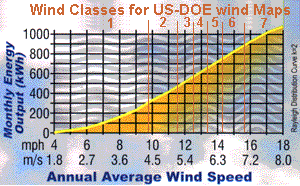

KWH/Month |
User
Manual |
click on thumbnail image above to enlarge

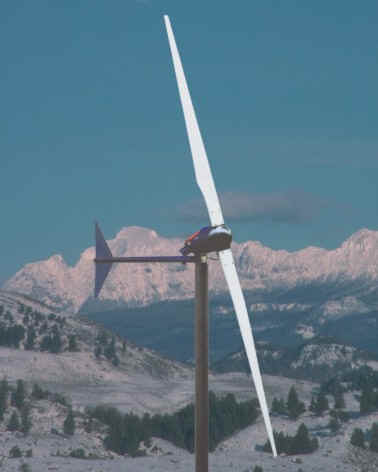

Whisper 3200W Wind Generator
with long distance capability
Whisper wind generators are made by World Power Technology.
These are designed for gusty wind areas and marine environments. Main frame rotor
shaft and boom are stainless steel. Tilt-up governor does not rely on springs and
needs no adjustment. Rotor is made of high strength light weight carbon reinforced
fiberglass material. Bearings are sealed and permanently lubricated.
Generator comes with the EZ-Wire System Center which provides battery charge control for
the wind generator and other functions. Made in USA.
Turbine is a welded steel design that incorporates a unique
Patented side furling "angle governor" for over-speed protection. Output
of turbine is transmitted to the EZ wire where it is converted to DC. Voltage is
switchable in the field.
This unit is similar to the 175 except that the generator is
designed to produce a higher 220 volts ac. The EZ-Wire System Center is supplied
with a step-down transformer to reduce the voltage at the receiving end. This higher
voltage between the generator and the receiving end reduces the current and voltage drop
allowing distances of over 1000 feet between the two locations.
Specifications
Click for complete instruction book
in pdf format (large 1.4M file)
Wind Generator
Specifications |
| Rated Power Output |
3200 watts at 27 mph |
| Output Voltage(s) |
12, 24, 32, 48 Volts dc |
| Rotor & Blade Configuration |
15 ft diameter rotor, 2 blades
fiberglass carbon fiber |

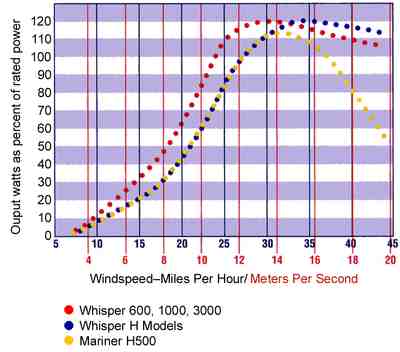

Output Profile vs. Wind Velocity:
7 mph
10 mph
20 mph
25 mph
27 mph
45 mph |
Approximate Output:
0 watts (turbine startup)
300 watts
1800 watts
3000 watts
3200 watts
3000 watts |
| Standard Mounting |
5 inch schedule 40 pipe |
| Tower Top Weight |
155 lbs |
| Warranty |
2 years |
EZ-Wire System Center
Specifications |
| Maximum Wind Generator Input |
120 amp dc rectifier (Note 1) |
| Other Input(s) such as Solar PV, engine generator, battery charger,
etc. |
80 amps dc max, (2) 40 amp breakers provided |
| Load Output(s) |
40 amps dc max, (1) 40 amp breaker provided |
| LED Metering |
state of battery charge
battery volts
net battery amps
wind generator amps
other sources amps
load amps |
| Diversion Load Required |
4600 watts (Note 2) |
Notes:
1) Generator actually has 3 phase ac output which is converted to dc by bridge
rectifier.
2) During windy conditions when batteries are fully charged excess power is
automatically switched to the diversion load.
Item Number: 175HVT
List Price: $7,325.00
Your Price: $6,622.00
Shipping Weight: 165 lbs.
This item normally ships 5-10 business days after order acceptance.
Due to weight and size this item must be shipped by common carrier, freight
collect. Shipping charges to the continental US for this item when ordered alone can
range from $100 to $200 depending on destination. Checkout screen will show $0 since
this needs to be paid directly to the driver upon delivery.
