Cummins brand power generation systems are the result of
integrated design and manufacturing intended to satisfy your requirements for rated
performance and reliable and efficient operation. For either standby or prime power,
Cummins produces a full line of diesel and spark-ignited generator sets, transfer switches,
paralleling switchgear, smart controls, sound attenuated housings, and installation
accessories. All products are designed and manufactured to work as a total,
integrated system. These power systems are backed by a worldwide network of
distributors and service branches plus a comprehensive warranty program. All systems
are subjected to prototype testing simulating rigorous real-world environments and meet
Cummins Total Quality System requirements. Cummins' manufacturing processes are ISO
9001 registered.
Extreme weather, construction activities, and countless other
unforeseen power complications can suddenly interrupt the electrical service you depend on
to continue your operations and activities. You can have complete peace of mind,
knowing that during a power outage your Cummins Standby System will activate to
provide the power necessary to run vital systems.
Fully automatic, the system detects an interruption of electrical
service and engages to power your essential systems. When utility power is restored,
the standby system shuts down, automatically resetting itself. The entire power
transfer cycle is fully automatic -- it is not necessary to be present for this system to
work!

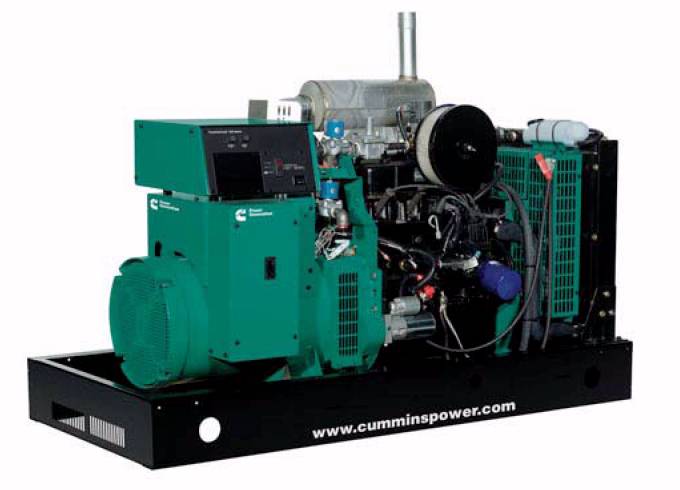

Cummins Spark-Ignited Generator Sets
Cummins spark-ignited generator sets, 6.0 to 150 kW (and larger), are
designed for applications that call for vapor fuel options as a result of fuel
containment, economic and emissions considerations, or compliance with local codes.
These generator sets have fuel systems for both natural gas and propane, making them a
convenient choice for a variety of health care facilities and retail business.
Installation and hookup to the fuel source lines is both basic and convenient. As
with Cummins diesel generator sets, a complete selection of voltages, accessories, and
control options are available for customizing to your specific needs. If your
requirements differ from those described here, click to request a
custom quote.
Cummins Features
Compare these features with those offered on competitor's models.
Only Cummins has them all. Click here for more about the
Cummins
brand and why it is worth spending a little more.
* Runs on propane (LP) or natural gas.
* Commercial grade alternator with skewed laminations designed for
low sine wave total
harmonic distortion (THD) and is safe for sensitive electronic loads.
Copper windings and
double sealed pre-lubricated ball bearings.
* Engine has high motor starting reserve capability.
* Advanced microprocessor control manages generator set operation,
fault detection
and service diagnostics, many functions monitored. Service
communications port for laptop
computer diagnosis.

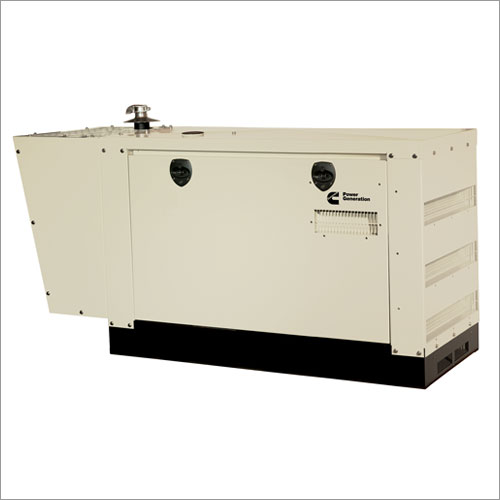

* Sound attenuated drip-proof aluminum enclosure designed
to withstand 150 mph winds and coastal
corrosion with easy service
access.
* Cast iron cylinder liners or blocks.
* Electronic ignition.
* Electronic governor.
* Full pressure lubrication with high capacity sump and spin-on oil
filter.
* Dual element air cleaner.
* Optional extended warranty beyond the standard 1 year
period.
Standard Bill of Material
20GGMA Genset-Spark
Ign,60Hz,20kW
A331-2 Duty Rating-Standby Power
L090-2 Listing-UL 2200
C002-2 Fuel System-LP Vapor (6110) or Nat Gas (6111)
F216-2 Aluminum Enclosure - Sound Attenuated - ONLY 65dba @ 23 feet, 150mph
rated
R104-2 Voltage-120/240,1 Phase,3 Wire
B267-2 Alternator-60Hz, 4 Ld, Single Phase,125C
H680-2 SET CONTROL-Microprocessor Power Command Control 1301
B240-2 Exciter/Regulator-Torque Match
A366-2 Engine Governor-Electronic, Isochronous Only
KP80-2 Circuit Breaker Or Entrance Box-Right Side Only
KT20-2 CircuitBreaker-90A,Right,2P,240VAC,80%,UL
F207-2 Wind Rating-150MPH,Aluminum Housing
F179-2 Skidbase-Housing Ready
E125-2 Engine Cooling-High Ambient Air Temperature
E089-2 Extension-Engine Coolant Drain
H036-2 Coolant Heater-120 Volt Ac, Single Phase
D041-2 Engine Air Cleaner-Normal Duty
L028-2 Genset Warranty-1 Year Base
A322-2 Packing-Skid, Poly Bag
F065-2 Rack-Battery
H268-2 Extension-Oil Drain
CP01-2 Common Parts Listing
SPEC-A Product Revision - A
77915 3/4" x 12" Stainless Steel Flexible Fuel Line
Options (order using drop down menus below)
· 5 Year Comprehensive Warranty on Genset. Extends the 1st year through 5 years on the
genset. After the 1st year, the coolant heater is not covered.
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Automatic transfer switch RLCM-200,
ZTX20RM4.
3/4" fuel strainer 0149-0558, solenoid valve
0307-0834.
Item Number: 20GGMA
Your Price: $10,140.00
Shipping Weight: 1500 lbs.
This item normally ships out in 4-6 weeks after order acceptance. Click
here for the latest lead time for this product.
Call us if you will NOT be paying with a credit card.
