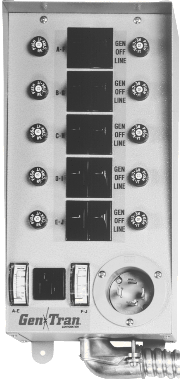

Manual Transfer Switch
surface mount
Easy to install and operate, connects portable generator to residential load
center. Allows manual transfer of individual loads to prevent overloading generator.
Each individual circuit can be transferred separately and only as needed.
Now required by Article 702.6 of the 2002 National Electric Code to prevent inadvertent backfeeding of electric power from generator
into utility system which can be a safety hazard.
Up to 10 single-pole 120 volt circuits or 5 double-pole 240 volt circuits, 60
amps maximum combined load at 125 volts or 30 amps maximum combined load at 250 volts.
Each circuit provided with non-defeatable (break-before-make) double throw switch
protected with a resettable circuit breaker. Factory configured with four 20 amp breakers ganged with two handle ties, and six 15 amp
breakers. Note that the 20 amp breakers MUST be connected to 20 amp
circuits in your building panel. Twist lock male L1430P
power inlet receptacle for cable connection to generator, 7500 watt maximum. Dual
watt meters provided for balancing generator load with a convenience outlet that is
"live" under generator power. The 1 x 18 inch flexible conduit is
pre-wired for easy connection to existing residential load center panel. Installs in
less than an hour, without pulling the electric meter or installing a sub-panel.
Suitable only for circuits protected with up to 20 amp breakers or fuses. UL listed
and CSA certified. NEMA 1 indoor surface mount enclosure. Exclusive Gen/Tran®
24 month warranty. See Gen/Tran® Instruction Book.
Made in USA
Specifications
| Total Capacity |
7500 watts, 30 amps |
| Single Pole Circuits - 120VAC |
(6) 15 amp |
| Double Pole Circuits - 240VAC |
(2) 20 amp with handle tie |
| Generator Connection |
NEMA L1430P
male inlet plug-in |
| Generator Load Watt Meters |
Yes |
| Enclosure Type |
indoor surface mounted |
| Convenience Receptacle |
Yes |
| UL Listing |
UL98 (this product should be installed
before the next NEC is issued in 2005) |
| UL Short Circuit Withstand Rating |
1,000 amps |
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Cordset for connecting generator RJB10410
or RJB10425Y
Straight blade plug modification for generators without twist-lock receptacle MOD6-20P
Item Number: 302110-20
List Price: $495.95
Your Price: $350.00 $269.00
Shipping Weight: 13 lbs.
Dimensions H x W x D (inches): 13-3/4 x 7 x 4-1/2
