click on thumbnail
image above to enlarge

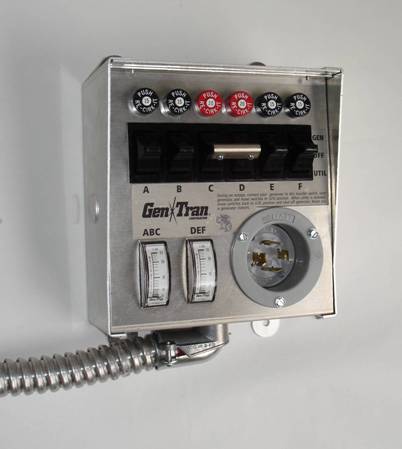

(similar 20216V shown)
Manual Transfer Switch
surface mount
30A, 120/240V, 7500W max
Easy to install and operate, connects portable generator to residential load
center. Allows manual transfer of individual loads to prevent overloading generator.
Each individual circuit can be transferred separately and only as needed.
Transfer switches are required by National Electric Code to prevent inadvertent backfeeding of electric power from generator
into utility system which can be a safety hazard.
6 single-pole 120 volt circuits or 4 single-pole 120 volt circuits plus 1
double-pole 240 volt circuit, 15 amps maximum per circuit, 60 amps maximum combined load
at 125 volts or 30 amps maximum combined load at 250 volts. Each circuit provided
with non-defeatible (break-before-make) double throw switch protected with a resettable
circuit breaker. Twist lock male L1430P power inlet
receptacle for cable connection to generator, 7500 watt maximum. Can
also be hard-wired to a remotely mounted generator inlet box. (Knockouts
provided in side walls of switch with an inlet cover for use when hard-wiring
to generator.) Dual watt meters
provided for monitoring and balancing generator load. The 3/4 x 18 inch flexible conduit is pre-wired for easy
connection to existing residential load center panel. Installs in less than an hour,
without pulling the electric meter or installing a sub-panel. Suitable only for
circuits protected with up to 20 amp breakers or fuses. Manufactured
from UL listed and UL Recognized components but does not carry the UL Listing
label. NEMA 1 indoor surface mount enclosure. See Gen/Tran® Instruction Book
for similar switches. This switch is not UL Listed.
Made in USA
Specifications
| Total Capacity |
7500 watts, 30 amps |
| Single Pole Circuits - 120VAC |
(4) 15 amp |
| Double Pole Circuits - 240VAC |
(1) 20 amp with handle tie |
| Generator Connection |
NEMA L1430P
male inlet plug-in |
| Generator Load Watt Meters |
Yes |
| Enclosure Type |
indoor surface mounted |
| Convenience Receptacle |
No |
| Design Standard |
Designed and manufactured to the former UL98
standard. |
| Short Circuit Withstand Rating |
1,000 amps |
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Cordset for connecting generator RJB10410
or RJB10425
Straight blade plug modification for generators without twist-lock receptacle MOD6-20P
Power Inlet box for remote generator plug-in 14302
or 14301.
Item Number: 30216V
Your Price: $162.00
Shipping Weight: 10 lbs.
Dimensions H x W x D (inches): 7-1/2 x 7 x 4-1/2
This item normally ships 1 week after order acceptance.
