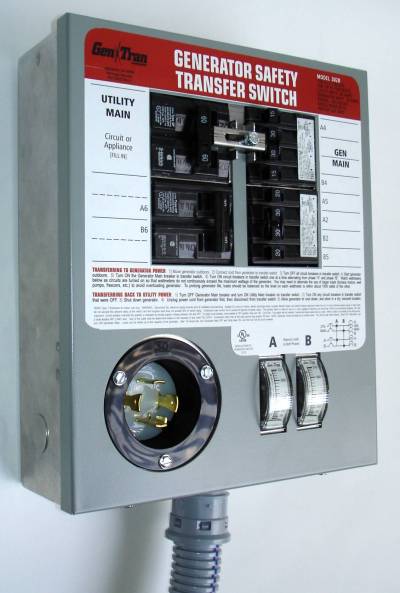

Manual Transfer Panel
30A maximum, 10 circuits max
8 circuits included
This prewired generator transfer switch is ideal for powering essential appliances with a portable generator during a power outage. It accommodates 8 to 10 household circuits, and can be used with any portable generator up to 7500 watts (continuous). Ideal for powering your furnace blower (gas only), refrigerator and kitchen circuits, well pump, water heater, lights, and television. If your needs change, you can easily expand this transfer switch to up to 10 circuits just by adding more circuit breakers. The enclosure can be surface mounted indoors, and allows hardwired or plug-in generator connections. Prewiring means it's faster to install! Because it was designed with off-the-shelf circuit breakers you don't have to search high and low for replacements, and your installer can reconfigure the breaker combinations to suit your family's needs. This transfer switch includes a
NEMA L1430 male power inlet and dual wattmeters to help you balance generator loads to prolong generator life. Includes two 15-amp 1-pole breakers, two 20-amp 1-pole breakers, one 2-pole 20 amp breaker and one 2-pole 30 amp breaker. A 2-pole 60-amp main breaker must be installed in existing load center (not included). UL 1008 Listed. Protected by US Patent 6,861,596 B2 and other patents pending. Dimensions: 9.25 W x 11.125H x 3.375 D. Optional Flush Mounting Plate available (sold separately).
Configuration
| Number of branch circuits provided |
8 |
Maximum number of branch circuits
(using 1/2 height breakers) |
10 |
Empty circuit spaces
(as provided from factory) |
0 |
| Maximum current at 240VAC |
30 amps |
| Maximum generator size |
7,500 watts |
| Branch breakers included |
(2) 15 amp, 1 pole
(2) 20 amp, 1 pole
(1) 20 amp, 2 pole
(1) 30 amp, 2 pole |
| Main breaker required in load center (not
included) |
60 amp, 2 pole |
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Flush Mounting Plate 50329
Cordset for connecting generator RJB10410
or RJB10425
Inlet box 1430
Item Number: 3028
Your Price: $265.00
Shipping Weight: 15 lbs.
