Page last updated Oct 20, 2021 @ 10:10pm
40303
(supersedes 40234, 40210)
DISCONTINUED AND SUPERSEDED BY 40337
Click thumbnail image above to enlarge

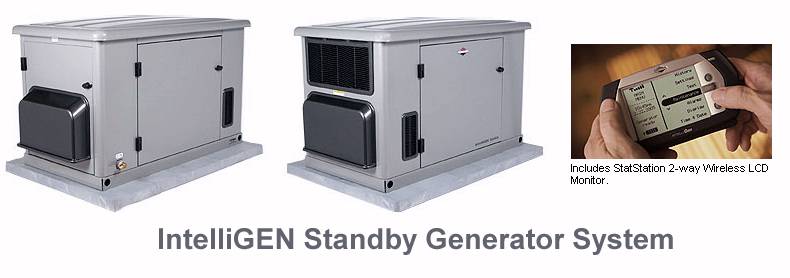

Standby Generator Set INT25
Briggs & Stratton® IntelliGEN™ Home Standby
15000W running, 18500W surge on LP
14000W running, 17000W surge on NG
(see below for choice of transfer switches)
THE IntelliGEN™ Difference - The first line of standby generators that intelligently manages loading so that it is like having typical generator 60% larger.
Power More For Less - Advanced computer controls manage the same essential and high wattage items as a
much larger liquid cooled generator.
Maximum Fuel Economy - IntelliGEN’s smart use of power results in up to 50% less fuel consumption.
Space-Saving Design - Compact, efficient design allows for location flexibility and lower installation costs.
Exclusive Overload Protection - Advanced controls prevent generator overload due to unmanaged power demand.
Smart Home Compatible - Provides clean, safe power for other smart home appliances and sensitive electronics.
Premium Features for maximum efficiency
IntelliGEN™ Power Management System - Computer-Controlled Power management for maximum efficiency, comfort & control.
Fully Automatic - Advanced electronics will detect a utility power outage and automatically start the generator whether you are home or away.
Continuous Fuel Supply - A permanent connection to natural gas or propane delivers uninterrupted performance with no messy gasoline storage and refueling.
Contemporary, Space-Saving Design - Offers a compact yet functional design for location flexibility and an attractive, subtle yard presence.
StatStation™ Power Monitoring System - A wireless, hand-held LCD monitor that relays advanced diagnostic information from the convenience of home.
Quiet Operation - Engineered air passages, an automotive-style exhaust system and acoustic foam dampeners ensure quiet operation. (65dB @ 7 meters).
Computer Friendly Power - Advanced alternator technology provides safe and stable power for computers and other sensitive electronics.
Turn Key Extras - Each IntelliGEN Series system includes an automotive battery/battery charger, hour meter, and installation pad. The engine also comes pre-filled with synthetic oil and is broken in at the factory, saving you time &
money.
Premium Warranty - 4 year limited - your guarantee of quality & performance.
Legendary Service & Support – From professional sizing and delivery to installation & service, trust the proven experts at Briggs & Stratton for complete peace of mind.
Specifications
|
||||
Engine Make | Premium OHV Briggs & Stratton Vanguard V-Twin | |||
Engine Type | 4-cycle, air cooled, with full pressure lubrication | |||
Engine Displacement | 895cc | |||
Sound Level | 65dbA @ 7 meters | |||
AC Output Voltage | 120/240VAC, 1 phase | |||
AC Output Frequency | 60Hz | |||
AC Output Power - running/surge | 15,000 watts running/18,500 surge
on LP 14,000 watts running/17,000 surge on NG |
|||
AC Output Current - running | 125/62 amps running on LP 116/58 amps running on NG |
|||
Alternator | brushless low-maintenance alternator | |||
Battery | 12V (not included, purchase locally at time of install) | |||
Control System
*Remote StatStation™ Diagnostic Alerts |
- automatic remote starting - oil high temperature* - low oil pressure* - overcrank fail to start* - overspeed* - transfer switch fault* |
- low AC voltage* - low AC frequency* - low battery voltage* - running time meter - AC circuit breaker - DC control fuse |
||
Cold weather options (thermostatically controlled) | - oil warmer - battery warmer |
|||
Fuel Consumption - LP Vapor (11-14 in.W.C. pressure at full load req'd) |
66 cu.ft./1.65 gal/hr at half load | |||
Fuel Consumption - natural gas (5-7 in.W.C. pressure at full load req'd) |
140 cu.ft./126,000 BTU/h at half load | |||
Dimensions L x W x H | 49.5" x 37.8" x 31.6" | |||
Weight | 570 lbs. | |||
Warranty | 4 years consumer, no warranty for commercial or industrial use | |||
|
||||
Model | 71055 | 71045 | 71038 | 71046 |
Circuits | 1 (whole house) |
1 (whole house) |
1 (whole house) |
1 (whole house) |
Maximum Amps | 100 | 100 | 200 | 200 |
Service Entrance Rated (with disconnect) | no | yes | no | yes |
Voltage | 120/240VAC | 120/240VAC | 120/240VAC | 120/240VAC |
Air Conditioning Control
Module (ACCM) normally closed contacts for controlling A/C units via thermostat |
2 | 2 | 2 | 2 |
Enclosure | NEMA 3R indoor or outdoor |
NEMA 3R indoor or outdoor |
NEMA 3R indoor or outdoor |
NEMA 3R indoor or outdoor |
Dimensions L x W x H | 12" x 6" x 16" | 14" x 6" x 22" | 16" x 7" x 22" | 16" x 7" x 30" |
Weight | 24 lbs. | 37 lbs. | 38 lbs. | 64 lbs. |

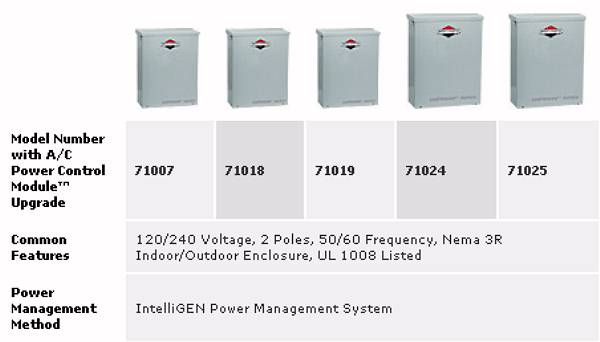

Automatic Transfer Switches
Fully Automatic
All of our switches monitor utility and generator voltages and will
automatically connect to the appropriate source of power. The 100 amp
and 200 amp switches are capable of "whole house" power transfer in
residential and small business applications. For whole house
applications the switch amp rating must equal or exceed the utility service
rating.
Safety Features
All switch models are solenoid-operated from utility or generator inputs and
contain electrical interlock switches to eliminate the possibility of
dangerous back feed to utility during an outage.
Pick
options using dropdown menus before pressing add to cart button...
1-Select proper switch for your application. Optional built-in service entrance disconnect eliminates
need
for external disconnect when installing switch directly downstream of utility meter.
Reduces installation
time and cost of extra external disconnect. ACCM will
control up to two A/C units or heat pumps by
wiring these contacts into thermostat circuit.
2-Select optional remote StatStation for displaying genset conditions (soon to
be discontinued)
3-Select Command Central when more than two loads must be controlled.
Provides four normally closed
control contacts for controlling up to four A/C units or heat
pumps by wiring these contacts into thermostat
circuits. Also provides four 50A 240V contactors for
controlling four other large loads such as electric
water heater, electric range, electric dryer, etc.
4-Select cold weather package for reliable
starting below freezing.
5-Optional maintenance kit. Includes oil, filters, plugs, etc.
6-Select delivery method.
Are YOU ready for the next power outage?
