EM7 DUAL MODE

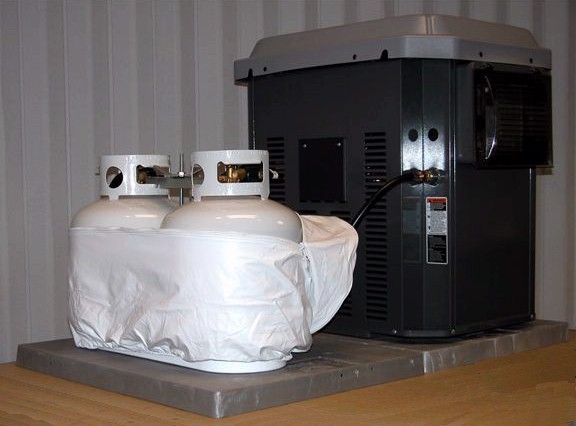

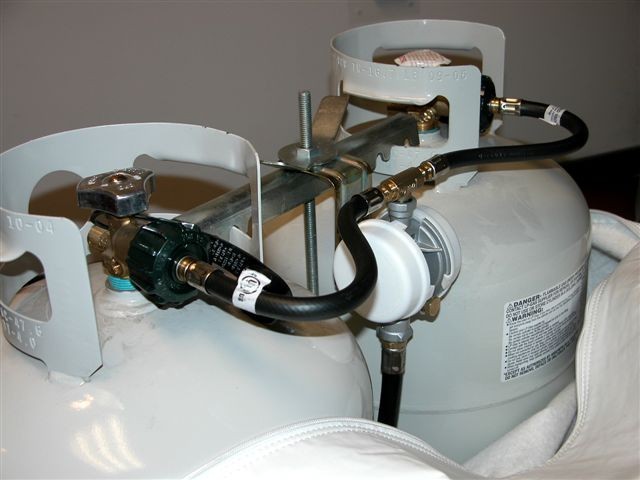

|Literature||Initial setup with portable LP tanks||Outlet panel||Hose connections to portable tanks||Initial setup with portable LP tanks||71014 Transfer Switch Kit|
Click thumbnail image above to enlarge
Standby Generator Set
Briggs & Stratton® Home Standby
7000W rated, 10500W surge on LP
Runs on two gas grill tanks for 12 hours!
Need backup Power NOW but can't install an automatic standby generator? This dual-mode generator is the unit for you!
This generator is similar to the automatic standby model but is shipped with a receptacle panel pre-installed plus a propane quick connect kit. Just purchase two 20 lbs propane gas grill tanks, connect the hoses, start the unit and you have power! Since it is not permanently installed or wired you normally will not require a permit or an electrician. Later you can provide natural gas or piped propane.
The 40248 Home Generator System provides protection from power outages. Electrical power is restored in minutes with the push of a button. Assembled in the USA. Vanguard engine is made in JAPAN.
7,000 watt system provides enough power to run essential items in your home, for minimal disruption to everyday activities.
Briggs & Stratton OHV Engine
Quality engine specially designed for long-life operation on NG (natural gas) or LP (liquified propane vapor). These fuels are readily available, clean and environmentally friendly.
Heavy-gauge metal exterior with corrosion-resistant powder-coat painted sheet metal. Comes with polymer installation pad -- no need for concrete pad saves you installation time and money.
Built-in Diagnostic Center with remote
status and diagnostic panel
Alerts you to any possible problems with the generator.
Panels easily remove for service access.
Supported by 3,000 generator service dealers and over 30,000 engine dealers worldwide, this system is backed by an extensive and capable sales & service network.
2 year limited warranty
Note that this generator
cannot be hard wired or plugged into most transfer switches. It has GFI
protection on all outlets and must be connected using extension cords or with
the optional #71014 switch below.
|Engine Make||Briggs & Stratton Extended Life Series OHV|
|Engine Type||4-cycle, air cooled|
|Engine Displacement||504 cc|
|Sound Level||81dbA @ 7 meters|
|AC Output Voltage||120/240VAC ±10V, 1 phase|
|AC Output Frequency||60Hz|
|AC Output Current - rated||58.3/29.2 amps rated on LP
50.0/25.0 amps rated on NG
|Battery||12V (not included, purchase locally at time of install)|
|Control System||- automatic remote starting
- low oil pressure
- overcrank fail to start
- low frequency
|- low AC voltage
- no battery voltage
- AC circuit breaker
- DC control fuse
|Remote Indications||- Remote LED panel included
- contacts provided for remote alarms/indications
|Cold weather options||- oil warmer
- battery warmer
|Fuel Consumption - LP Vapor
(11-14 in.W.C. pressure at full load req'd)
50% load: 33 cu.ft/hr (two 20 lb gas grill tanks last
for 12 hours)
full load: 56 cu.ft/hr 140,000 Btu/h at full load
|Fuel Consumption - natural gas
(5-7 in.W.C. pressure at full load req'd)
50% load: 80 cu.ft/hr
full load: 137 cu.ft/hr 137,000 Btu/h at full load
(left click to view, right click to save)
|Dimensions L x W x H||30-1/2" x 22-1/2" x 32-1/2"|
|Transfer Switch Panel (indoor NEMA 1)||120/240V 30A max
total with 9 individual branch circuits:
(6) single pole 15A, (2) single pole 20A, (1) double pole 30A breakers
|Inlet Box (outdoor NEMA 3R)||30A 120/240V with male NEMA L1430 inlet|
|Cordset||120/240V 30A max 10' long extra flexible|
|Plugs for cord (2 included)||20A NEMA L1420P and 30A NEMA L1430P|
Item Number: 40248
Price last updated 11/10/2012
Shipping Weight: 280 lbs.
This item ships with free ground freight to the USA 48 states.
This item normally ships in approximately 1-2 weeks or less.
Pick options using dropdown menus before pressing button...
1- Select optional manual transfer switch.
2- Select engine block/oil warmer for reliable starting below freezing.
3- Select battery warmer for prolonged cold weather.
4- Optional maintenance kit. Includes oil, filters, plugs, etc.
5- Select delivery method.
