This genset is suitable for larger residences
and commercial businesses having 120/240VAC single phase electrical services
of 300 amps, 400 amps and more. Also suitable for 3 phase services.
Cummins brand power generation systems are the result of
integrated design and manufacturing intended to satisfy your requirements for rated
performance and reliable and efficient operation. For either standby or prime power,
Cummins produces a full line of diesel and spark-ignited generator sets, transfer switches,
paralleling switchgear, smart controls, sound attenuated housings, and installation
accessories. All products are designed and manufactured to work as a total,
integrated system. These power systems are backed by a worldwide network of
distributors and service branches plus a comprehensive warranty program. All systems
are subjected to prototype testing simulating rigorous real-world environments and meet
Cummins Total Quality System requirements. Cummins' manufacturing processes are ISO
9001 registered.
Extreme weather, construction activities, and countless other
unforeseen power complications can suddenly interrupt the electrical service you depend on
to continue your operations and activities. You can have complete peace of mind,
knowing that during a power outage your Cummins Standby System will activate to
provide the power necessary to run vital systems.
Fully automatic, the system detects an interruption of electrical
service and engages to power your essential systems. When utility power is restored,
the standby system shuts down, automatically resetting itself. The entire power
transfer cycle is fully automatic -- it is not necessary to be present for this system to
work!

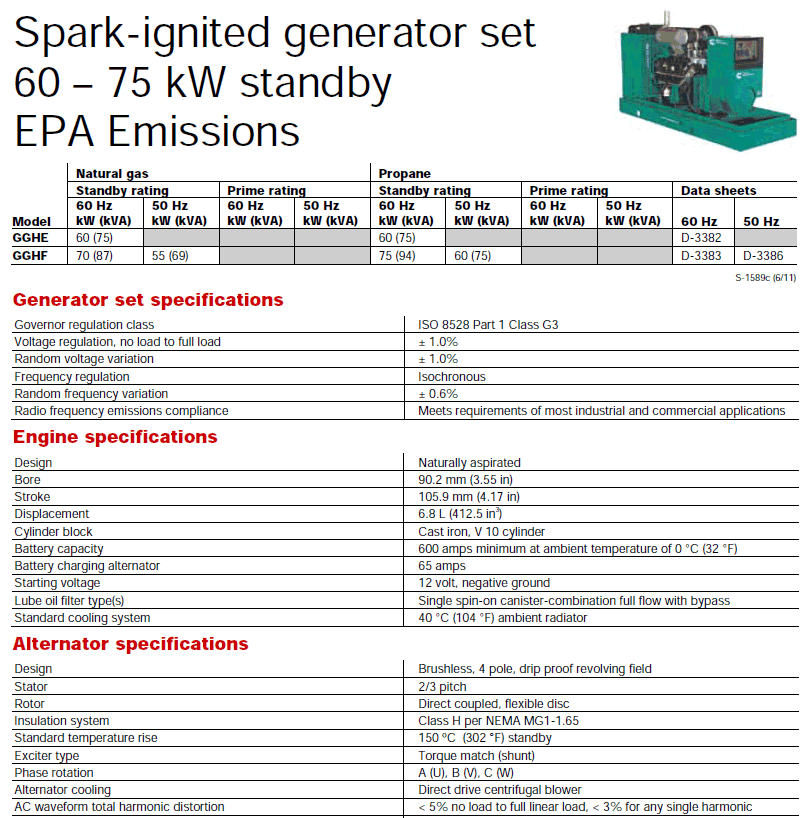

Cummins Spark-Ignited Generator Sets
Cummins spark-ignited generator sets, 6.0 to 150 kW (and larger), are
designed for applications that call for vapor fuel options as a result of fuel
containment, economic and emissions considerations, or compliance with local codes.
These generator sets have fuel systems for both natural gas and propane, making them a
convenient choice for a variety of health care facilities and retail business.
Installation and hookup to the fuel source lines is both basic and convenient. As
with Cummins diesel generator sets, a complete selection of voltages, accessories, and
control options are available for customizing to your specific needs. If your
requirements differ from those described here, click to request a
custom quote.
Cummins Features
Compare these features with those offered on competitor's models.
Only Cummins has them all. Click here for more about the
Cummins
brand and why it is worth spending a little more.
* Runs on propane (LP) or natural gas.
* Commercial grade alternator with skewed laminations designed for
low sine wave total
harmonic distortion (THD) and is safe for sensitive electronic loads.
Copper windings and
double sealed pre-lubricated ball bearings.
* Engine has high motor starting reserve capability.
* Advanced microprocessor control manages generator set operation,
fault detection
and service diagnostics, many functions monitored. Service
communications port for laptop
computer diagnosis.
* Standard sound attenuated drip-proof enclosure designed for easy service
access.
* Optional additional sound attenuation available to 65-70dbA at 7 meters.
* Cast iron cylinder liners or blocks.
* Electronic ignition.
* Electronic governor.
* Full pressure lubrication with high capacity sump and spin-on oil
filter.
* Dual element air cleaner.
* Multiple control system options including those that are NFPA 110
compliant.
* Dual electro-deposition coating system for high resistance to
scratching, corrosion,
and paint fading.
* Optional extended warranty beyond the standard 1 year
period.
Standard Bill of Material

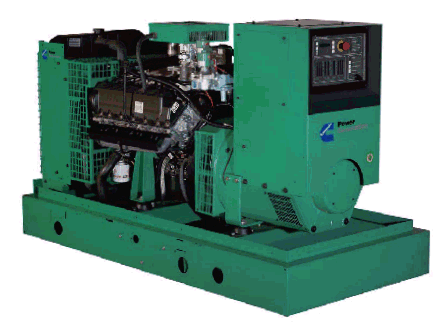

60GGHE Cummins Genset-Spark Ign,60Hz,60kW, 60,000 watts or 250 amps @ 240v
A331-2 Duty Rating-Standby Power
L090-2 LISTING-UL2200
C002-2 Fuel System-Natural Gas or LP Vapor
HOUSING Weather Protective Enclosure with Critical Muffler mounted inside housing.
Stage One Sound Attenuated and Stage Two Sound Attenuated Enclosures are
available. See below. Cummins Green E-Coat finish, the highest quality, most
durable paint finish in the industry is standard. Dba level @ 23 feet = 83.
Sound Attenuated Enclosures are available. See below.
R104-2 Voltage-120/240, Single Phase 4 lead alternator 60hz, Single phase,
105C
PCC2100 Power Command 2100 control is a digital control that offers a broad range of
features and benefits, such as easy to use operator interfaces, tons of
information and greatly enhanced reliability. Though it offers many more features
than the analog Detector 12 Control, it's actually less complicated to use.
This digital control allows for constant monitoring of the engine and alternator
and in most cases will troubleshoot a problem, should one ever arise.
B240-2 Exciter/Regulator-Torque Match
A366-2 Engine Governor-Electronic, Isochronous Only - Maintains tight frequency and
voltage regulation, critical for sensitive electronic loads.
EXTEN Oil and Coolant Drain Extensions - Makes maintenance intervals quicker and easier
and will save owner money over time.
KM65-2 Circuit Breaker Mounting-Single Brkr, LeftOfGenEnd
KB24-2 Circuit Breaker-300a,2pole,240v,Thermo-Magnetic,Ul
LOWCLNT Low coolant shutdown will protect the engine from running with low coolant.
E082-2 Engine Cooling-Radiator, 40C Ambient
H036-2 Coolant Heater-120 Volt Ac, Single Phase - This AC heater will protect engine
from wear and tear from cold weather starts, as it maintains a warm temperature
on the block.
D041-2 Engine Air Cleaner-Normal Duty
WARR Warranty-1 Year - Coverage includes parts, labor, travel time and mileage.
A322-2 Packing-Skid, Poly Bag
F065-2 Rack-Battery
FLEX Stainless Steel Flexible Fuel Line-13" Long-1-1/4" NPT Male - Connects directly
to fuel inlet of genset.
Options (order using drop down menus below)
· Upgrade to Stage One Sound Attenuated Enclosure.
Decrease dba level to 77 @ 23 feet.
· Upgrade to Stage Two Sound Attenuated Enclosure - Most quiet enclosure available from
Cummins. Decrease dba level to 68.4 @ 23 feet.
· 12 lead full single phase output alternator, 105C temp rise. Advantages over standard
4 lead include more motor starting kva, less harmonics distortion from no load to full
load and the advantage of being able to reconnect the genset to any 3 phase voltage.
If the set should ever be relocated or sold, being able to reconnect to a 3 phase
voltage increases resell value.
· 12 lead full single phase output alternator, 125C temp rise. All the advantages of the
105C temp rise alternator option above, but has a higher temp rise. Lower temp rise
alternators offer the most motor starting kva with the least harmonics distortion from
no load to full load.
· 5 Year Comprehensive Warranty. Extends the 1 year to a full 5 years. Coolant heater
is not covered after 1 year.
· Gas Pressure/Volume: Minimum Operating Pressure = 7 inches water column.
Maximum Operating Pressure = 13.6 inches water column.
· BTUs @ full load = Natural Gas = 789,000 BTUs. Propane = 787,508 BTUs.
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Automatic transfer switch ATC3C2-200,
ATC3C2-320, ATC3C2-400, ZTX20RM4, ZTX30RM4,
ZTX40RM4, OTEC400
(for 400 amp service you can use (2) 200A or
(1) 400A switch).
Click here for complete listing of automatic transfer
switches.
Natural gas 1-1/4" fuel strainer 0149-0624, solenoid valve
0307-0837.
Item Number: 60GGHE
Your Price: $15,558.00
Shipping Weight: 3000 lbs.
This item normally ships out in 4-6 weeks after order acceptance. Click
here for the latest lead time for this product.
Call us if you will NOT be paying with a credit card.
