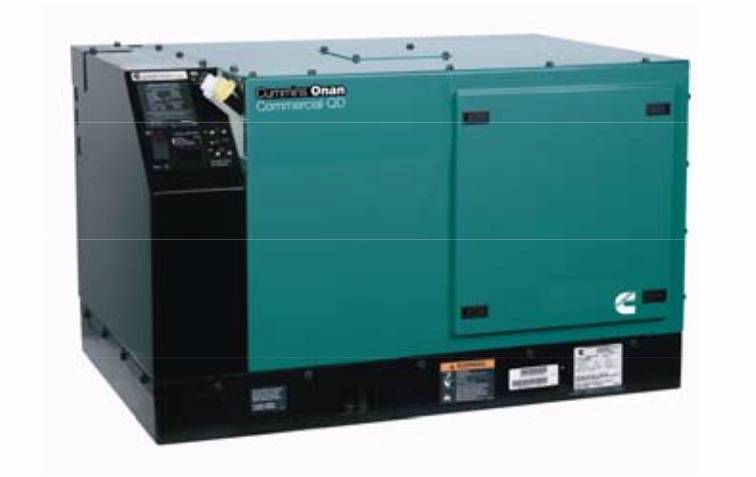

7.5HDKAT/41934
Generator Set
Commercial Mobile Quiet Diesel
7500W rated
This brand of GenSets have powered RVs since they first hit the road. A variety of worry-free gasoline, LP and diesel gensets are available, designed specifically for RV use. Extensive testing, both in the lab and on the road, ensures long-lasting performance backed by one of the industry's best warranties. Plus, you'll find certified parts and service are never far away.
When you purchase this brand of GenSet, you'll be among more than 1.2 million RV owners who depend on them for quiet power. In fact, these exceptionally quiet RV gensets can be found aboard eight out of ten RVs with generators. Discover for yourself the quality, selection and service that have made these RV generators the first choice for convenient, reliable gensets.
Features
Compare these features with those offered on competitor's models. It is the most popular brand of RV generator.
Diesel fueled, 60Hz, single phase, 120 volt model available. Where noise and vibration are the primary concern, the Quiet Diesel is a breakthrough in state-of-the-art generator sets. Dramatically lower noise is achieved through variable speed operation, and a sound attenuated enclosure with integrated muffler. Side or bottom service and maintenance access; standard hourmeter, pure sine wave AC output, single switch start with microprocessor timed pre-heat sequence, and water resistant control switches are standard equipment for all commercial applications.
Specifications
| Engine Make | Kubota 722 |
| Engine Type | 4-cycle, liquid-cooled, 3 cylinder, inline vertical diesel |
| Engine Compression Ratio | 23 to 1 |
| Engine Displacement | 43.88 cu.in./719 cc |
| Engine Power (maximum) | 16.6 bhp at 3600 rpm |
| Engine Speed | 3600 rpm at 60Hz variable |
| Cooling System Capacity | 1 gal (4.2 L) |
| Fuel System | Bosch MD type fuel injection pump |
| Fuel Consumption (60Hz) | 0% load: 0.21 gph (0.79 L/hr) 50% load: 0.56 gph (2.12 L/hr) full load: 0.96 gph (3.63 L/hr) |
| Lube Oil Capacity | 2.8 qts. (2.61L) |
| Sound Level at 10 ft. | 71dbA before installation at full load 67dbA before installation at half load 64dbA before installation at no load |
| AC Output Voltage | 120VAC, 1 phase, ±1% NL to FL, ±2% constant load |
| AC Output Frequency | 60Hz, ±0% NL to FL, ±0.5% constant load |
| AC Output Current | 62.5 amps |
| AC Output Power at 104F(40C) and 0-500 ft elevation with No. 2 diesel fuel | 7.5kW Total power available will decrease 3.5% for each 1000 ft above 500 ft and 1% for each 10F(5.5C) increase in ambient temperature above 104F(40C). |
| Alternator | permanent magnet, brushless |
| Voltage Regulator | no exciter |
| Dimensions L x W x H | 36.35" x 24.23" x 22.28" |
| Weight | 420 lbs. |
Limited manufacturer's commercial warranty is standard on GenSet for one year or 1000 hours, whichever occurs first. During this period virtually everything is covered except routine maintenance In addition it also includes a free 90-day adjustment on all new gensets.
Options and accessories are listed in the image at the top of this page. If you need to order any options or accessories with this generator just provide the part number or description in comments at the bottom of the order checkout screen. We will add item(s) to your order and show a price discounted 5% below list in the order acknowledgment sent by email.
