7215-MS

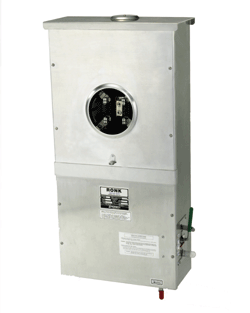

click on thumbnail
image above to enlarge

200A Manual Transfer Switch
with Power Company Meter Socket
250V Single Phase 2 pole
Aluminum NEMA 3R Outdoor Enclosure

For use with standby generators to transfer loads between utility power and auxiliary power.  Two position plus center off, with quick-make, quick-break contacts designed to minimize contact arcing and prolong contact life.  Aluminum NEMA 3R outdoor enclosure for wall mounting.  Ample wiring space.  Rated for 200 amps at 250 volts.  Lugs for aluminum and copper wire included.  UL listed.  Manually-operated switch suitable for use in accordance with article 702 of the National Electric Code, ANSI/NFPA 70.  This switch is suitable for use on a circuit capable of delivering not more than 10,000 amperes RMS symmetrical, 250 volts maximum.   Made in USA

This switch is supplied with third position (OFF), is UL Listed and rated "Suitable only for Use as Service Entrance Equipment."  Options include: overhead service, underground service, or side-by-side construction.  Power company meter socked comes with horn or lever bypass.



Specs

Continuous Current Rating 200 amps (100% rating)
Voltage Rating 250Vac
Short-Circuit Withstand 10,000 amps
Wire Range - Service Line: 350MCM to #4 CU-AL lay-in terminal
Neutral: 250MCM to #6 CU-AL one-hole lug
Wire Range - Generator 250MCM to #6 awg CU-AL
one-hole lug
Wire Range - Load 250MCM to #6 awg CU-AL
four-hole lug
Wire Range - Neutral (gen & load) 350MCM to #6 awg CU-AL
four-hole bar
Motor HP Rating none
Dimensions for overhead service switch
(meter in upper compartment, switch in lower compartment)
18.75" W x 8.56" D x 43" H
add 3" for side mounted handle
Dimensions for underground service switch
(meter in upper compartment, switch in lower compartment)
24.75" W x 8.56" D x 43" H
add 3" for side mounted handle
Dimensions for side by side switch
(meter in left compartment, switch in right compartment)
31.75" W x 8.56" D x 30.50" H
add 3" for side mounted handle
    Use copper or aluminum wire rated for 75C.



Models Available

7215-MSH-OH 200A 1phase 2pole horn bypass meter socket overhead service
7215-MSL-OH 200A 1phase 2pole lever bypass meter socket overhead service
7215-MSH-UG 200A 1phase 2pole horn bypass meter socket underground service
7215-MSL-UG 200A 1phase 2pole lever bypass meter socket underground service

The meter bypass features allow the power company to jumper out the meter and remove it without deenergizing the electric service to the building or residence.  The horn bypass is simply a set of copper pads where live jumpers can be installed.  Lever bypass is a small lever-operated switch that performs the same function.  Both are located inside the meter compartment next to the meter base.





Customers who purchased this product also ordered:
(click underlined words to see product pages)
Power inlet PK30, PK50, 300134 for plugging in generator cord or cables
Generator metering
E140132-5, MB75, MB125, METERPNL4



horn bypass meter socket lever bypass meter socket horn bypass meter socket lever bypass meter socket
overhead service overhead service underground service underground service

Item Number: 7215-MSH-OH
Price: $1,034
Price last updated 12/30/2008
Shipping Weight: 62 lbs.
This item normally ships in approximately 1 week or less.

Item Number: 7215-MSL-OH
Price: $1,160
Price last updated 12/30/2008
Shipping Weight: 62 lbs.
This item normally ships in approximately 1 week or less.

Item Number: 7215-MSH-UG
Price: $1,120
Price last updated 12/30/2008
Shipping Weight: 73 lbs.
This item normally ships in approximately 1 week or less.

Item Number: 7215-MSL-UG
Price: $1,245
Price last updated 12/30/2008
Shipping Weight: 73 lbs.
This item normally ships in approximately 1 week or less.
