INT45
(76000LP, 76000NG)
Click thumbnail image above to enlarge

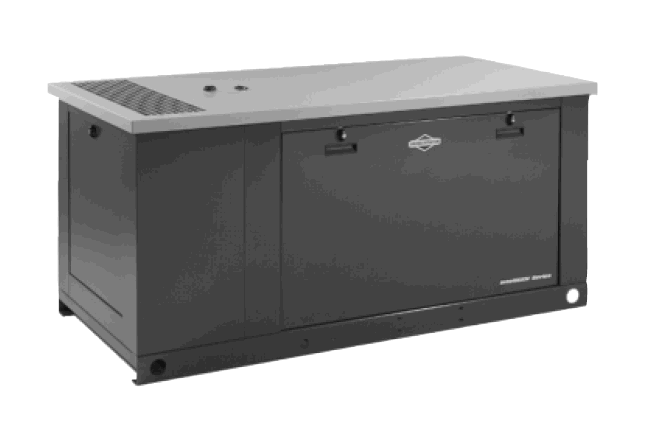

Standby Generator Set
Briggs & Stratton® IntelliGEN™ Home Standby
30000W running, 37500W surge on LP
27000W running, 33000W surge on NG
(see below for transfer switch)
Whether you are home or away, the IntelliGEN™ Series Automatic Home Generator System provides fully automatic protection from power outages. Advanced electronics continually monitor utility power. When an outage occurs, it starts the generator and automatically switches from utility power to generator power. Electrical power is restored without effort, in seconds. When utility power is restored, the system senses it, transfers service back to the utility, shuts down the generator and resumes monitoring. It's all automatic. No worries, no hassles. Assembled in the USA.
Gives you automatic, uninterrupted power for home essentials including large loads:
| * Lights * Furnace Fan * Refrigerator/Freezer * Garage Door Opener * Security System |
* Humidifier/Dehumidifier * Entertainment System * Sump Pump * Water Well * Microwave |
* Range/Stove * Microwave * Water Heater * Multiple Central Heat Pumps * Multiple Central Air Conditioners |
High Value Features to Keep You Running
GM Liquid Cooled Engine - GM Vortec engines provide sophisticated yet extremely durable industrial grade power.
Sound Shield™ Technology - Engineered sound passages, an automotive-style exhaust system and acoustic foam dampeners ensure ultra-quiet, neighbor-friendly operation.
Patented Central Air Technology - The AC power Control™ feature allows you to manage the high power demands of
two 5-ton central air conditioners for 18/20kW models, in addition to essential items while protecting against AC overload.
CoastGuard™ All-Climate Enclosure - Perfect for coastal climates, this premium enclosure features rounded corners, and an automotive rust proofing paint process for years of rust resistant 4 season protection. Backed by a 3 year enclosure warranty.
Remote System Status - Transmits advanced diagnostic reporting on 8 different system functions (twice the protection of the leading competitor) to a safe location inside your home. Available on automatic units only.
Overload Protection - When multiple high-wattage items attempt to start at the same time, the power demand can cause a generator to overload and shutdown. The exclusive AC Power Control Module's advanced computer controls automatically manage 2 central air conditioners while safeguarding the generator against power overload.
Turnkey Extras - The system includes an automatic battery charger, polymer installation pad,
and comes pre-run at the factory, eliminating hidden costs with your installation.
4 Year Residential 3000 hour Warranty - The best in the industry and your guarantee of quality and performance.
Specifications
|
|
||
| Engine Make | GM Vortec | |
| Engine Type | 4-cycle, liquid cooled, with full pressure lubrication | |
| Engine Displacement | 3000 cc | |
| Sound Level | 65dbA @ 7 meters @ normal load | |
| AC Output Voltage | 120/240VAC, 1 phase | |
| AC Output Frequency | 60Hz | |
| AC Output Power - running/surge | 30,000 watts running/37,500 surge
on LP 27,000 watts running/33,000 surge on NG |
|
| AC Output Current - running | 125 amps running on LP 112 amps running on NG |
|
| Alternator | brushless low-maintenance alternator | |
| Battery | 12V (not included, purchase locally at time of install) | |
| Control System | - automatic remote starting - oil high temperature - low oil pressure - overcrank fail to start - overspeed - transfer switch fault |
- low AC voltage - low AC frequency - low battery voltage - running time meter - AC circuit breaker - DC control fuse |
| Remote Indications | - Remote LED panel - contacts provided for remote alarms/indications |
|
| Cold weather options (thermostatically controlled) | - oil warmer - battery warmer |
|
| Fuel Consumption - LP Vapor (7-11 in.W.C. pressure at full load req'd) |
92 cu.ft./h or 228,800 Btu/h
or 2.7 gal/h at half load 150 cu.ft./h or 373,000 Btu/h or 4.5 gal/h at full load |
|
| Fuel Consumption - natural gas (7-11 in.W.C. pressure at full load req'd) |
259 cu.ft./h or 259,000 Btu/h at half load 420 cu.ft./h or 420,000 Btu/h at full load |
|
| Normal Operating Range | -20F to +104F | |
| Dimensions L x W x H | 85" x 40" x 42" | |
| Weight | 1650 lbs. | |
| Warranty | 4 years consumer, no warranty for commercial or industrial use | |
Automatic Transfer Switches
Fully Automatic
All of our switches monitor utility and generator voltages and will
automatically connect to the appropriate source of power. The 200 amp
and 400 amp switches are capable of "whole house" power transfer in
residential applications. For whole house
applications the switch amp rating must equal or exceed the utility service
rating. If feeding a sub-panel the switch must equal or exceed the
sub-panel rating. Ratings: 120/240 Voltage, 2 Poles, 60 Frequency, AC Power Control Module (ACCM-III), Nema 3R Indoor/Outdoor Enclosure, UL 1008
Listed.
Safety Features
All switch models are solenoid-operated from utility or generator inputs and
contain electrical interlock switches to eliminate the possibility of
dangerous back feed to utility during an outage. Switches are listed to
UL Standard 1008.
Pick
options using dropdown menus before pressing add to cart button...
1-Select proper switch for your application. Optional built-in service entrance disconnect eliminates
need
for external disconnect when installing switch directly downstream of utility meter.
Reduces installation
time and cost of extra external disconnect. ACCM will
control up to two A/C units or heat pumps by
wiring these contacts into thermostat circuit.
2-Select optional remote StatStation for displaying genset conditions (soon to
be discontinued)
3-Select Command Central when more than two loads must be controlled.
Provides four normally closed
control contacts for controlling up to four A/C units or heat
pumps by wiring these contacts into thermostat
circuits. Also provides four 50A 240V contactors for
controlling four other large loads such as electric
water heater, electric range, electric dryer, etc.
4-
5-Optional maintenance kit. Includes oil, filters, plugs, etc.
6-Select delivery method.
| LP fueled: Item Number: 76000LP Price: $10,983 Price last updated 2/28/2011 Shipping Weight: 1650 lbs. This item normally ships in approximately 1-2 weeks or less. If not paying by credit card contact NoOutage before placing order. |
| NG fueled: Item Number: 76000NG Price: $10,983 Price last updated 2/28/2011 Shipping Weight: 1650 lbs. This item normally ships in approximately 1-2 weeks or less. If not paying by credit card contact NoOutage before placing order. |
.
