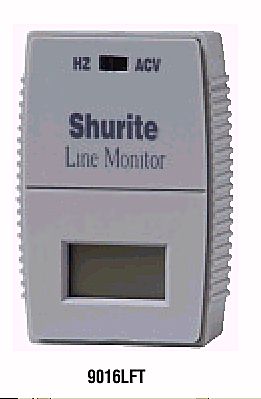

Digital Voltage & Frequency
Monitor
120Vac 60Hz
This switch selectable Voltage and Frequency monitor is
designed to plug into any standard 120Vac 15A or 20A household or generator
outlet. Provides continuous and accurate readings of both the voltage
and frequency of the supplied power. Switch can be set to display
voltage or frequency, one at a time and can be switched back and forth at
will.
Easy to read, high accuracy, digital display provides
measurements with years of service at virtually no cost of operation.
Rated 108-132VAC, 50-70Hz, +2% (+1 digit).
This monitor is perfect for...
* monitoring for poor quality utility power
* checking voltage and frequency output of generator
sets
* adjusting voltage regulator and speed governor of
engine generators
* checking voltage and frequency output of UPS
systems
* monitoring voltage and frequency of
inverter/alternative energy systems
The 9016LFT is not a true-rms device and may not properly
measure voltages produced by modified sine wave inverters.
