AIR-BREEZE
click on thumbnail image above to enlarge

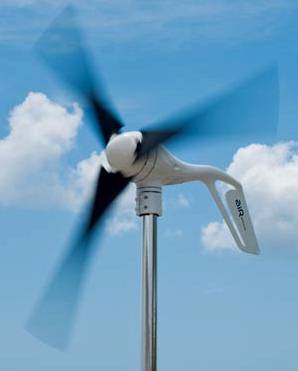

200W 38kWh Wind Generator
Land or Marine Version
The most powerful wind generator in its class.
The all-new Air Breeze. Quieter, more efficient, and precision engineered to deliver more energy at lower wind speeds than any other wind generator in its class. Air Breeze is the next generation of Air turbines—with more than 100,000 units sold in 120 countries, the world's most popular small wind turbine.
• 3 year warranty
• Durable composite blades
• Microprocessor-based smart internal regulator with peak power tracking
• Aircraft-quality aluminum alloy castings
• Brushless neodymium alternator
• Maintenance-free — only two moving partsDC cable length and voltage drop must be evaluated carefully when laying out system. Click here for our simple voltage drop calculator.

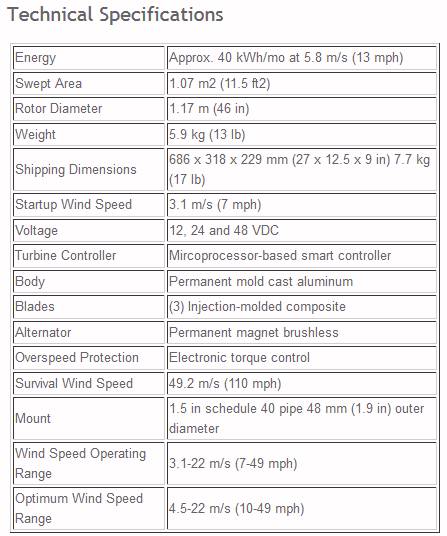

Specifications
Wind Generator Specifications |
|

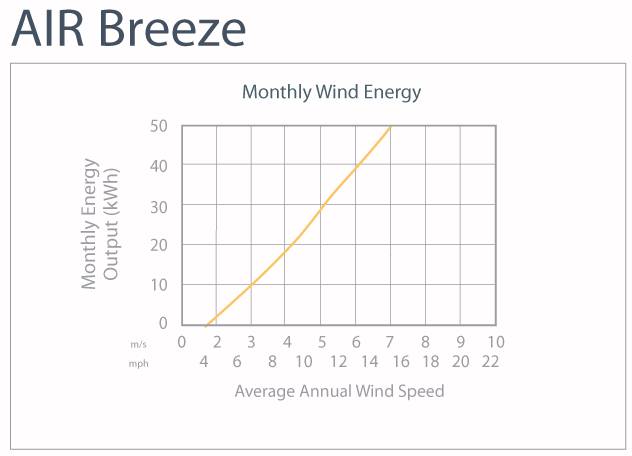

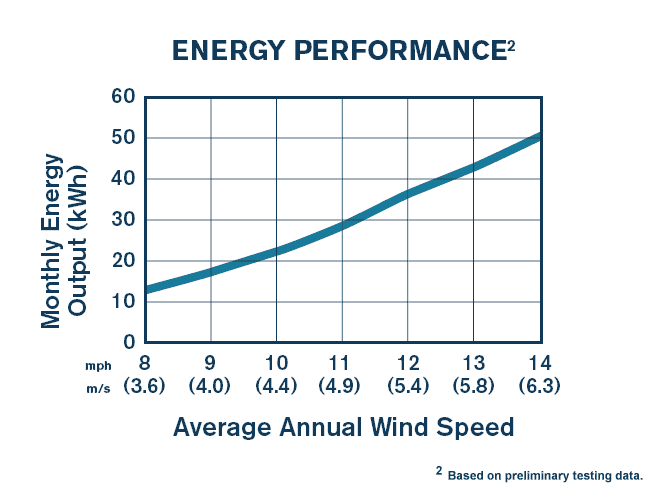

| Rated Output | 200 watts at 28 mph 38 kWh per month at 12 mph |
| Startup Wind Speed | 6 mph |
| Survival Wind Speed | 110 mph |
| Output Voltage(s) | 12 or 24 Volts |
| Controller | Microprocessor-based smart internal regulator with peak power tracking. Electronic torque control for overspeed protection. |
| Rotor & Blade Configuration | 3.83 ft diameter rotor, 3 blades injection-molded composite |
| Standard Mounting | 2 inch schedule 40 pipe (1-1/2 inch schedule 40 for last 5 ft) |
| Tower Top Weight | less than 13 lbs |
| warranty | 3 years |
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Manufacturer recommended lightning arrester LA-302-DC
Stop switch AIR-SW
Tower kits TOW-27-A or TOW-45-A or roof mount kit TOW-RMS
Tower-top junction box UPTOWER-JB
Augers TOW-AUG-36, TOW-AUG-48
Spare blade set AIR-BLADES
Item Number: AIR-BREEZE
Price: $745
Price last updated 3/13/2009
Shipping Weight: 17 lbs. - dimensions 27x15x9 inches
This item normally ships in approximately 1 week or less.
