TRANSFER SWITCH PANEL - OUTDOOR
click on thumbnail
image above to enlarge

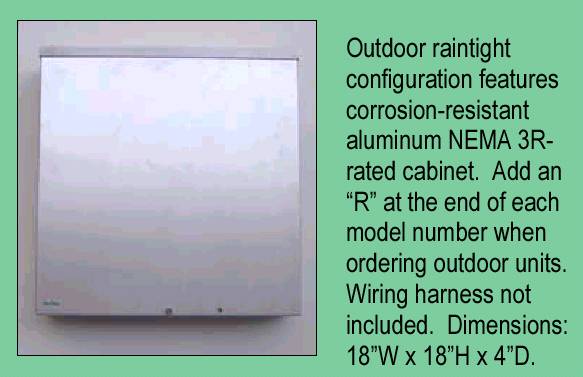

Outdoor Manual Transfer Switch Panel
20A, 30A or 50A Generator input
6, 10 or 12 branch circuits provided
expandable to 16 branch circuits max
no generator watt meters
Easy to install and operate, connects portable generator to residential load center. Allows manual transfer of all loads with individual on-off control of each to prevent overloading generator. Required by National Electric Code (NEC) to prevent inadvertent backfeeding of electric power from generator into utility system which can be a safety hazard. The industry's first pre-wired manual transfer panels that can be expanded in the field up to 16 circuits. Models designed for generators ranging from 5,000 to 15,000 watts, the PowerStay™ manual transfer switch systems are available in 6, 10 or 12-circuit configurations and are listed under the new UL standard 1008. Made in USA
KEY FEATURES:
* Each model is expandable up to 16 circuits
* Designed with interchangeable type circuit breakers for easy
replacement or expansion
* Copper bus for increased reliability
* Outdoor raintight configuration features corrosion-resistant aluminum
NEMA 3R rated cabinet.
* Accommodates hard wired OR plug-in generator connections
* Can power both resistive and inductive (motor) loads
* 18" W x 18" H x 4" D, 28 lbs.System includes mechanically interlocked main and generator breakers and wattmeters. You will to need connect all wiring and install a 60 or 100 amp main breaker in your existing load center, depending on model. Wiring harness and watt meters not included with outdoor unit.
Specs and Ordering Table
Prices last updated 12/1/2009
Shipping weights start at 28 lbs.
These items normally ship in approximately 1 week or less.
| Model No. | Utility Branch Breaker Required in Load Center (by installer) | Max. Generator Input
(Amps) (Watts) |
Male Inlet Provided (click link) |
Branch Breakers Provided | Works with: Cordsets Inlet Boxes Remote Metering Kit |
Price $ US |
Add to Shopping Cart |
| R200660 | 60A | 20A 5,000W |
L1420P | (2) 15A 1P (2) 20A 1P (1) 20A 2P |
RJB12410
or RJB12425 14201 or 14202 E140132-40 or MB75 |
$310 |
|
| R301060 | 60A | 30A 7,500W |
L1430P | (3) 15A 1P (3) 20A 1P (1) 20A 2P (1) 30A 2P |
RJB10410
or RJB10425, 14301 or 14302 E140132-5 or MB75 |
$320 |
|
| R501210 | 100A | 50A 12,500W |
CS6365 | (3) 15A 1P (3) 20A 1P (1) 20A 2P (1) 30A 2P (1) 50A 2P |
RJB06410 or RJB06425, 63651 or 63652 E140132-5 or RMK |
$447 |
|
NOTES:
1. A branch breaker provided by the installer must be installed in the upstream load center to feed this sub-panel.
2. Additional models available upon request.
