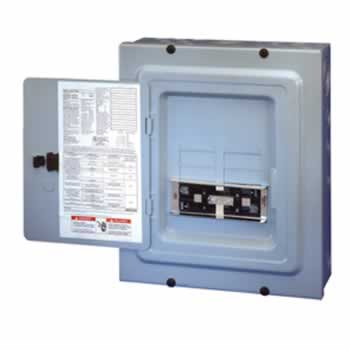

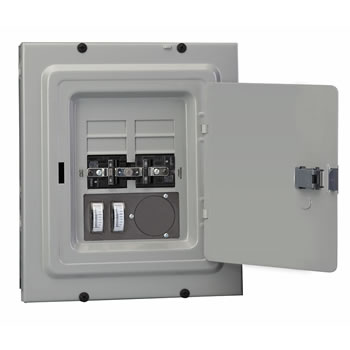

Shown with and without generator cord inlet
click on thumbnail image above to enlarge
Manual Transfer Switch
Indoor version
(consists of 2 breakers with handle interlock)
Economical Panel/Link™
switches. Supplied with a double pole utility breaker and
a double pole generator breaker that are interlocked to prevent both from being closed at
the same time. This eliminates the danger of backfeeding to the utility, endangering
utility repair crews. It also prevents utility power from feeding into your
generator and causing damage. The TRB also has provisions for 4 to 8
branch circuits using single-pole breakers or two double-pole breakers.
Standard features include NEMA 1 indoor cabinet suitable for surface

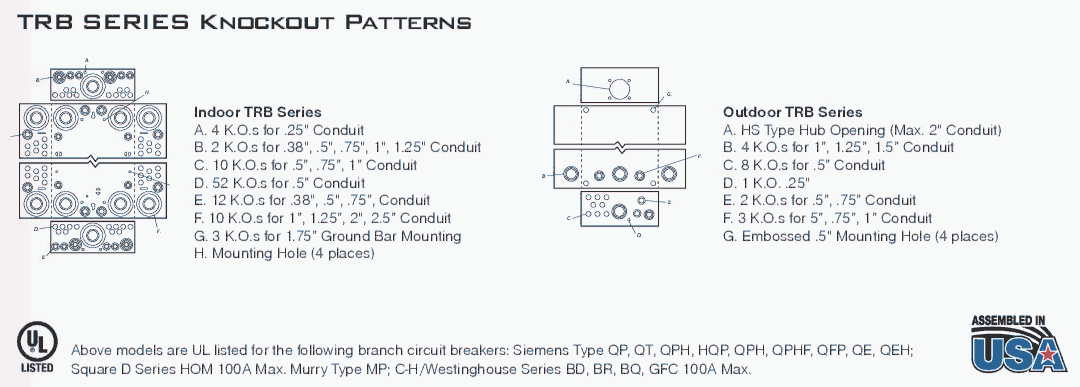

mounting, knockouts for hard wiring and UL Listing.
Service entrance rated which allows this to be connected directly to your
power company meter. Provided with preinstalled main
generator and main utility
breaker with feed-thru lugs for connecting your load wiring. Generator
meters included for 60A input and below. An optional male inlet is
available for 50A generator inputs and below. This product can be used as a main panel or a
sub-panel.
Made in USA
Shipping Weight: 19 lbs.
Dimensions H x W x D (inches):
Shipping will be added based on your zone and item weight. Click
here to view our current shipping rate table. Shipping is less when several items are combined
on the same order.
Specs & Model Numbers
| Model No. |
Utility Breaker Input
(amps) |
Generator Breaker Input
(Amps) |
Max. Generator Input
(Watts) |
Male Inlet Installed |
Works With |
Price
$ US |
Add to Shopping Cart |
| TRB0202A |
20 |
20 |
5,000 |
L1420P |
gen cord
PC2010USA
|
$168 |
|
| TRB0202C |
20 |
20 |
5,000 |
none |
inlet box PB20
or PR20
gen cord
PC2025USA |
$156 |
|
| TRB0402A |
40 |
20 |
5,000 |
L1420P |
gen cord
PC2010USA
|
$168 |
|
| TRB0402C |
40 |
20 |
5,000 |
none |
inlet box PB20
or PR20
gen cord
PC2025USA |
$156 |
|
| TRB1002A |
100 |
20 |
5,000 |
L1420P |
gen cord
PC2010USA
|
$204 |
|
| TRB1002C |
100 |
20 |
5,000 |
none |
inlet box PB20
or PR20
gen cord
PC2025USA |
$192 |
|
| TRB0303A |
30 |
30 |
7,500 |
L1430P |
gen cord PC3010USA
|
$168 |
|
| TRB0303C |
30 |
30 |
7,500 |
none |
inlet box PB30 or
PR30
gen cord
PC3025USA |
$156 |
|
| TRB0603A |
60 |
30 |
7,500 |
L1430P |
gen cord PC3010USA
|
$168 |
|
| TRB0603C |
60 |
30 |
7,500 |
none |
inlet box PB30 or
PR30
gen cord
PC3025USA |
$156 |
|
| TRB1003A |
100 |
30 |
7,500 |
L1430P |
gen cord PC3010USA
|
$204 |
|
| TRB1003C |
100 |
30 |
7,500 |
none |
inlet box PB30 or
PR30
gen cord
PC3025USA |
$192 |
|
| TRB1203A |
125 |
30 |
7,500 |
L1430P |
gen cord PC3010USA
|
$248 |
|
| TRB1203C |
125 |
30 |
7,500 |
none |
inlet box PB30 or
PR30
gen cord
PC3025USA |
$237 |
|
| TRB0505A |
50 |
50 |
12,500 |
CS6365 |
inlet box PB50
or PR50
gen cord RJB06410
|
$193 |
|
| TRB0505C |
50 |
50 |
12,500 |
none |
gen cord RJB06425 |
$156 |
|
| TRB1005A |
100 |
50 |
12,500 |
CS6365 |
inlet box PB50
or PR50
gen cord RJB06410
|
$229 |
|
| TRB1005C |
100 |
50 |
12,500 |
none |
gen cord RJB06425 |
$192 |
|
| TRB1205A |
125 |
50 |
12,500 |
CS6365 |
inlet box PB50
or PR50
gen cord RJB06410
|
$270 |
|
| TRB1205C |
125 |
50 |
12,500 |
none |
gen cord RJB06425 |
$237 |
|
| TRB0606C |
60 |
60 |
15,000 |
none |
hi cap inlet 300134-1
|
$156 |
|
| TRB1006C |
100 |
60 |
15,000 |
none |
hi cap inlet 300134-1
|
$192 |
|
| TRB1206C |
125 |
60 |
15,000 |
none |
hi cap inlet 300134-1
|
$237 |
|
| TRB1010D |
100 |
100* |
24,000 |
none |
hi cap inlet 300134-1
metering METERPNL4
|
$198 |
|
| TRB1212D |
125 |
125* |
30,000 |
none |
hi cap inlet 300134-1
metering METERPNL4
|
$274 |
|
Options
Provisions for up to two branch breakers per TRB.
These branch breakers can also be factory installed in TWB
panels.
Be sure to only select branch breakers with an amp rating lower than
utility breaker. |
| Model No. |
Description |
Price
$ US |
Add to Shopping Cart |
| TWB-20A-2P |
Factory Installed branch
breaker - 20A 2pole (2 max) |
$19 |
|
| TWB-30A-2P |
Factory Installed branch
breaker - 30A 2pole (2 max) |
$19 |
|
| TWB-40A-2P |
Factory Installed branch
breaker - 40A 2pole (2 max) |
$19 |
|
| TWB-50A-2P |
Factory Installed branch
breaker - 50A 2pole (2 max) |
$19 |
|
| TWB-60A-2P |
Factory Installed branch
breaker - 60A 2pole (2 max) |
$19 |
|
| TWB-100A-2P |
Factory Installed branch
breaker - 100A 2pole (2 max) |
$47 |
|
| TWB-125A-2P |
Factory Installed branch
breaker - 125A 2pole (2 max) |
$79 |
|
* No generator load metering available over
60A.
NOTE: Other breaker combinations between 20A
and 125A are available by special order.
|
