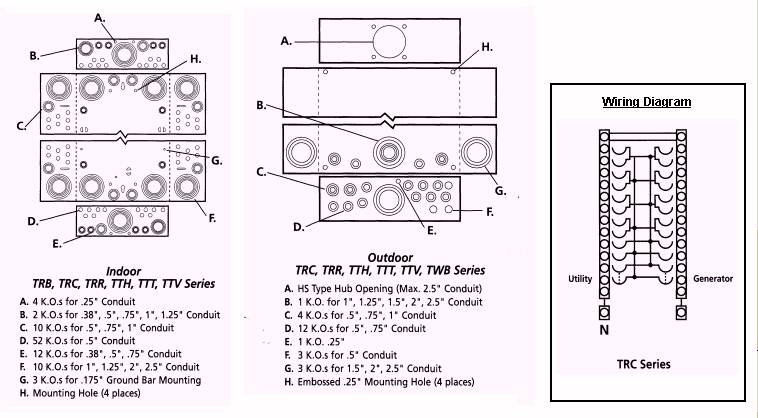

front view no inlet	front view with inlet	pre-wired inside view	knockouts & single-line	Configuration B7	for standard version	for pre-wired version
click on thumbnail image above to enlarge

For installations that require more capacity for heavier loads of 25 amps or more, such as electric water heaters, electric ranges, well pumps, motors, commercial refrigeration, heat pumps and central air conditioning.  Suitable for use with larger generators.  This panel may be sub-fed from the existing building panel, or may be used as service entrance equipment.  Supplied with a double pole utility breaker and a double pole generator breaker that are interlocked to prevent both from being closed at the same time.  This eliminates the danger of backfeeding to the utility, endangering utility repair crews.  It also prevents utility power from feeding into your generator and causing damage.  Allows manual transfer of individual loads to prevent overloading generator.  The installer selects the the proper size branch breakers to add to this panel.  Power inlet receptacle and generator meters all provided in panel.

Standard features include NEMA 1 indoor cabinet suitable for surface or flush mounting, split neutral feature which places a neutral next to each circuit breaker, heavy duty copper bus bars and adjustable trim.  Service entrance rated which allows this to be connected directly to your power company meter.  Accommodates up to twelve 1 inch branch circuit breakers or as many as 20 combination 1/2 inch and 1 inch circuit breakers.   This panel is UL Listed for use with any of the following circuit breakers:

	Siemens Type QP, QG, QPH, HQP, QPF, QPHF, QFP, QE, QEH, QAF, QAFH
	Square D Series HOM (100 amp max)
	Westinghouse/Cutler Hammer Series BD, BR, BQ, GFC (100 amp max)

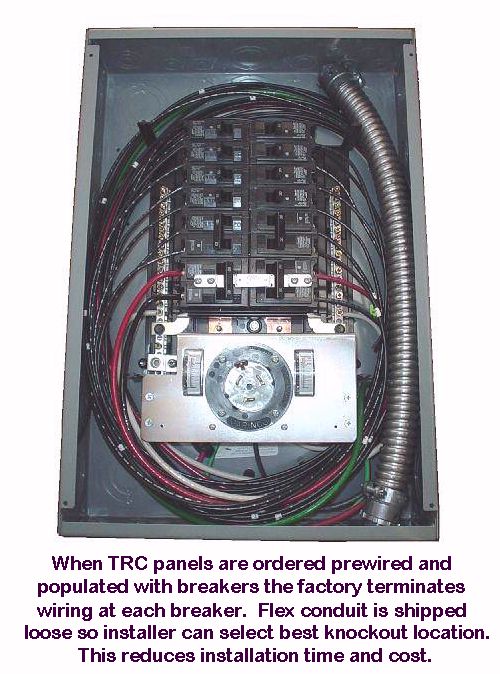

Provided with preinstalled generator breaker, main utility breaker, two meters for generator watts, and male twist lock power inlet receptacle (where indicated).  See Installation Guide.  As an option this panel can be populated with branch breakers and wired through a flex conduit by the factory at a slightly higher price.  Specify using dropdown menu below when ordering.  Made in USA



Click here to compare with other brands.



Shipping Weight: 30 lbs.
Dimensions H x W x D (inches): 21-1/8 x 15-1/2 x 4
This item normally ships 1-2 weeks
Shipping will be added based on your zone and item weight.  Click here to view our current shipping rate table.  Shipping is less when several items are combined on the same order.
