Vigilant ATS
|
|
external interface |
|
| Click thumbnail image above to enlarge | |||

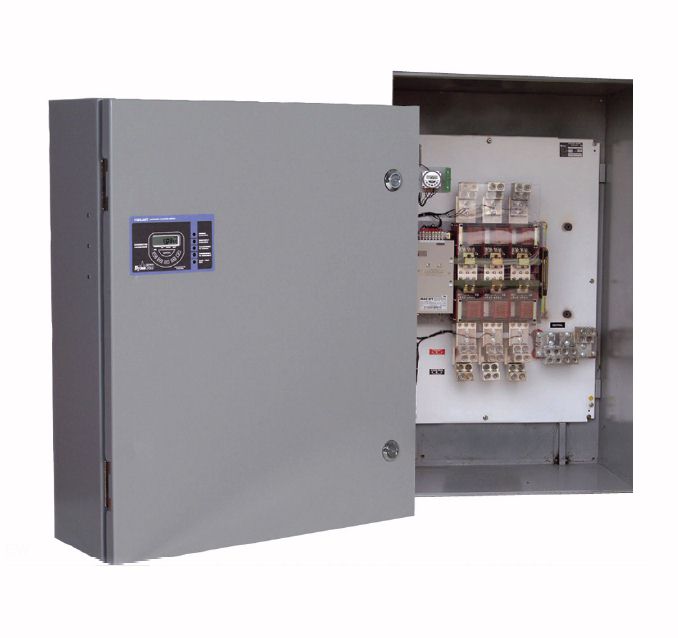

Automatic Transfer Switch
400-1250 amp, 240-480V
NEMA 3R outdoor, generator exerciser
When you require a complete basic automatic transfer transfer switch, we have the solution. The DynaGen Vigilant series is designed to UL 1008 and has all the necessary delay timers, voltage sensing, frequency sensing, and generator programmable exerciser clock. Now Made in USA
.
Description
The Vigilant Transfer Switch System. provides automatic transfer of an electrical load to a standby power supply in the event of a drop or loss of voltage, on any or all phases of the normal supply. Upon restoration of normal power, the electrical load is automatically re-transferred to the normal power supply. All time delays are built in to the control of the switch and are factory pre-set to simplify installation and startup.
Unique Features
The new redesigned Vigilant series switch has many unique features not available on other switches, or only available with upgraded more-expensive models. Compare with the competition...
| DynaGen Vigilant Series... | the competition... |
| * galvanized steel enclosure - better corrosion resistance | * painted steel |
| * voltage and frequency sensing on both sources | * no frequency sensing on utility source |
| * voltage, frequency and time delay settings field adjustable | * some settings fixed at factory |
| * interface on outside of enclosure
includes exerciser, no need to open door |
* must open door to program exerciser and perform other functions |
| * standard 5 year warranty | * 1 year warranty standard, extra cost for 5 years if available |
| * normally ships quick from stock | * 2-4 week lead time or longer |
Specifications
| Switch Current Rating | 400-1250 amps | ||
| Voltage Rating | 240V-480V, 60Hz standard (50Hz optional) | ||
| Control Features (see note 1) KEY: P.U. = pickup D.O. = dropout |
Function | Adjustable Range | Factory Setting |
| start time delay | 0-32 sec | 10 sec | |
| transfer time delay | 0-64 sec | 10 sec | |
| retransfer time delay | 0-256 sec | 256 sec | |
| cool down delay | 0-256 sec | 256 sec | |
| neutral delay (600A switch & above) | 0-64 sec | 10 sec | |
| voltage sensing of utility | 11-18% D.O. above/below 6-13% P.U. above/below |
18% 13% |
|
| frequency sensing of utility | 5-12% above/below | 12% | |
| voltage sensing of generator | 11-18% D.O. above/below 6-13% P.U. above/below |
18% 13% |
|
| frequency sensing of generator | 5-12% above/below | 12% | |
| Exerciser Clock | electronic design, field adjustable for 7 day exercising without load transfer | ||
| Battery Charger | not included (order separately if required) | ||
| Nominal Dimensions (H x W x D) | 48" x 30" x 12"
(400A) 60" x 30" x 24" (600A-1250A) |
||
| Weight | 190-542 lbs. | ||
| Warranty | 5 year factory warranty | ||
NOTES:
1) The start time delay prevents nuisance generator starts during momentary utility power variations; transfer time delay allows generator set to stabilize before load is applied; retransfer delay prevents needless power interruption if return of utility power is momentary; stop delay allows gradual generator set cool down; undervoltage sensing of utility supply provides reliable starting of generator set during brownout conditions.
2) This switch is not service entrance rated. This generally means that you need a service entrance rated disconnect between this switch and your utility meter.
Customers who purchased this product also ordered:
(click underlined words to see product pages)Battery charger BATTEND022
Ordering Table
| Model No. Lead Time |
Amps | Poles | Enclosure | Add to Shopping Cart |
| VTS400A2PN3 | 400 | 2 | NEMA 3R |
Item Number: VTS400A2PN3 Price: $2,164 Price last updated 5/14/2012 Shipping Weight: 200 lbs. This item normally ships in approximately 1-2 weeks or less. |
| VTS400A3PN3 | 400 | 3 | NEMA 3R |
Item Number: VTS400A3PN3 Price: $2,570 Price last updated 5/14/2012 Shipping Weight: 200 lbs. This item normally ships in approximately 1-2 weeks or less. |
| VTS600A3PN3 | 600 | 3 | NEMA 3R |
Item Number: VTS600A3PN3 Price: $4,477 Price last updated 5/14/2012 Shipping Weight: 475 lbs. This item normally ships in approximately 3 weeks or less. If not paying by credit card contact NoOutage before placing order. |
| VTS1000A3PN3 | 1000 | 3 | NEMA 3R |
Item Number: VTS1000A3PN3 Price: $6,753 Price last updated 5/14/2012 Shipping Weight: 560 lbs. This item normally ships in approximately 3 weeks or less. If not paying by credit card contact NoOutage before placing order. |
| VTS1250A3PN3 | 1250 | 3 | NEMA 3R |
Item Number: VTS1250A3PN3 Price: $7,373 Price last updated 5/14/2012 Shipping Weight: 600 lbs. This item normally ships in approximately 3 weeks or less. If not paying by credit card contact NoOutage before placing order. |
