AIR-40
1-AR40-10-12
1-AR40-10-24
1-AR40-10-48
click on thumbnail image above to enlarge
Wind Generator
off-grid homes, telecom, industry

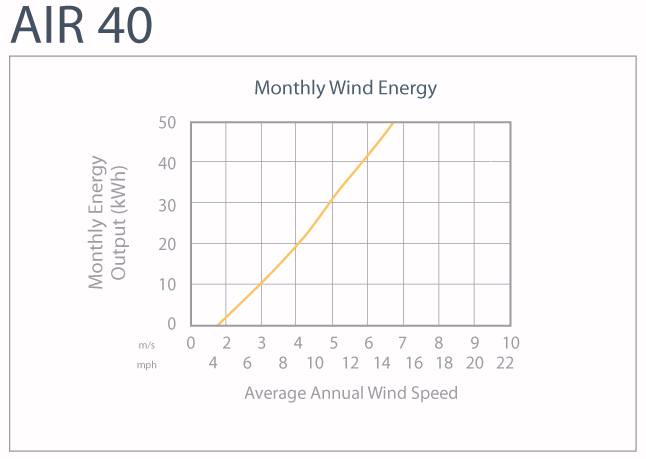

40kWh/month @ 13.4mph
AIR 40 is the best choice to provide energy for off-grid homes, water pumping, lighting, telecom and anywhere you need electricity and have wind. AIR 40’s optimized electronic controls deliver energy quietly and efficiently. Extensive third party testing and certification shows more consistent output than the competition. AIR 40 is part of the latest generation of AIR products—the world’s best-selling wind turbines—with more than 135,000 units sold in more than 120 countries.
We recommend AIR 40 for small battery-charging applications: remote homes, telecom, industry, lighting and more. The AIR 40 is an ideal wind turbine for hybrid systems with solar to offset those cloudy or wintery periods. Not for use in marine environments. AIR 40 is built and backed by the worldwide leader in small wind.
* Advanced microprocessor for reliable energy production
* Integrated overcharge protection eliminates additional equipment
* Composite blades for durability and optimum wind capture
* Permanent mold cast aluminum body
* High-quality, field tested components
* Quiet operation
* Lightweight; unique design is simple and easy to install
* Energy in light winds
* Plug and play battery connection
* For use in non-corrosive environments
DC cable length and voltage drop must be evaluated carefully when laying out system. Click here for our simple voltage drop calculator.

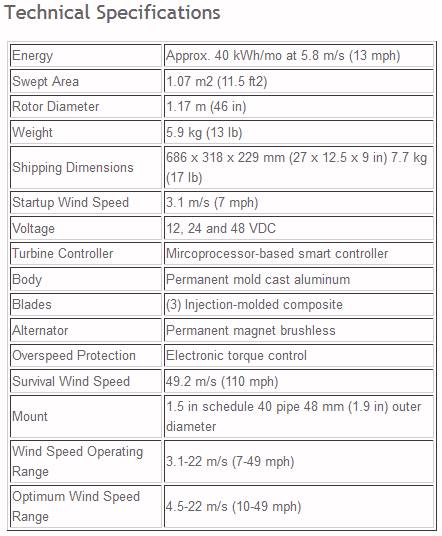

Specifications
Wind Generator Specifications |
|
| Rated Output | 40 kWh per month at 13.4 mph |
| Startup Wind Speed | 7 mph |
| Survival Wind Speed | 110 mph |
| Output Voltage(s) | 12, 24 or 48 Volts |
| Controller | Microprocessor-based smart internal regulator with peak power tracking. Electronic torque control for overspeed protection. |
| Rotor & Blade Configuration | 46 inches diameter rotor, 3 blades injection-molded composite |
| Standard Mounting | 2 inch schedule 40 pipe (1-1/2 inch schedule 40 for last 5 ft) |
| Tower Top Weight | less than 13 lbs |
| warranty | Lifetime limited warranty |
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Manufacturer recommended lightning arrester LA-302-DC
Stop switch AIR-SW
Tower kits TOW-27-A or TOW-45-A or roof mount kit TOW-RMS
Tower-top junction box UPTOWER-JB
Augers TOW-AUG-36, TOW-AUG-48
Spare blade set AIR-BLADES
Item Number: AIR-40
Price: $936
Price last updated 1/30/2012
Shipping Weight: 17 lbs. - dimensions 27x15x9 inches
This item normally ships in approximately 1 week or less.
