AIR403-MARINE
DISCONTINUED MODEL - CLICK HERE FOR REPLACEMENT AIRX-MARINE
click on thumbnail image above to enlarge
400W Wind Generator
(corrosion-resistant version)
In 1986 Southwest Windpower set out to develop a low cost reliable wind turbine to meet the needs of small independent power systems and work well in conjunction with solar electric modules for battery charging. Today, tens of thousands of their turbines are operating around the world, powering remote homes, water pumping, telecommunications stations and sail boats.

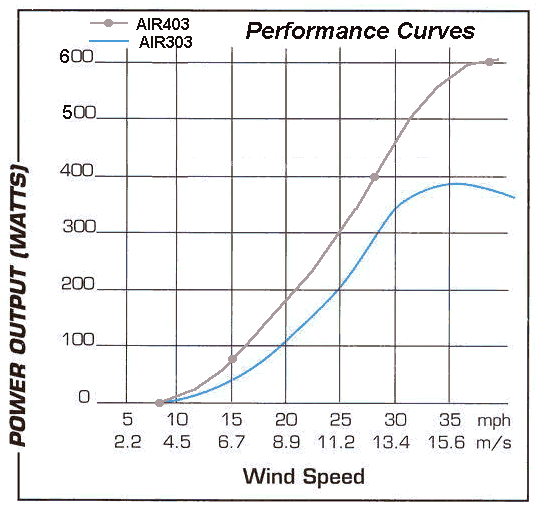

The AIR403 is a revolutionary new concept in wind turbine technology. The strong carbon-fiber reinforced blades and advanced airfoil achieve higher output and reduced noise compared to the earlier AIR303 that it replaces. Other improvements include: only two moving parts, maintenance free design, variable pitch airfoil, aluminum alloy aircraft-grade castings with integral heat sink, brushless permanent magnet alternator and improved regulator. Its high power output and maintenance-free reliability make it ideal for use in remote locations. It has a built-in "smart" regulator that can handle peaks of over 750 watts and tapers the charge to trickle and rotor to a silent spin when the batteries are full. AIR's small size and light weight make it easy to mount on pole towers, eliminating the need for sophisticated towers. The AIR403 is suitable for winds up to 100 mph. UL Listed and CE Certified. Made in USA.
This marine version is the similar to the standard AIR403 except for the added corrosion-resistant. It is designed for coastal and nautical applications where corrosion is a problem. All castings are powder coated, the electronics are fully sealed and exposed hardware is stainless steel.
Specifications
Wind Generator Specifications |
|
| Rated Power Output | 400 watts at 28 mph |
| Output Voltage(s) | 12, 24 or 48 Volts (not field selectable, specify when ordering) |
| Rotor & Blade Configuration | 3.75 ft diameter rotor, 3 blades carbon-fiber reinforced |

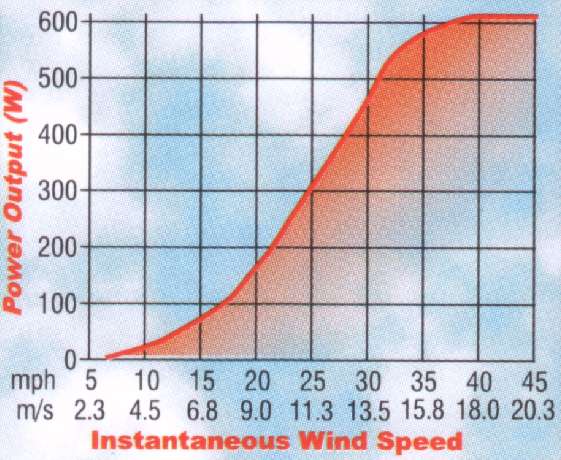

| Output Profile vs. Wind Velocity: 8 mph 15 mph 28 mph 38 mph |
Output: 0 watts (turbine startup) 75 watts 400 watts 600 watts |
| Standard Mounting | 2 inch schedule 40 pipe (1-1/2 inch schedule 40 for last 5 ft) |
| Tower Top Weight | less than 13 lbs |
| warranty | 3 years |
Application Note: We do not recommend mounting this wind generator on an occupied building since it does produce noise in high winds.
Customers who purchased this product also ordered:
(click underlined words to see product pages)Manufacturer recommended lightning arrester LA-302-DC
Stop switch AIR-SW or stop circuit breaker AIR-CB/ENCL
Boat mounting kit TOW-MAR and mast and stays TOW-9-MAR-PS
Spare blade set AIR-BLADES
Item Number: AIR403-M (select voltage when ordering below using drop-down list)
Your Price:
Shipping Weight: 17 lbs.
This item normally ships 5-10 business days after order acceptance.
Shipping will be added based on your zone and item weight. Click here to view our current shipping rate table. Shipping is less when several items are combined on the same order. We can also ship this item to most areas of the world for less than $150.
