THIS PRODUCT DISCONTINUED.
SEE ATS3W100.
click thumbnail image above to enlarge

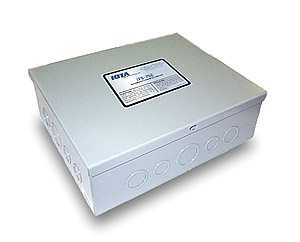

Automatic Transfer Switch
120/240VAC, 75 amp
Safely connect an inverter and an AC generator to the same house or
RV wiring. Switch can be used with inverters that do not have built-in transfer
switch capability. If the generator is not running, the inverter is connected to the
house wiring. When the generator is started, the house wiring is automatically
disconnected from the inverter and connected to the generator. A time delay feature
allows the generator to warm-up before the transfer takes place. This is a
contactor-based transfer switch with ac coils.
Also can be used to transfer between an RV generator
and "shore" power.
If system is 120VAC only (no 240VAC) you must connect
to "HOT 1" on this switch. Connecting to "HOT 2" is
optional.
Comparison with Other Transfer Switches
(some features not included with ATS3W75 can be added by user with
additional auxiliary relays)
2 year warranty. ETL Listed. Metal enclosure dimensions
8" x 12" x 4". Iota model ITS-75C.
Item Number: ATS3W75
Your Price: $389.00
Shipping Weight: 14 lbs.
This item normally ships 1-2 business days after order acceptance.
Shipping will be added based on your zone and item weight. Click
here to view our current shipping rate table. Shipping is less when several items are combined
on the same order.
