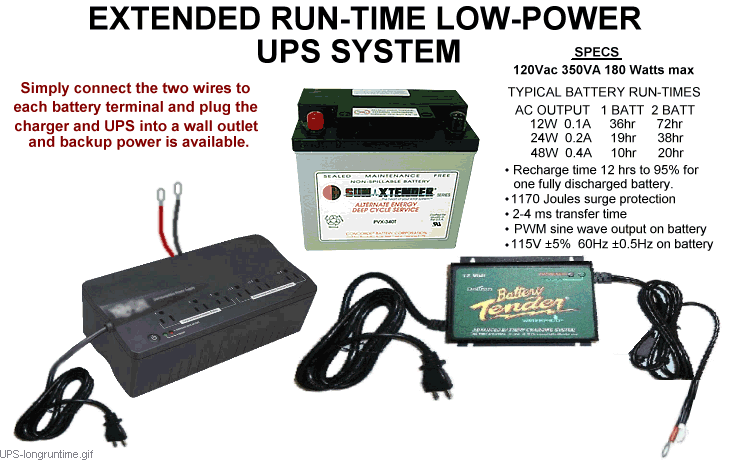

Customized UPS System
for extremely long battery run-times
with small 120Vac loads
This customized UPS system is designed for those
special applications where you need to power small important 120Vac loads for
long periods of time. This system will power items such as cordless
phones, cell phone chargers, internet phone systems, answering machines and
alarm clocks for 1-2 days or more. The run-time depends on the actual ac
load and the number of batteries connected to the system.
System consists of small UPS system modified to work
with one or two large external maintenance-free gel cell batteries.
Additional charger is included to minimize recharge time after a prolonged
power outage. All wiring is included along with simple instructions to
connect the system.
Specs
| Maximum output load |
350VA 180 watts |
| Output voltage on battery |
115Vac +5% 60Hz +0.5Hz |
| Wave form on battery |
PWM sine wave output |
| Transfer Time |
2-4 ms |
| Surge protection (built-in) |
1170 Joules |
| Battery Run Times: |
| 12W 0.1A load |
36hr with 1 battery |
72hr with 2 batteries |
| 24W 0.2A load |
19hr with 1 battery |
38hr with 2 batteries |
| 48W 0.4A load |
10hr with 1 battery |
20hr with 2 batteries |
| Battery Recharge Times: |
| to 95% capacity from
full discharge |
12hr with 1 battery |
24hr with 2 batteries |
NOTE: Run-time and recharge data is
approximate and will vary with
battery age, temperature and number/depth of previous discharges.
Item Number: BCPVX
Your Price: $349.00
Shipping Weight: 46 lbs.
This item normally ships 1-2 weeks after order acceptance.
