BP Solar International, a wholly-owned subsidiary of The British Petroleum
Company p.l.c., is one of the world's largest solar power companies. For more than fifteen
years, they have been a leader in the design, manufacture and supply of advanced
photovoltaic power systems.

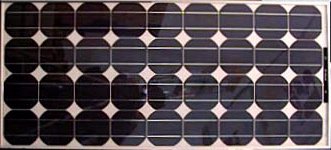

The BP-275 is made with 36 conventional single-crystal silicon cells and an
anodized aluminum frame. Besides the cells, all other features are the same as the BP-585.
This module is great where lower wattage is required, or high efficiency is not necessary.
Features:
•Each module comes with two waterproof cable clamps, so no special module
interconnects are required.
•Includes bypass diodes.
•Made with 36 conventional single-crystal silicon cells, and an anodized
aluminum frame.
•New, larger, hinged junction box with built-in bypass diodes features a cage
clamp mechanism to reduce wiring time and ensure secure connections with bare wire.
•The face of the module is tempered, high light transmission glass.
•The rear is a triple lamination of PVF, polyester and PVF.
•UL listed (UL 1703).
Certifications and Qualifications
•UL 1703 Listed
•JRC ISPRA
•TÜV compliant
•JQR compliant
Module Construction
•Solar Cells : 36 conventional single crystal cells
•Encapsulant: -- modified ethylene vinyl acetate (EVA)
•Front Glass: -- tempered, high transmission
•Back Cover: -- triple lamination of PVF, polyester and PVF
•Frame: -- clear anodized aluminum frame
•Junction box: -- large, hinged junction box with built-in bypass diodes, cage
clamp mechanism and two waterproof cable clamps
High Quality
•Modules manufactured in ISO 9002 certified facilities.
•Tested and certified for a wide range of operating conditions
•Bypass diodes are factory installed to protect cells from damage due to
localized shading in high voltage arrays
Easy Installation
•Large junction box features, hinged door,
•cage clamp mechanism
•two waterproof cable clamps to reduce installation time and expense
Specs
| Typical Power |
75 watts |
| Minimum Power |
n/a |
| Configurable Voltages |
12V |
| Voltage at Peak Power |
17.0V |
| Current at Peak Power |
4.45A |
| Short Circuit Current |
4.75A |
| Open Circuit Voltage |
21.4V |
| Bypass Diodes Provided? (block reverse current) |
Yes |
| Connection Method |
in junction box |
| Dimensions (L x W x D) depth w/o junction box |
46.8 x 20.9 x 1.5 inches |
| Warranty |
20 years |
Item Number: BP275
'99 Catalog Price: $495.00
Your Price: $431.00
Shipping Weight: 17 lbs.
This item normally ships 5-10 business days after order acceptance.
Ground shipping and handling charges to the continental US for this item when
ordered alone are approximately $20.
