NOTE THAT THE DETECTOR 12 CONTROL SYSTEM DESCRIBED ON THIS PAGE HAS BEEN DISCONTINUED AND REPLACED WITH THE POWER COMMAND CONTROL PCC2100.
CLICK HERE FOR A DETAILED DESCRIPTION.

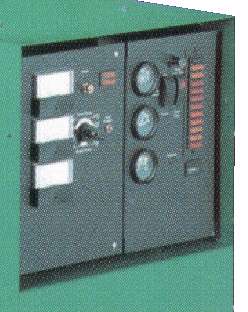

Click thumbnail image above to enlarge
(some optional features shown)

Detector™ 12 Control with AC Meters
Cummins® Gensets

The Cummins Detector 12 Control System is an enhanced engine mounted control panel that provides more features than the standard control provided on most gensets.  See the list below for a comparison.



Control Comparison
Features of Standard and Detector controls may vary slightly with size and model of Cummins genset

  Detector Control System Standard Control
Automatic Remote Starting yes
(2 wire, 12V)
yes
(with 2-wire remote option)
Control of starting and shutdown yes yes
Components Designed to withstand vibration levels typical in gensets yes yes
Run-Off-Auto Switch yes yes
Field Circuit Breaker yes yes
Crank Timing Control yes yes
High Coolant Temperature Shutdown yes (red light) yes
Low Oil Pressure Shutdown yes (red light) yes
Overcrank Shutdown yes (red light) yes
Overspeed Shutdown yes (red light) yes
Two customer selected faults yes (red light) no
Pre-alarm high Coolant Temperature yes (yellow light) no
Low Coolant Temperature yes (yellow light) no
Pre-alarm low oil pressure yes (yellow light) no
Low Fuel yes (yellow light) no
Run indicator yes (green light) no
Total indication lights 12 none
Lamp test switch yes no
Coolant temperature & oil pressure gauges yes no
(optional)
AC ammeter & voltmeter yes optional
Frequency meter/tachometer yes no
Running Time Meter yes yes
DC voltmeter yes no
Fault Reset yes yes
Voltage adjust rheostat yes (5%) no
Common alarm contact for remote annunciation yes no
Individual 0.5 amp relay contacts for customer remote monitoring (form C contact for each of 12 points) yes no
Meets requirements of NFPA 110 yes no
