click on thumbnail image above to enlarge
(this product shipped in 2 pieces as shown)
Manual Transfer Switch
Pro/Tran® by Reliance Controls
Easy to install and operate, connects portable generator to residential load center. Allows manual transfer of individual loads to prevent overloading generator. Each individual circuit can be transferred separately and only as needed. Now required by Article 702.6 of the 2002 National Electric Code to prevent inadvertent backfeeding of electric power from generator into utility system which can be a safety hazard.
Click here for helpful installation suggestions for flush mounting switches on finished walls.
Click here to watch a video explaining how to install and operate the similar 6 circuit surface mount transfer switch and optional inlet box.
|Total Capacity||7500 watts, 30 amps|
|Single Pole Circuits - 120VAC||(6) 15 amp|
|Double Pole Circuits - 240VAC||(2) 20 amp with handle tie|
|Generator Connection||hard wire internally|
|Generator Load Watt Meters||Yes|
|Enclosure Type||flush mounted|
|UL Short Circuit Withstand Rating||5,000 amps|

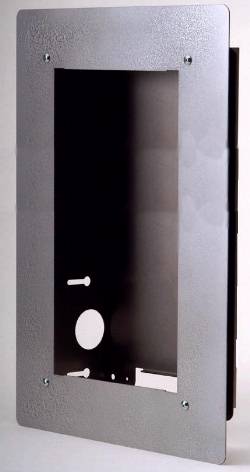

Note that this product is normally shipped in two pieces for customer assembly consisting of surface mount 31410C switch and KF10 flush mount kit.
Each circuit provided with non-defeatable (break-before-make) double throw switch protected with a resettable circuit breaker. Dual watt meters provided for balancing generator load. The 1 x 24 inch flexible conduit is pre-wired for easy connection to existing residential load center panel. Installs in less than an hour, without pulling the electric meter or installing a sub-panel. Suitable only for circuits protected with up to 20 amp breakers or fuses. UL listed and CSA certified. Exclusive Pro/Tran® Reliance Controls 24 month warranty. Made in USA
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Cordset for connecting generator PC3010, PC3025 or PC3050
Inlet box PB30 or PR30
Straight blade plug modification for generators without twist-lock receptacle MOD6-20P
Item Number: F31410C
Discounts begin at 5% for qty 5 and will be deducted by cart!
Price last updated 11/30/2010
Shipping Weight: 19 lbs.
This item normally ships in approximately 1-2 weeks or less.
