GL14000
Click thumbnail images to enlarge

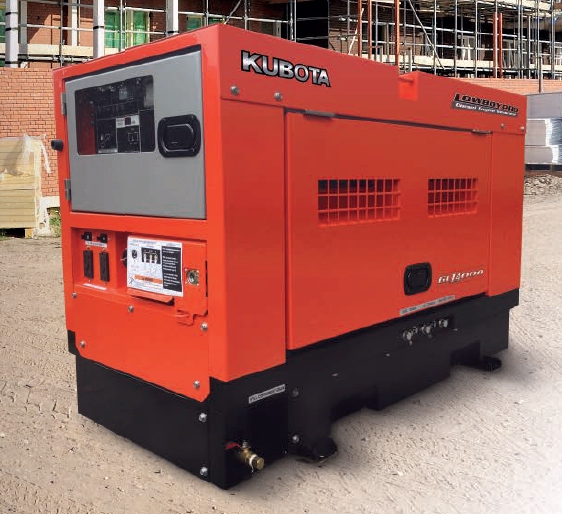

Kubota Generator Set
Mobile Enclosed Diesel
14000W, 12000W rated
120/240Vac single phase
The Kubota GL14000 generator delivers exceptional power from Kubota’s own D902 diesel engine. Compact, reliable and innovative, the GL14000 is ideally suited for a wide array of applications.
Durable Generator, Reliable Power
For generations, Kubota engines have been renowned for their superior durability and dependable reliability. The GL14000 is no exception. Quality components and simple-yet-innovative engineering ensures power when and where you need it.Compact Design
Direct engine coupling and unique cooling system enhance the GL14000’s low profile that allows it to fit in more spaces.Easy One-Side Maintenance
All maintenance locations can be accessed from a single, large access panel on the side of the generator: oil gauge, oil fi lter, oil fill, fuel filter, water tank, battery and air cleaner. Engine oil and coolant drain extensions are included to help with regularly scheduled fluid changes.The Quietest GL Series, Generator Yet
The LowboyPro includes numerous features that reduce overall noise levels.
- The large-capacity radiator reduces fan-related noise by direct coupling the crankshaft with a slower-speed fan.
- The large-capacity, built-in muffler reduces exhaust noise.
- A longer air-cleaner hose dampens air-suction noise levels.
- The inlet vent is strategically placed and specifically designed to allow minimal noise from the enclosure’s opening.
Highly Resistant to Corrosion
From top to bottom, the GL14000 is designed to resist corrosion in wet weather and other extreme conditions. A dual-layer surface coating that covers critical components includes the following technologies:
- Electro deposition coating covers the edges uniformly, which provides corrosion prevention that is difficult to achieve with other technologies.
- Electro deposition provides an excellent base coat for the exterior powder coat.
- External powder coat provides a hard finish that further resists corrosion and maintains its appearance in severe working conditions.
Improved Reliability
The new GL14000 alternator is optimized to generate more magnetic force with fewer turns, which improves long-term reliability and durability. Numerous alternator features help to increase durability and enhance performance.
- Varnishing bundles individual coils together within the interior winding layer, greatly improving durability.
- The surface of the coil layer is coated with a second layer of varnish to protect against dust and moisture.
- The varnish-coated wires are wound at a constant pitch, increasing protection against the wear and tear inherent in high-speed rotation components.
- The entire alternator is finish-coated with another varnish layer that enhances moisture and water resistance while ensuring excellent performance in extreme weather.
LCD Display
The new GL14000 includes a LCD screen that shows a wide range of electrical and engine parameters.This generator is not CSA Certified and therefore cannot be shipped to or used in Canada.
Specifications
Model Number | GL14000 | |
Electrical Power Output (1.0 pf) | 14.0kW standby 12.0kW prime |
|
Voltage (single phase) | 120/240Vac | |
Current (Amps @ 120/240V single phase) | 50.0 | |
Output Connections/Receptacles | (4)5-20R GFCI (1)50A twist-lock terminal block |
|
Engine | Kubota D902 |
|
Power Rating at 3600 rpm (continuous hp) | 10.9 | |
Fuel Consumption - gallons per
hour (at 25% / 50% / 100% load) |
0.66/0.85/1.03/1.29 | |
Dimensions (L x W x H) inches | 51.6 x 25.2 x 35.2 |
order 14kW GL14000 below | |
Item Number: GL14000 Price: $9,664 Price last updated 12/10/2021 Shipping Weight: 1003 lbs. This item normally ships in approximately 25 weeks or less. If not paying by credit card contact NoOutage before placing order. |
.
