Page last updated 10/16/05
DISCONTINUED AND REPLACED
BY WHISPER-200
CLICK HERE TO GO TO NEW PRODUCT PAGE
wind
EZ-Wire
EZ-Wire
EZ-Wire

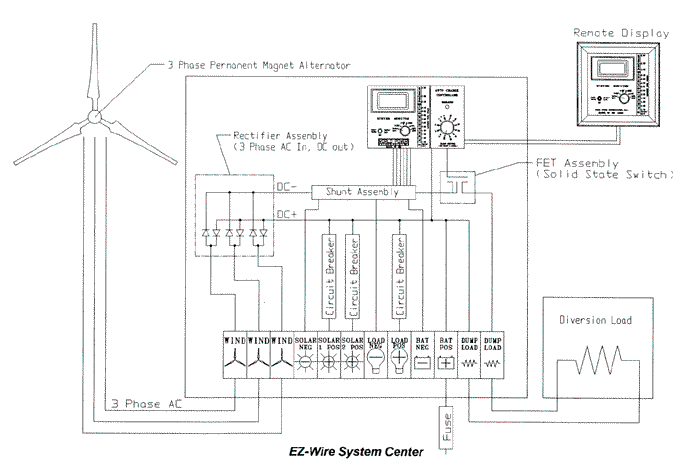

EZ-Wire Sample Wiring
KW Output KWH Output

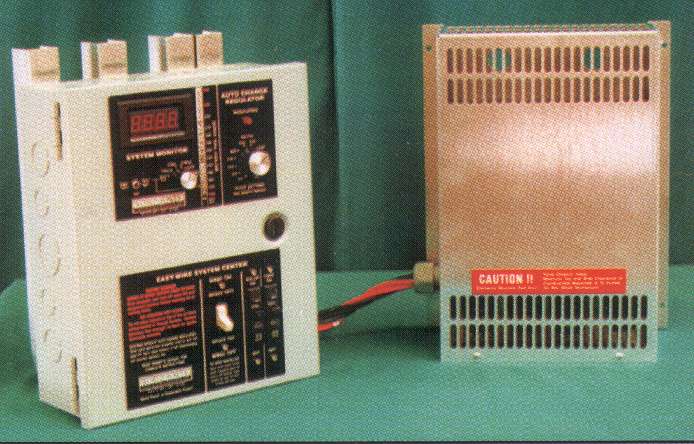

turbine Outside

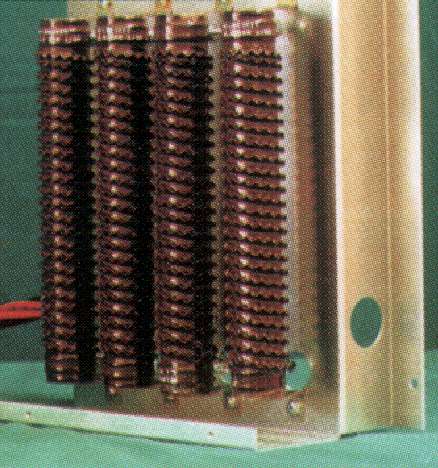

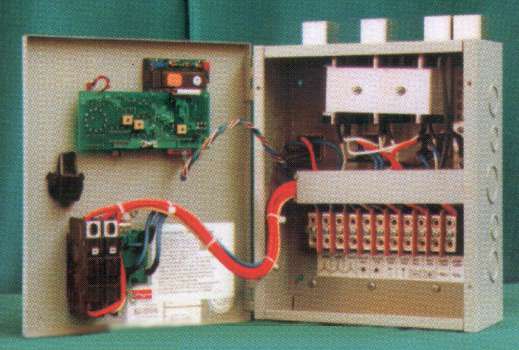

Inside Diversion Load

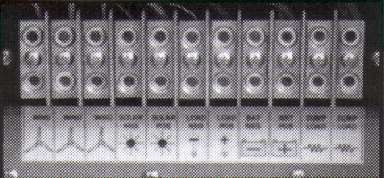

Terminals Diagram
Plot
Plot
click on thumbnail image above to enlarge

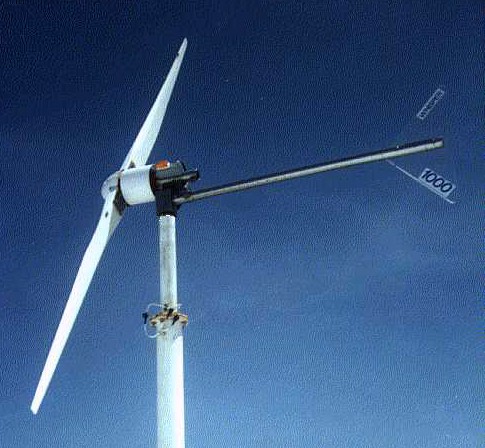

Whisper 1000W Wind Generator
with supplemental solar input connection
and long distance capability
Whisper wind generators are made by World Power Technology.
These are designed for gusty wind areas and marine environments. Main frame rotor
shaft and boom are stainless steel. Tilt-up governor does not rely on springs and
needs no adjustment. Rotor is made of high strength light weight injection-molded
material that is fiber reinforced. Bearings are sealed and permanently
lubricated. Generator comes with the EZ-Wire System Center which provides battery
charge control for the wind generator plus other functions. Made in USA.
Turbine is a cast aluminum design that incorporates a unique
Patented side furling "angle governor" for over-speed protection. Output
of the turbine is three-phase AC power. Power is transmitted to the EZ wire where it
is converted to DC. Voltage is switchable in the field.
This unit is similar to the H80-PV except that the generator is
designed to produce a higher 220 volts ac. The EZ-Wire System Center is supplied
with a step-down transformer to reduce the voltage at the receiving end. This higher
voltage between the generator and the receiving end reduces the current and voltage drop
allowing distances of over 1000 feet between the two locations.
Specifications
Click for complete instruction book
in pdf format (large 1.4M file)
Wind Generator
Specifications |
| Rated Power Output |
1000 watts at 28 mph |
| Output Voltage(s) |
12, 24, 32 or 48 Volts |
| Rotor & Blade Configuration |
10 ft diameter rotor, 3 blades
fiberglass carbon fiber |
Output Profile vs. Wind
Velocity:
7 mph
10 mph
20 mph
25 mph
30 mph
45 mph |
Output:
0 watts (turbine startup)
100 watts
780 watts
970 watts
1000 watts
800 watts |
| Standard Mounting |
2-1/2 inch schedule 40 pipe |
| Tower Top Weight |
65 lbs |
| Warranty |
2 years |
EZ-Wire System Center
Specifications |
| Maximum Wind Generator Input |
80 amp dc rectifier (Note 1) |
| Other Input(s) such as Solar PV, engine generator, battery charger,
etc. |
40 amps dc max, (1) 40 amp breaker provided |
| Load Output(s) |
40 amps dc max, (1) 40 amp breaker provided |
| LED Metering |
state of battery charge
battery volts
net battery amps
wind generator amps
other sources amps
load amps |
| Diversion Load Required |
1600 watts (Note 2) |
Notes:
1) Generator actually has 3 phase ac output which is converted to dc by bridge
rectifier.
2) During windy conditions when batteries are fully charged excess power is
automatically switched to the diversion load.
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Manufacturer recommended lightning arrester LA-302-DC
Tower kits TOW-24-WHI, TOW-30-WHI,
TOW-50-WHI, TOW-65-WHI or TOW-80-WHI
Bare augers TOW-AUG-36, TOW-AUG-48,
or
Galvanized augers TOW-AUG-36G, TOW-AUG-48G, TOW-AUG-60G
Item Number: H80HVT
List Price: $3,595.00
Your Price: $3,250.00
Shipping Weight: 100 lbs.
This item normally ships 5-10 business days after order acceptance.
Ground shipping and handling charges to the continental US for this item when
ordered alone are approximately $55 to $63.
