New Technology
Finally provides a more powerful source of water pumping than the traditional
mechanical windmill. Southwest Windpower's Whisper wind turbine has revolutionized
wind powered water pumping systems with its Wind-Electric Water Pumper. Just
imagine, four times the water in the same wind, without any of the maintenance worries
often associated with mechanical windmills. No packing seals to change or bearings
to grease. All that is required is an annual inspection!
How It Works

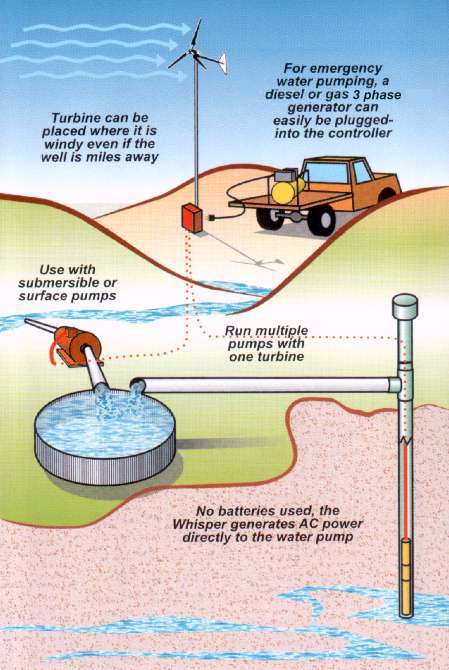

Incredible flexibility and performance; put the wind generator where the wind is
and the pump where the water is, even if they are miles apart! The wind electric
water pumper can deliver water at a fraction of the cost of windmills, solar PV or
gas/diesel engines. The Wind-Electric Water-Pumper uses any conventional
off-the-shelf 3/4 hp three-phase 230 VAC centrifugal submersible or surface pump.

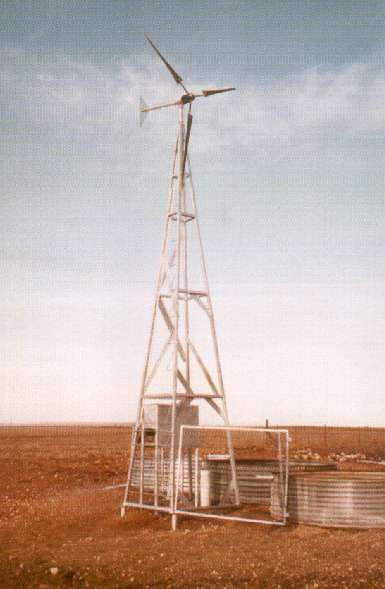

Installation can be as simple as installing the Whisper wind turbine on an existing
windmill tower and connecting its three-phase AC wires directly to the pump through the
controller.
Performance
Configuring a system is simple. Compare your needs with each of the pump
options. Determine your wind speed from a local weather bureau or the wind atlas.
(See our Wind Power Information page.) Then use the

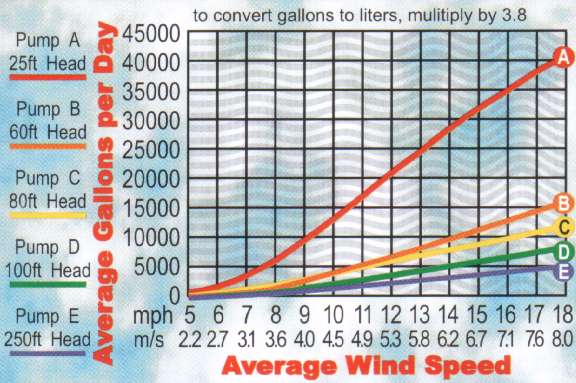

gallons per day plot above to determine flow.
Wind-Electric Water Pumping Kit

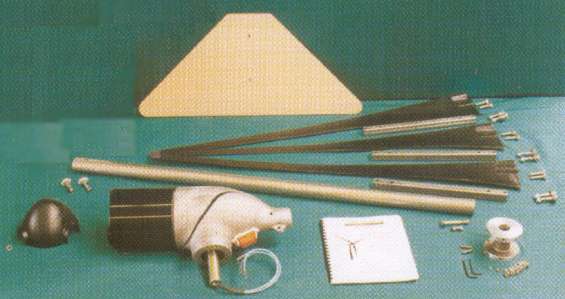

Kit includes Southwest Windpower's Whisper H80 1000 watt high voltage wind turbine
and 3-phase high voltage pump controller. You will also need a tower (kits available
in 24', 30', 50', 65' and 80' heights), 3/4 hp three phase 230VAC pump motor, standard
pump end, electrical wire, water tubing. Entire system can be installed in a day
without requiring special tools or equipment.

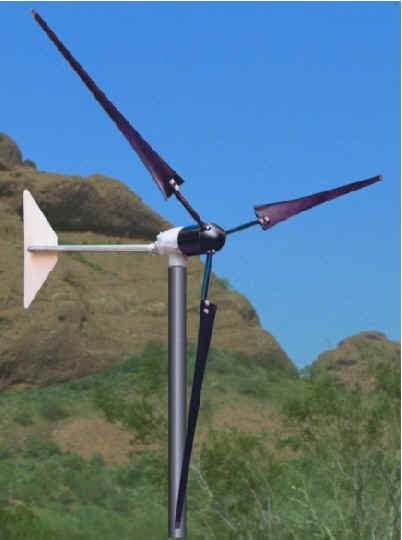

Turbine Construction
Whisper wind generators are made by World Power Technology. These are
designed for gusty wind areas and marine environments. Main frame rotor shaft and
boom are stainless steel. Tilt-up governor does not rely on springs and needs no
adjustment. Rotor is made of high strength light weight injection-molded material
that is fiber reinforced. Bearings are sealed and permanently lubricated.
Turbine is a cast aluminum design that incorporates a unique Patented side furling
"angle governor" for over-speed protection. Output of the turbine is
three-phase AC power. Made in USA.
Specifications
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Manufacturer recommended lightning arrester LA-302-DC
Tower kits TOW-24-WHI, TOW-30-WHI,
TOW-50-WHI, TOW-65-WHI or TOW-80-WHI
Bare augers TOW-AUG-36, TOW-AUG-48,
or
Galvanized augers TOW-AUG-36G, TOW-AUG-48G, TOW-AUG-60G
Item Number: H80WP
Your Price: $2,403.00
Shipping Weight: 98 lbs.
This item normally ships 5-10 business days after order acceptance.
