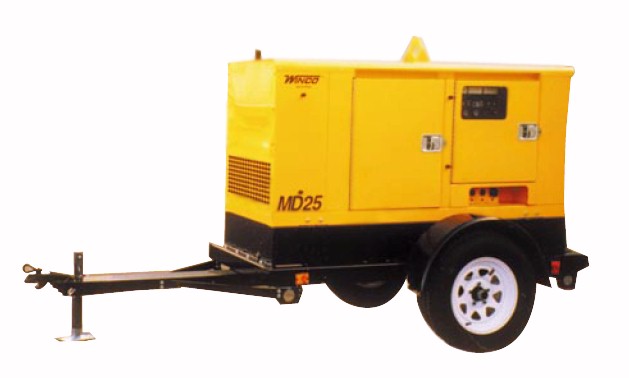

Diesel Generator Set
Mobile DOT trailer Mounted
20KW, switchable voltages
Winco's mobile line of trailer
mounted diesel generators are perfect when you require backup power at
multiple sites with the flexibility different single or three phase
voltages. Unlike permanently-mounted standby generators, these mobile
units usually do not require permits to use or install. Available in
standard sizes or 20kW, 36kW and 70kW which are adequate for large residences
and small commercial/industrial applications. Completely self- contained
with fuel tank and sound attenuation enclosure.
Features
User-friendly operation and maintenance features
include:
* Control panel includes full instrumentation: voltmeter, ammeter,
frequency meter, phase selector switch
* Engine instrumentation: DC voltmeter, oil pressure gauge, coolant
temperature gauge, hour meter
* Automatic safety shutdowns with annunciator lights: low oil pressure, high
coolant temperature, overspeed, overcrank
* Emergency stop switch
* Standard voltage selector switch: 120/240V 1-phase or 3-phase, 120/208V
3-phase, 277,480V 3-phase
* Power terminals protected with safety interlock for operator protection
* Remote start
capabilities
* Microprocessor engine control
* DOT trailer light package
Specs
| Power Ratings |
25kVA/20kW at 277/480V 3-phase wye
25kVA/20kW at 120/240V 3-phase delta
25kVA/20kW at 120/208V 3-phase wye
20kVA/20kW at 120/240V 1-phase |
| AC Motor Starting Capability |
10 hp code F |
| Voltage Regulation |
+1% |
| Frequency Regulation (no load to full load) |
5% |
| Engine |
Kubota V2203BG liquid cooled |
| Cold Weather Starting aid included |
glow plug |
| Sound Level (dbA at 7 meters) |
68 dbA |
| Fuel tank Capacity |
45 gallons |
| Run-time |
37 hours at half load
23 hours at full load |
| Axle Type/ Capacity |
single/3500 lb |
| Hitch |
1-7/8" to 2-1/8" ball, fixed
height |
| Dimensions (L x W x H) |
129" x 60" x 69" |
| Warranty |
1 year |
Remember when selecting a diesel generator avoid extreme
oversizing. For proper performance you need to be able to achieve more than 30% of
full load rating on a regular basis. Otherwise you risk wet-stack
problems and other issues.
