USP's model PFR4-EC is the "smartest" most comprehensive
automatic voice/pager power failure dialer available. Representing an
exciting new level of achievement, it combines technologically advanced
features, ease of programming and reliable operation in a compact, unobtrusive
dialer. Installation and hookup are quick and easy. The PFR4-EC
not only provides power failure and restoration notifications. It also
includes two spare input channels for monitoring external contacts or
voltages.
These spare channels can be used to notify of any condition that can
be monitored via a dry contact such as...
+ standby generator start
+ automatic transfer switch position
+ sump high water level or flooding - may require optional sensor
+ abnormal high or low temperature - may require optional sensor
+ security break-in (windows or doors) - may require optional sensor
This advanced Power Failure Restore Voice Dialer allows you to remotely monitor
any location for loss of power and power restoration and two other conditions.
This item is made in China and assembled, configured and tested in the
USA.
Features

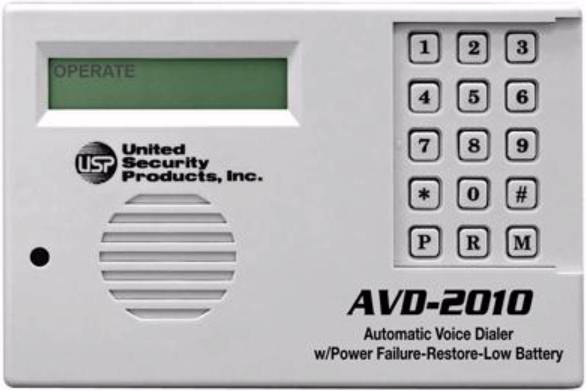

* 2 line LCD display and 15 key pad
* 4 channels total (2 for power monitoring, 2 spare)
* 5 delay jumper settings (3 seconds, 15 minutes, 2 hours, 12 hours, 24 hours)
* separate phone numbers can be assigned to each of the 4 channels
* line seizure (can disconnect phone line from all other users when dialing
out)
* spare channels can be actuated by normally open (N.O.) or closed (N.C.)
contacts, momentary or continuous
* spare channels can also be actuated by a 5-28Vdc pulse or level
* up to 4 prerecorded messages
* up to 8 phone numbers can be called (max of 50 digits including pauses for
each number)
* user programmable 1-9 dialing attempts
* busy line and no answer detection
* user programmable 1-3 message repeats in each phone call
* 51 seconds max total of all recorded outgoing messages
* user programmable 1-199 seconds entry and exit delays

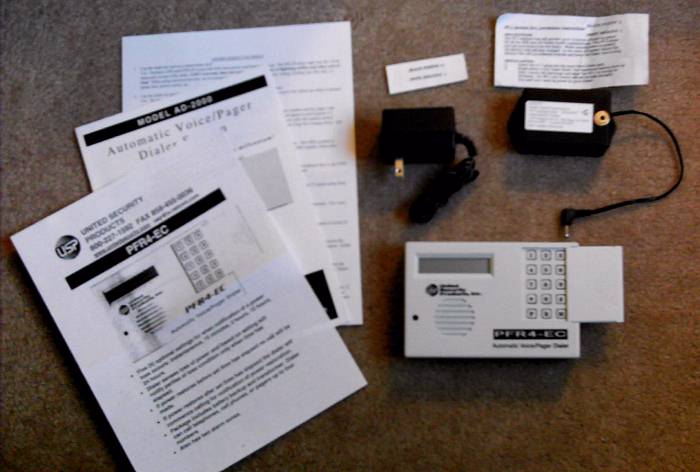

* external 12 hour rechargable battery pack included
* can wire to external 12Vdc source for unlimited backup
* EEPROM memory remembers program even for power outages longer than battery
backup duration
* 4 run modes available: program, test, operate, off
Setup
* open case and connect line transformer (wall adaptor) to
designated terminal points
* set delay jumper J1
* close case, plug in 12Vdc battery pack for 12 hours of backup operation
* connect inputs to 2 spare channels if desired (add resistors if using
voltage inputs)
* power up system
* program phone numbers, types of numbers, dial attempts, message repeat
counts
* record voice ID message
* record outgoing messages (OGM)
* program 4 channels: enable/disable, entry/exit delays, N.O./N.C. type
contact,
momentary/continuous actuation, numbers to be dialed, messages
used
* test system
* change to operate mode
