THIS PRODUCT HAS BEEN
DISCONTINUED AND SUPERSEDED
BY P220100 AND P270100
Standby Generator Set
Coleman PowerStation with Honda engine
25000W standby rating
(on LP fuel, must derate for natural gas)
The easy way to protect you and your family
or small business...
Without a doubt we live in an electricity dependent culture, one that understands the need for a reliable and constant supply of power.
When power outages occur they leave people feeling insecure and unprotected.
Coleman Powermate® provides security and protection from power outages with a complete array of quiet & dependable backup power solutions. With backup power, your home
or business stays warm & well lighted, so you and your guests or customers
stay comfortable. Business operations can continue.
Sump and water pumps keep running to protect against flooding or freezing.
Food stays fresh in the refrigerator. And most importantly, the transfer of power is fully automatic.
Coleman Powermate and Honda Engines
Coleman PowermateYou can have peace of mind, knowing that during a power outage your
Coleman Powermate PowerStation will activate to provide the power necessary to run vital
electrical loads, such as:
| - refrigerator/freezer |
- microwave |
- lighting |
- heating/air conditioning |
| - security system |
- computer |
- pumps |
- entertainment center |
Features of Coleman Powermate Backup Systems...
AUTOMATIC - Continuously monitors your electrical system and turns on automatically if power goes out. Turns itself off when power is restored.
CONVENIENT - Installed outside your home, takes up approximately the same space as a central air unit.
RELIABLE - Conducts bi-weekly self tests so you're assured of reliable operation.
* Runs on vapor propane, or natural gas. Specify when ordering.
* High quality alternator with skewed laminations designed for
low sine wave total
harmonic distortion (THD) and is safe for sensitive electronic loads.
* Engine has high motor starting reserve capability.
* Advanced digital control manages generator set
operation and fault detection.
* Sound attenuated weather enclosure designed for easy service
access.
* Fully enclosed muffler integral to enclosure.
* Full pressure lubrication, oil cooler and spin-on oil
filter.
* Engine driven battery charger.
* Long standard warranty period.
Specifications
BEING REVISED 2ND QUARTER 2007 TO MEET
NEW EPA REGULATIONS
Click here to view a detailed
spec sheet on this product in pdf format.
| Engine Make |
Ford model LRG425 |
| Engine Type |
4-cycle, 4 cylinders, in-line,
liquid cooled |
| Engine Compression Ratio |
9.37 to 1 |
| Engine Displacement |
2.5 liters |
| Engine Speed |
1800 rpm at 60Hz |
| Engine Governor |
electronic |
| Cooling Air Required |
4500 cfm |
| Oil Sump Capacity |
4.5 qts. with filter |
| Sound Level |
<66dbA @ 7 meters |
| AC Output Voltage |
120/240VAC ±1.5%, 1 phase
120/208VAC ±1.5%, 3 phase
120/240VAC ±1.5%, 3 phase
277/480VAC ±1.5%, 3 phase |
| AC Output Frequency |
60Hz ±0.5% |
| AC Output Current - rated (single phase) |
104 amps rated on LP
93 amps rated on natural gas |
| Temperature Range of Operation |
-20F to 105F |
| AC Output Power at 77F(25C) and 0-500 ft elevation |
25.0kW rated on LP
22.5kW rated on nat.gas
Derate total power 4% for each 1000 ft above 500 ft elevation and 1% for each
10F increase in temperature above 77F and 1.5% per 10% RH above 60%.
For elevations above 8000 ft consult factory. Single phase units are
rated 1.0 pf, 3 phase units are rated 0.8 pf. |
| Alternator |
4-pole 1800 rpm, 2/3 pitch winding for
reduced harmonics (<3.5%), low wave form distortion (<5%),
externally regulated solid state automatic voltage regulator design (+1.5%),
tropicallized windings. |
| Motor Starting Capability (single phase) |
43.5kVA @ 70% voltage |
| Chargers |
90 amps regulated, engine driven
alternator
3-stage 6A battery charger, powered from 120Vac |
| Battery |
12V group 26, 550 CCA at 0F (not included) |
| Options Available |
- engine block heater (included)
for reliable starting below freezing
- automatic transfer switches |

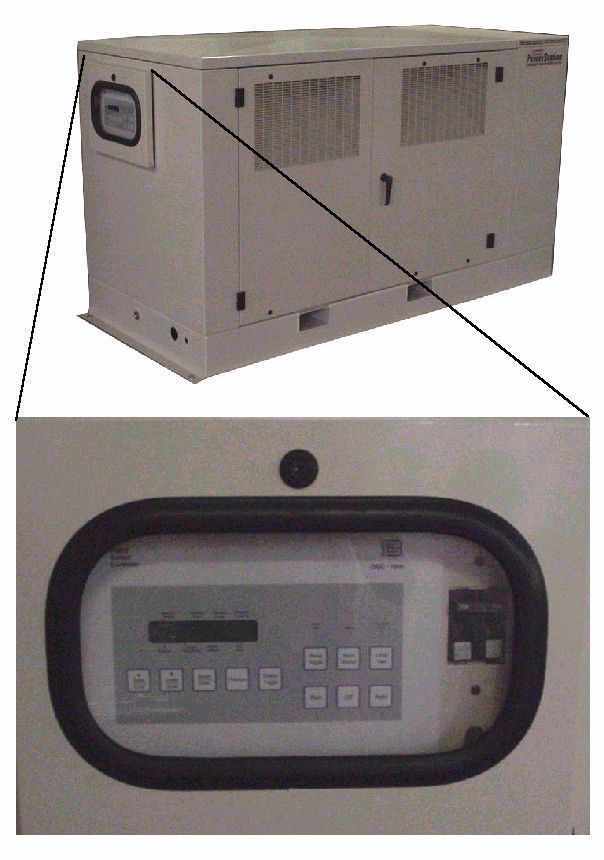

| Control System (digital control) |
PROTECTION&MONITORING
- 2-wire remote starting
- oil pressure monitoring
- overcrank protection
- on/off/auto switch
- oil pressure protection
- emergency stop input
- overtemp. protection
- battery condition mon.
- overspeed protection
- engine cooldown
- main line circuit breaker
- field programmable
- RS232 output
- programmable relay output |
METERING:
- generator current
- engine oil pressure
- watt
- power factor
- battery voltage
- generator voltage
- coolant temperature
- VA
- watt-hour
- generator frequency
- engine rpm
- maint. interval timer
- engine run time |
| Fuel Consumption - LP Vapor |
25% load: 34 cu.ft/hr
50% load: 67 cu.ft/hr
75% load: 101 cu.ft/hr
full load: 135 cu.ft/hr |
| Fuel Consumption - natural gas |
25% load: 85 cu.ft/hr
50% load: 169 cu.ft/hr
75% load: 254 cu.ft/hr
full load: 304 cu.ft/hr |
| Housing |
powder coated almond color over 16 ga steel
with sound attenuating material factory installed, no exterior fasteners |

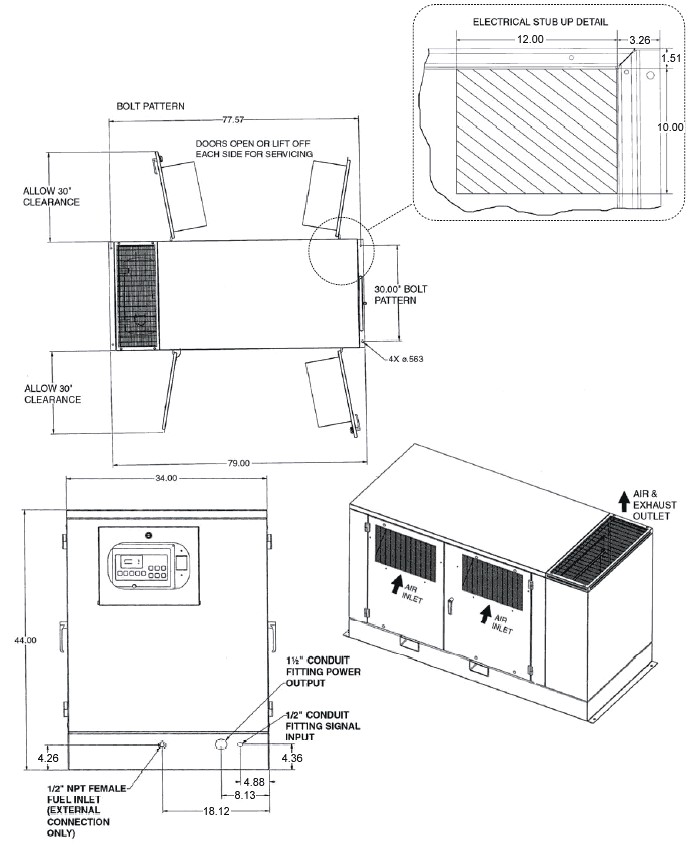

| Dimensions L x W x H |
79" x 37" x 44" with base |
| Weight |
1400 lbs. |
| Warranty |
3 years/1500 hours |
Note that any standard 2-wire control automatic transfer
switch will work with this genset with ratings from 200 amps or higher, both indoor and outdoor
rated. Switch has to be ordered separately and cost is not included in genset
price.
Click here to see switch cross reference list.
12Vdc positive fuel lock-off solenoid valve for added safety
is included with genset. However, the flexible
fuel line and fuel strainer (if desired) are not included and should be
provided by gas installer.
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Automatic
Transfer Switch
Remote Annunciation Panel #RDP110 (call for quote)
Digital Panel Upgrade #CP1000 (call for quote)
Item Number: PM402511
Your Price: $9,794.00
Shipping Weight: 1525 lbs.
This item normally ships in 2-3 weeks direct to you from the factory
with free freight.
