PowerShelter III

PS3-closed-unpainted.jpg (161553 bytes) PS3-open16.jpg (32310 bytes) PS3-brownbrown.jpg (13115 bytes) PS3-sandwhite.jpg (12543 bytes) PS3-sand-soundat.jpg (49298 bytes) PS3-colorchart-names.jpg (87216 bytes) PS3-dims.gif (10603 bytes)
closed view
unpainted
open view
unpainted
single paint color two-tone paint finish sound attenuated more
pictures
38+ paint colors to choose from dimensions

Click thumbnail image above to enlarge
(NOTE: This product consists of the enclosure.  Generator, transfer switch, wiring, etc must be purchased separately.)
CLICK HERE FOR MORE PICTURES


Generator Enclosure

Complete enclosure for your portable generator.

The new PowerShelter™ III is designed to house your portable generator outdoors for both storage and operation.  This product has some unique features that are not offered by anyone else.  Overall dimensions are 74" L x 33" D x 34" H providing ample room for most portable generator sizes.  This is so much better than all those other schemes to protect your portable generator from bad weather, which is usually when you need it the most!  No more struggling with trying to adapt a garden shed, or making a special removable roof, or even attempting to use a tent.  The PowerShelter III comes assembled ready to drop on your pad.



Design Features

  • Weather protected design for storage, maintenance and operation of generator
  • High temperature cutout provided to automatically shutdown generator if fan cooling is lost (reduces chance for engine damage or fire if fan is blocked or stops running)
  • Large ventilation openings to dissipate engine and exhaust heat
  • Enclosure made from non-flammable aluminum that will never rust
  • Vents equipped with screened louvers or hoods to keep out rain, birds, rodents and most insects
  • Suitable for air-cooled gasoline, diesel, natural gas or propane fueled gensets.  Call if your engine is liquid cooled (has a radiator).
  • High capacity fan to cool engine and alternator
  • Can be used with recoil or electric start models
  • Fan powered from spare 120VAC outlet on generator
  • Comes with detailed assembly and installation instructions
  • Wire cage fan guard that meets OSHA requirements is provided inside enclosure to reduce possibility for personal injury due to moving fan blades
  • Sound attenuated version for noisy engines that significantly reduces sound levels by about 7 db(A).  Includes end hoods and internal sound absorbing panels.
  • Mounts on (10)16" patio blocks or a concrete pad (installer must provide mounting)
  • Universal exhaust adaptor and flex pipe included for strapping on muffler to redirect hot gasses out to fan
  • Large front door and top cover lift-up for easy access to generator

OTHER ADVANTAGES:
  • Two-point locking T-handle to keep your generator secure from theft
Storing your generator in this enclosure frees up storage space in your garage, shed or basement for other uses
  • Electrical plug connections to generator are made in a dry weather-protected environment which reduces shock hazards during bad weather

Makes it easier to startup and connect your generator during a power outage because it is always ready to go -- no dragging generator outside during the outage or bad weather to use it.



PowerShelter™ III is currently shipping fully assembled and ready to drop on your pad.

If the sound attenuated option is ordered the hoods are shipped inside for attachment in the field.

New improved paint process now uses high grade automotive finish.  The basic 38 named colors are mixed to match the RUST-OLEUM colors available in 12oz spray cans at most retailers.  This makes for easy availability of touch-up paint if it is ever necessary.  We also can match any paint sample color chip mailed to us or any of the thousands of PANTONE colors.  Paint finish is optional.

Electric connection is usually made using one of three methods (click thumbnails to enlarge):
  • direct burial of UF cable with conduit stub-up inside enclosure, terminating in junction box with SOOW pig-tail for plugging into generator outlet
  • mount weatherproof outlet on outside of enclosure with SOOW pig-tail inside for plugging into generator outlet
  • cut a notch in pad under front door and temporarily lay SOOW cord on ground through notch and plug into generator outlet



DISCLAIMER
We have designed this product with safety in mind.  However, whenever fuel is used to operate an engine generator there is always a risk due to fire, exhaust gases and electric shock.  This enclosure will not completely eliminate those risks.  If a fire develops, metal enclosures such as this product will not contribute to the spread of the fire.   WARNING -- failure to follow the directions for construction and use of this product can cause serious injury to persons and property.  Read all directions fully before installing this product and use only as directed.  We DO NOT recommend that this kit be installed in any space that is part of a dwelling or attached to a dwelling.

LOCATION
If you need to prepare the mounting pad before delivery view the pad layout here and locate the pad as follows:
  * within easy wiring distance to your transfer switch
  * away from bedrooms and other rooms where engine noise could be annoying
  * at least 5 feet from any building opening such as windows, doors, vents, soffit vents, etc.
  * at least 5 feet from structures having combustible walls
  * at least 5 feet from combustible material
  * at least 5 feet clearance to any overhead structure, overhang, or tree
  * not under a deck
  * where exhaust cannot accumulate in any nearby occupied area
  * allows space to open front door and to move generator in and out
  * meets any additional requirements of your local codes and Fire Marshal
Request our document on Generator Placement which we will send you by email if you will be installing a pad before delivery of the PowerShelter III.

TRANSFER SWITCH & PANEL SUGGESTIONS:
If you do not already have a transfer switch or panel you may click here to order one from our wide selection.  You will also need to obtain any necessary building wire and a junction box locally if you wish to hard wire from the transfer switch to the PowerShelter.

PORTABLE GENERATOR SUGGESTIONS:
If you do not already have a portable generator, view our selection online by clicking here.

ALREADY HAVE A SHED?
Compare with our PowerShelter Kit II that converts a shed into an enclosure for storing and running your portable generator.

NEED MORE SPACE?  HAVE A HIGHER CAPACITY GENERATOR?
Compare with our PowerShelter IV which is an enlarged version of this product with more cooling capability.

READY TO ORDER?  HERE ARE A FEW MORE DETAILS
The shipping weight of the basic enclosure with pallet is 180 lbs.  With sound attenuation the shipping weight is 200 lbs.  The pallet weight is 68 lbs.  The enclosure is shipped with a temporary brace across the front opening and with this in place it can be lifted off the pallet for placement on your pad.  To save the lift gate delivery fee four people can easily lift the shipment off the truck.

If you elect to pickup this product in Mechanicsville VA (near Richmond) you will need a truck or trailer with a bed large enough to accommodate the 79" x 37" pallet.  The basic version will also fit in some vans if we replace the pallet with a single sheet of sheathing (outside dimensions 75"L x 33"W x 35"H).  Pickup must be by appointment only.  We are required by law to add Virginia sales tax even if you are coming from out of state.  And we will need to bill your credit card when assembly is complete and order is ready for pickup even though pickup may be later.

Approximate
Truck Freight
Costs for fully Assembled Product

click map to enlarge
Zone: E D C B A
Freight cost to commercial address with dock or fork lift: approx*
$500-$600
approx*
$400-$500
approx*
$300-$400
approx*
$200-$300
approx*
$100-$200
Adder for residential address: approx
$50
approx
$50
approx
$50
approx
$50
approx
$50

* These rates are estimates as of Feb 2013.  We always search for the best rates at time of shipment which sometimes can be significantly less.  Rates will vary depending on exact address and time of year.  Extra services such as "inside delivery" or "limited access" will incur extra charges.  When placing order select "Quote freight cost before processing" at top of checkout screen if you need a shipping quote.












Item Number: PS3
Price: $949
Price last updated 8/7/2014
Shipping Weight: 185 lbs.
This item normally ships in approximately 3 weeks or less.

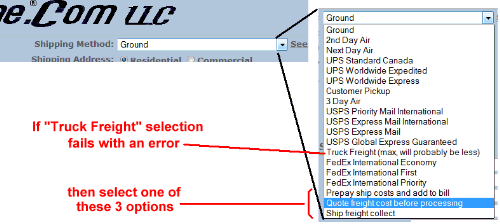

NOTE: If our shopping cart fails to calculate the freight cost then select one of the other options at the top of the address screen shown here...
