Don't let the next power outage interrupt your life!
Stay comfortable and secure with a dependable back up power system from WINCO. Providing power solutions since 1927.
Assembled in the USA.
Automatic Packaged Standby Systems Designed For Homes, Businesses and Industrial
Applications.
Why Buy An Automatic Standby System?
An automatic standby generator is a permanently installed, fully automatic emergency generator system that continuously monitors the incoming utility power supply. The system is designed to automatically furnish electrical power to pre-selected circuits in your home that supply your lighting, heating and cooling, appliances and water. Theres no need for extension cords, gasoline cans for refueling, or manual start pull ropes because WINCOs Packaged Standby System supplies back up electric power automatically.
Powered by premium engines, WINCO packaged standby systems are perfect for back up power. Sound attenuated, weather protective enclosures are made using
galvanealed steel with a powder paint finish for long life durability. The solid state control system operates the generator automatically when
signaled by the automatic transfer switch mounted next to your incoming service panel. Standard features include: cycle crank and overcrank limiting, engine start delay and engine cool down timing, hour meters and battery chargers.
Features of WINCO Automatic Standby Generators Home Standby Systems
Easily installed outside new or existing homes
Generator set and components are factory built and tested
Direct natural gas or LP fuel systems to NEMA standards
Low maintenance
Sound attenuated housings constructed of galvannealed steel with durable baked
powder paint finish keeps your generator attractive long into the
future
Emissions compliant
Critical grade silencer for quieter operation
How Does The System Work?
An automatic transfer switch (ATS) monitors your utility power and provides 100% isolation between your generator and the utility power. If the incoming power fails, the ATS will send a start signal to the generator set activating the automatic start system on the generator.
After a short start delay the engine generator will start and begin supplying the ATS with emergency power. At this time, the ATS will transfer your connected distribution panel to the generator powering up your emergency circuits.
Upon return of utility power, the ATS will transfer your connected distribution panel back to line power and discontinue the start signal to the generator. After a short cool down period the generator will stop and return to the standby mode awaiting the next power interruption.
The WINCO Standby generator uses your own natural gas or LP fuel system. This provides you with a long continuous run time and unlimited run time in the case of natural gas.
Specifications
Click here to view a detailed
spec sheet on this product in pdf format.
Note that any standard 2-wire control automatic transfer
switch will work with this genset with ratings to 200 amps, both indoor and outdoor
rated. Switch has to be ordered separately and cost is not included in genset
price.
Before purchasing this model compare it with the 27kW PSS27L
which has better fuel efficiency and lower rpm operating speed.
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Transfer switch RLCM-100,
RLCM-200, ZTX10RM4
or ZTX20RM4
Engine heater (use drop-down menu below)
vapor fuel filter strainer (use drop-down menu below)

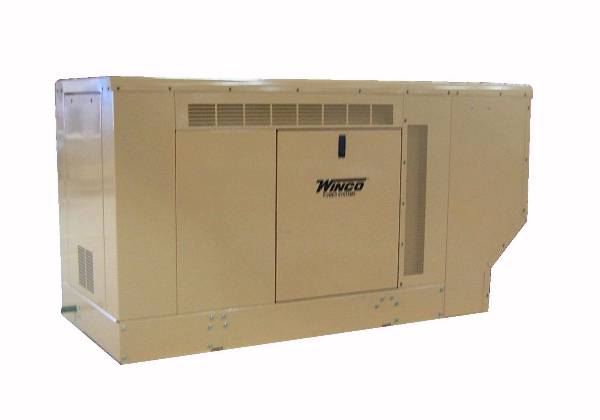

Item Number: PSS25
Your Price: $10,927.00
Shipping Weight: 1494 lbs.
This item normally ships in 1-2 weeks direct to you from the factory
with free freight.
