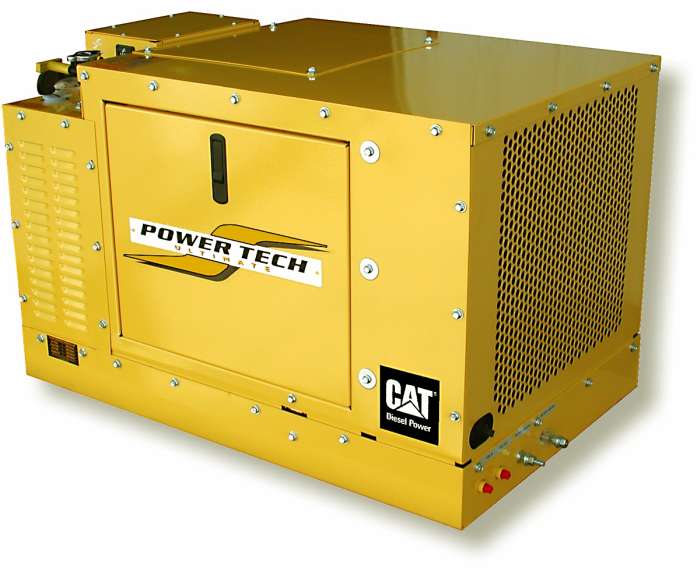

Photo Specs Features PowerTech History
Click thumbnail images above to enlarge

Generator Set
RV/Commercial Mobile Diesel
8000W rated, 120/240Vac



POWERTECH PRODUCTS ARE THE PINNACLE OF PERFECTION IN POWER GENERATION

Power Technology Southeast, Inc. was founded in 1989 with a simple mission statement. Build a quality product, deliver it to the customer on a timely basis, and support the products to the utmost of their ability. Today, PowerTech is one of the world’s leading manufacturers and suppliers of mobile diesel generators. Their product range has expanded into many diverse generator market sectors and ranges from 7KW to 200KW for standby, marine generators, worldwide military projects, gas and diesel electric vehicles. The research team at PowerTech continues to experiment, improve and develop new and more fuel efficient generators and associated products. A major goal of their mission is to develop the ultimate in environmentally friendly products that will be at the forefront of reduced noise and emissions control.

PowerTech Ultimate series RV/Commercial Mobile Diesel generators are a reliable and quiet source of electricity for any mobile need.  They feature 4-cycle water cooled Caterpillar diesel engines with high temperature radiators housed in a sound attenuating enclosure.  They are UL Listed and CARB & EPA certified.

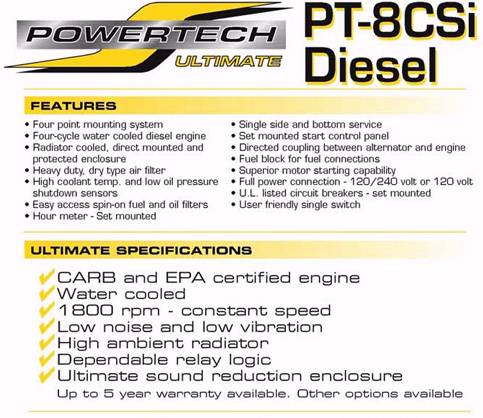

Features
• Liquid cooled Caterpillar diesel engine
• 1800 RPM – constant speed
• Low noise and low vibration
• Ultimate sound reduction enclosure
• High coolant temp. and low oil pressure shutdown sensors
• Single side and bottom service
• Superior motor starting capability
• Ultra-low fuel consumption.

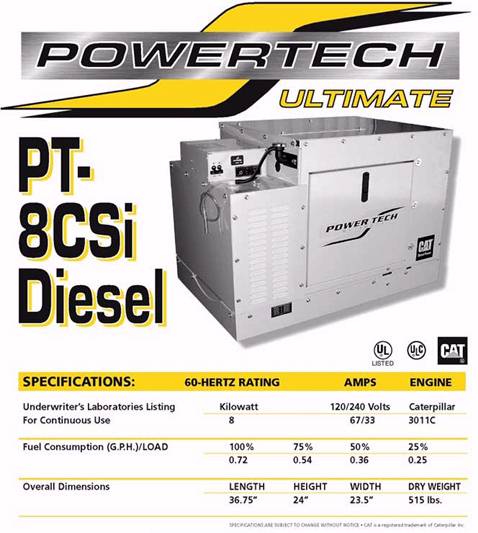

Specifications

Engine Make Caterpillar 3011C
Engine Type 4-cycle, liquid-cooled, diesel
Engine Speed 1800 rpm at 60Hz, constant speed
Fuel Consumption (60Hz) 25% load: 0.25 gph
50% load: 0.36 gph
75% load: 0.54 gph

  full load: 0.72 gph
Sound Level at 10 ft. 62dbA before installation
AC Output Voltage 120/240V full power or 120V full power
AC Output Current (120/240V) 67/33 amps
AC Output Power 8kW continuous
Controls - high coolant temperature shutdown
- low oil pressure shutdown
- hour meter
- set mounted start control panel
- UL Listed circuit breakers
Warranty 3 year/2000 hours in RV applications
1 year/2000 hours in non-RV applications
Dimensions L x W x H 36.75" x 23.50" x 24.00"
Dry Weight 515 lbs.

This unit is designed and warranted for Commercial Mobile use and Recreation Vehicle (RV) use only.





Item Number: PT-8CSi
Your Price: $7,678.00
Shipping Weight: 565 lbs.

This item normally ships within 2-4 weeks after order acceptance.

remote control panel:
wire harness:
