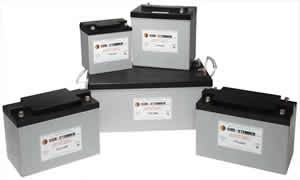

Concorde Sun Xtender
AGM Storage Battery
12Vdc
The Concorde Sun-Xtender batteries are absorbed glass matt (AGM)
sealed, maintenance free, valve-regulated, lead-calcium allow batteries
designed for deep-cycle PV applications. These batteries feature
immobilized, non-spillable electrolyte in AGM microporous glass
separators. Made in USA.
SUN-XTENDER® BATTERY DESIGN FEATURES
* Copper Alloy Terminals for improved electrical connections.
* No exposed lead terminals. This change was
incorporated to improve environmental
safety and health.
* Threaded insert terminals are recessed to prevent
short circuits across battery
connections.1
* New cover is flat top design. No protruding or
exposed vent valves.1
* Built in lifting handles, except PVX-490T,
PVX-560T, and PVX-2240T.
* Reinforced container walls to reduce bulging.
* High Impact Strength Copolymer Polypropylene Case and
Cover.
* Completely Sealed Valve Regulated Construction.
* Immobilized Electrolyte Non-Spillable.
* Maintenance Free Design Never Requires Watering.
* Absorbed Glass Mat (AGM) Micro-porous Glass Separators
retain electrolyte.
* Flame Arresting Pressure Regulated Safety Valves.
* UL Recognized Systems Component.
* Positive Plates - Proprietary Lead Calcium Alloy-
Negatives Plates - Lead Calcium.
* Low Self Discharge Rate Approximately 1 % per month at
25 C (77 F).
* Operate over a Wide Range of Temperatures from -40 C
(-40 F) to +72 C (+160 F).
* Classified as "Non-Spillable Battery" for
transport. Complies with DOT HMR49,
Non-Hazardous Materials.
1 Threaded Insert "T" type Features.
Specs
applicable to all PVX models
| Initial Charge or Recharge |
14.22 to 14.40Vdc @ 25C |
| Full Charge Termination (@ 25C) |
14.40Vdc |
| Float Charge |
13.20 to 13.32Vdc @ 25C |
| Temperature Compensation (0C to 40C) |
+/-3.75mV per cell/degrees C @ 25C |
| Equalize |
14.40Vdc |
Expected Life Cycles vs. Depth of Discharge
(@ 1 hour rate, 25C) |
5200 cycles @ 10% depth of discharge
1850 cycles @ 30% depth of discharge
1050 cycles @ 50% depth of discharge |
| Self-Discharge Rate |
approx 1% per month @ 25C |
Model Numbers
| Part Number |
V
|
Dimensions |
Wt
lb
|
Nominal Capacity (Amp-Hours) |
Price
$ US
free frt |
Add
to Shopping Cart |
| L |
W |
H |
1hr
Rate |
2hr
Rate |
4hr
Rate |
8hr
Rate |
24hr
Rate |
48hr
Rate |
72hr
Rate |
120hr
Rate |
| PVX-340T |
12 |
7.71 |
5.18 |
6.89 |
25 |
21 |
27 |
28 |
30 |
34 |
36 |
37 |
38 |
$163 |
|
| PVX-420T |
12 |
7.71 |
5.18 |
8.05 |
30 |
26 |
33 |
34 |
36 |
42 |
43 |
43 |
45 |
$191 |
|
| PVX-490T |
12 |
8.99 |
5.45 |
8.82 |
36 |
31 |
39 |
40 |
43 |
49 |
52 |
54 |
55 |
$218 |
|
| PVX-560T |
12 |
8.99 |
5.45 |
8.82 |
40 |
36 |
45 |
46 |
49 |
56 |
60 |
62 |
63 |
$249 |
|
| PVX-690T |
12 |
10.19 |
6.60 |
8.93 |
51 |
42 |
53 |
55 |
60 |
69 |
73 |
76 |
79 |
$290 |
|
| PVX-840T |
12 |
10.19 |
6.60 |
8.93 |
57 |
52 |
66 |
68 |
74 |
84 |
90 |
94 |
97 |
|
|
| PVX-1080T |
12 |
12.90 |
6.75 |
8.96 |
70 |
68 |
86 |
88 |
97 |
108 |
118 |
122 |
126 |
|
|
| PVX-1040T |
12 |
12.01 |
6.60 |
8.93 |
66 |
65 |
82 |
85 |
93 |
104 |
112 |
116 |
120 |
$377 |
|
| PVX-890T |
12 |
12.90 |
6.75 |
8.96 |
62 |
55 |
70 |
72 |
79 |
89 |
95 |
98 |
102 |
$350 |
|
| PVX-2120L |
12 |
20.76 |
8.70 |
9.76 |
138 |
136 |
172 |
176 |
194 |
212 |
235 |
244 |
253 |
$780 |
|
| PVX-2580L |
12 |
20.76 |
10.89 |
9.73 |
165 |
165 |
209 |
214 |
236 |
258 |
285 |
295 |
305 |
$1097 |
|
| PVX-1040HT |
12 |
13.09 |
6.60 |
8.93 |
66 |
65 |
82 |
85 |
93 |
104 |
112 |
116 |
120 |
|
|
| PVX-1380T |
6 |
10.19 |
6.60 |
8.92 |
51 |
84 |
106 |
110 |
120 |
138 |
146 |
151 |
158 |
|
|
| PVX-1680T |
6 |
10.21 |
6.60 |
8.92 |
57 |
104 |
132 |
136 |
148 |
168 |
180 |
187 |
194 |
|
|
| PVX-1780T |
6 |
12.90 |
6.75 |
8.96 |
62 |
110 |
140 |
144 |
158 |
178 |
190 |
196 |
204 |
|
|
| PVX-2080T |
6 |
12.01 |
6.60 |
8.93 |
66 |
130 |
164 |
170 |
186 |
208 |
224 |
232 |
240 |
|
|
| PVX-2160T |
6 |
12.90 |
6.75 |
8.96 |
70 |
136 |
172 |
176 |
194 |
216 |
236 |
244 |
252 |
|
|
| PVX-2240T |
6 |
10.27 |
7.12 |
10.24 |
67 |
143 |
180 |
185 |
204 |
224 |
246 |
256 |
263 |
|
|
| PVX-4140T |
2 |
10.19 |
6.60 |
8.93 |
51 |
252 |
318 |
330 |
360 |
414 |
438 |
456 |
474 |
|
|
| PVX-5040T |
2 |
10.19 |
6.60 |
8.93 |
57 |
312 |
396 |
408 |
444 |
504 |
540 |
561 |
582 |
|
|
| PVX-5340T |
2 |
12.90 |
6.75 |
8.96 |
62 |
330 |
420 |
432 |
474 |
534 |
570 |
591 |
612 |
|
|
| PVX-6240T |
2 |
12.01 |
6.60 |
8.93 |
66 |
390 |
492 |
510 |
558 |
624 |
672 |
696 |
720 |
|
|
| PVX-6480T |
2 |
12.90 |
6.75 |
8.96 |
70 |
408 |
516 |
528 |
582 |
648 |
708 |
732 |
756 |
|
|
Standard Terminals: All
"T" batteries now incorporate copper alloy M8 terminals except the
PVX-340T & PVX-420T which are M6. All batteries supplied with silicon
bronze bolts, nuts, and washers as required for installation. No exposed lead
terminals. This change was made to improve environmental safety and health.
Torque Value M6: 35 in-lbs / 4.0 nm. Torque Value M8: 70 in-lbs / 7.9 nm.
Optional Terminals: L Blade or Automotive post type terminals are available
installed by adding the appropriate suffix: "L" for L Blade or
"A" for automotive post. Handles: All part numbers include lifting
handles except the PVX-490T, PVX-560T, and PVX-2240T. Ratings: Capacity
ratings are stated at 77F (25 C) to 1.75 volts per cell.
CHARGING INSTRUCTIONS
Initial charge or recharge: 2.37 to 2.40 volts per cell at 25 C (77 F). Float
charge: 2.20 to 2.22 volts per cell at 25 C (77 F). Equalize charge: 2.40
volts per cell at 25 C (77 F). Temperature compensation = ±3.75 mV. per cell
per degree C [Reference to 25 C (77 F)]. This is for battery temperature (not
ambient temperature) and is useful for battery temperatures from 0 C (32 F) to
40 C (104 F). Contact Concorde Battery Corporation for temperatures that
exceed this range.
Specifications subject to change without notice.
|
