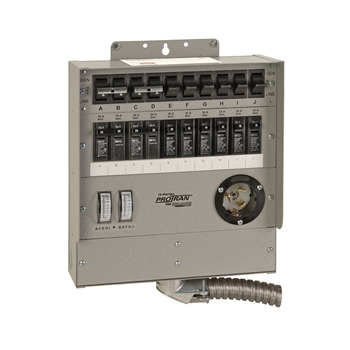

Manual Transfer Switch
50A, 12500W max, with inlet on switch
Pro/Tran®
by Reliance Controls
Latest technology in load-side transfer switches...
with built-in LED or analog meters
high capacity 30A 2pole branch
interchangeable breakers
This is the most advanced load-side transfer switch available at
this time. This NEW Q-series Pro/Tran®
switch from Reliance Controls has all the great features of the original plus
some new capabilities...
* Electronic digital meter - displays voltage and power of each
hot leg of
generator using an LED bar graph. Readable at a glance,
even in the dark!
* Includes (1) 30 amp double pole branch circuit breaker - allows you to
power
that 240Vac electric water heater or other large load.
* Designed for standard 1" plug-on interchangeable circuit
breakers. Allows for
changing breaker sizes in the field using readily available
breakers.
* All branch wiring (except for 30 amp circuit) sized for 20 amps so that
any
15 amp breaker can be upsized to 20 amps in field.
Easy to install and operate, connects portable generator to residential load
center. Allows manual transfer of individual loads to prevent overloading generator.
Each individual circuit can be transferred separately and only as needed.
Now required by Article 702.6 of the 2002 National Electric Code to prevent inadvertent backfeeding of electric power from generator
into utility system which can be a safety hazard.
Specifications
| Switch |
| Total Capacity |
12,500 watts, 50 amps |
| Single Pole Circuits - 120VAC |
(6) 15 amp |
| Double Pole Circuits - 240VAC |
(1) 20 amp with handle tie
(1) 30 amp with handle tie |
| Generator Connection |
NEMA CS6365
male inlet plug-in |
| Generator Load Watt Meters |
Yes |
| Enclosure Type |
indoor surface mounted |
| Convenience Receptacle |
No |
| UL Listing |
UL1008 |
| UL Short Circuit Withstand Rating |
5,000 amps |
| Dimensions |
12" W x 13" H x 4.6" D |
|
Electronic LED Meter
(for environments exceeding 104F order the analog
meter option using drop-down menu) |
| Electrical Ratings (3 models) |
12.5kW, 50 amps, 125/250Vac (EM1251) |
| Ambient Temperature Range |
0C to 40C (32F to 104F) |
| Max Humidity |
80% RH below 31C (88F)
50% RH above 31C (88F) |
| Max Altitude |
2000 meters (6,500 feet) |
| Transient Overvoltage Limits |
category II |
Each circuit provided
with non-defeatable (break-before-make) double throw switch protected with a resettable
circuit breaker. Dual electronic watt meters
provided for balancing generator load. The 1 x 18 inch flexible conduit is pre-wired for easy
connection to existing residential load center panel. Installs in less than an hour,
without pulling the electric meter or installing a sub-panel. Suitable only for
circuits protected with up to 30 amp breakers or fuses. UL listed and CSA
certified. Exclusive Pro/Tran®
Reliance Controls
24 month warranty.
Made in USA
Customers who purchased this product also ordered:
(click underlined words to see product pages)
Cordset for connecting generator RJB06410,
RJB06425 or RJB06450
Cord plug modification for generators with straight blade receptacle MOD1450P
Replacement circuit breakers Q115,
Q120, Q220
Flush mounting kit should be available for this product in May 2006
Item Number: Q510A
Your Price: $504.00
Shipping Weight: 20 lbs.
This item normally ships 1 week after order
acceptance. Click
here for the latest lead time for this product.
