S-600


Home ] Up ] Contents ] Search ] Catalog ]

Page last updated 03/06/06

THIS ITEM DISCONTINUED - CLICK HERE FOR ALTERNATIVE

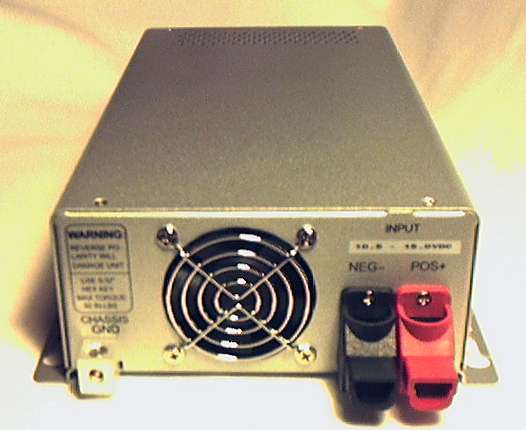

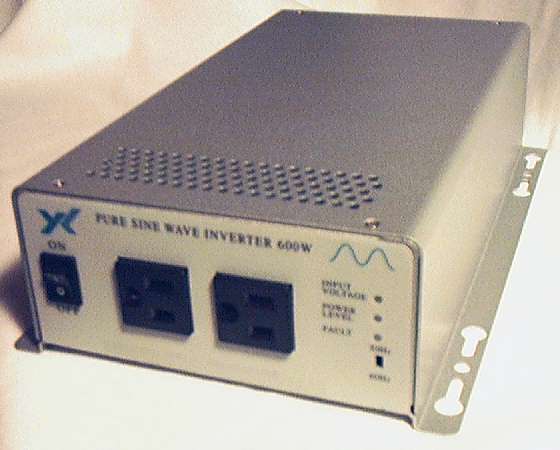

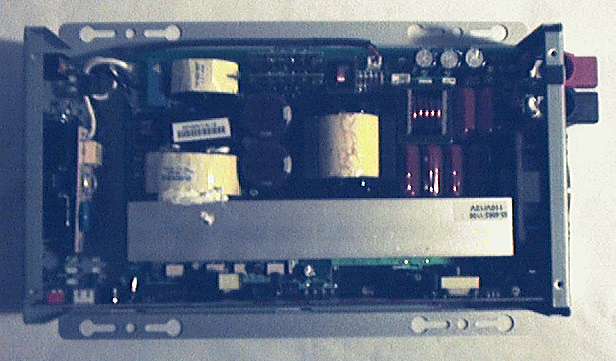

yk-psw1260.jpg (9691 bytes)  yk-psw1260-front.jpg (25551 bytes)  yk-psw1260-rear.jpg (23851 bytes)  yk-psw1260-inside.jpg (31474 bytes)
click on thumbnail image above to enlarge

Sine Wave Inverter
600/800 Watts

Finally a pure sine wave inverter that won't break your budget!

Thousands of these sine wave inverters have been in use since 1999 in England, Germany, Australia and Canada.  Now this quality sine wave inverter is available for sale in the USA!  It has a completely solid state design for quiet dependable long-life operation.  And because it produces a nearly perfect sine wave there is no risk of extra heating or damage to some appliances as with modified sine wave inverters.   For the advantages of sine wave inverters click here.  This unit is suitable for powering small ac appliances from a dc source such as a vehicle electrical system and/or battery.  In addition to use for home backup power, it is also great for your camping, RV or boating needs.  This inverter comes with some unique features not available in many other more costly units such as:

* 60 Hz or 50 Hz settings available to user by switch settings on front of unit
   (perfect for powering foreign appliances)

* serial port for optional remote controller (available separately)

* multi-color LED for indicating input voltage

* multi-color LED for indicating output load

* automatic shutdown protective functions that are indicated on face of unit with red LED

Exclusive 1 year warranty.  Made in Taiwan.



Specifications

Continuous Power Output 600 watts
Overload Rating (approx. 3 minutes) 680 watts
Surge Rating >800 watts
DC Input Voltage 12VDC (10.5-15VDC max)
24VDC & 48VDC by special order
AC Output Voltage
(selectable by internal DIP switches)
100/110/115/120VAC ±3%
200/220/230/240VAC by special order
Output Frequency
(user selectable by external switch)
50/60 Hz ±0.05%
Full Load Efficiency 88% for 12VDC model
90% for 24VDC model
91% for 48VDC model
Output Wave Form Sine Wave with less than 3% total harmonic distortion
Output Voltage Regulation -10% to +4%
Automatic Shutdown Protection - Overload
- Short circuit
- Reverse Polarity (fuses)
- Overvoltage
- Undervoltage
- Overtemperature
Operating Temperature Range 0C to 50C
Storage Temperature Range -30C to 70C
Dimensions (L x W x H) 12.2" x 7.3" x 3"
Weight 6.6 lbs



This inverter must be powered from a negative ground electrical system.   All passenger vehicles manufactured in the U.S.A. after 1955, and in Europe and Asia after 1971 have negative ground systems and are acceptable.



NOTE: Price slightly higher for 24VDC and 48VDC inputs.

Item Number: S-600
Your Price: $249.00
Shipping Weight: 10 lbs.
This item normally ships within 1-2 business days after order acceptance.  Shipping will be added based on your zone and item weight.  Click here to view our current shipping rate table.  Shipping is less when several items are combined on the same order.
