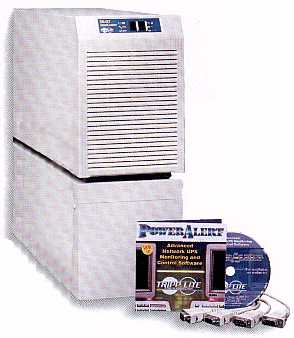

Click on thumbnail image above to enlarge

Data Center UPS System
5000VA, 3700W

Multiple Server Control

The award-winning SmartPro DataCenter is an intelligent UPS system which offers, as a standard feature, simultaneous management of 4 servers. Other UPS manufacturers offer multiple-server control only be adding expensive accessories. In a power failure, the SmartPro DataCenter will simultaneously provide shutdown commands and reporting on up to 4 individual servers -- even if the servers are running different operating systems.

Universal Network Power Management

SmartPro DataCenter UPS systems include PowerAlert Software for virtually every operating system to provide IS managers with unparalleled control over network power. If you already own UPS systems from other manufacturers, PowerAlert Software will upgrade and consolidate your current UPS management, enterprise-wide, into one cohesive Y2K-compliant software application. PowerAlert can manage any UPS you own -- from any manufacturer. As such, PowerAlert free you to make future UPS purchases based on the features and prices you want, without adding the complexity of an additional vendor-specific software package to your UPS management scheme. And with a single program monitoring all UPSs, you’ll be more likely to respond to the UPS alerts that you may not even be aware of today.

Increased Reliability

Developed to support heavy network and telecom loads, SmartPro DataCenter UPS systems feature an intelligent microprocessor that controls all UPS functions. Using an advanced instruction set, this smart chip constantly monitors incoming power and environmental conditions and responds by supplying the most reliable power protection for your critical systems.

Extended Runtime

Expandable, long lasting runtime preserves every dollar of network productivity and is standard with all SmartPro DataCenter UPS Systems. SmartPro DataCenter "XR" UPS models can provide even more extended run time to support critical equipment in large network and telecommunications environments.  Add-on battery packs extend the runtime even further. Many manufacturers offer extended run time as expensive options that can cost hundreds of dollars. SmartPro DataCenter UPS Systems are simply the most economical and reliable way to protect your critical systems for prolonged periods of time.  The graph below can be used to estimate runtimes when using additional battery packs.




Automatic Voltage Regulation (AVR)

Abnormally low and high voltage conditions can routinely appear in your building due to increased local demand on your power circuits or by inadequate utility company service. SmartPro’s built-in microprocessor constantly monitors incoming voltage levels. When it detects high or low voltage, SmartPro UPS systems automatically adjust it without using battery power, to ensure your connected equipment receives only regulated, computer-grade AC power. SmartPro UPS Systems constantly charge their batteries, even while regulating voltage, so they are always ready to support your critical when blackouts occur.

Complete Power Protection

In addition to protection against brownouts and blackouts, SmartPro UPS Systems have premium surge protection and line noise filtering to stop lightning damage and surges. Lifetime Insurance coverage guarantees your critical equipment will stay safe from surge damage for life.



Specs

Output Power Rating 5000 VA, 3700 watts
Output Voltage 120/208/240 VAC, 60 Hz
Output Receptacles (12) NEMA 5-15R
(1) NEMA L6-30R
(1) NEMA L1430R
Customized Load Management Receptacles 3
AC Line Input Voltage 208/240 VAC
AC Input Plug Type NEMA L6-30P
UPS Type line interactive
Backup Time on Internal Battery 42 minutes half load/18 minutes full load
Maximum Additional Battery Packs (8) BP36VXR

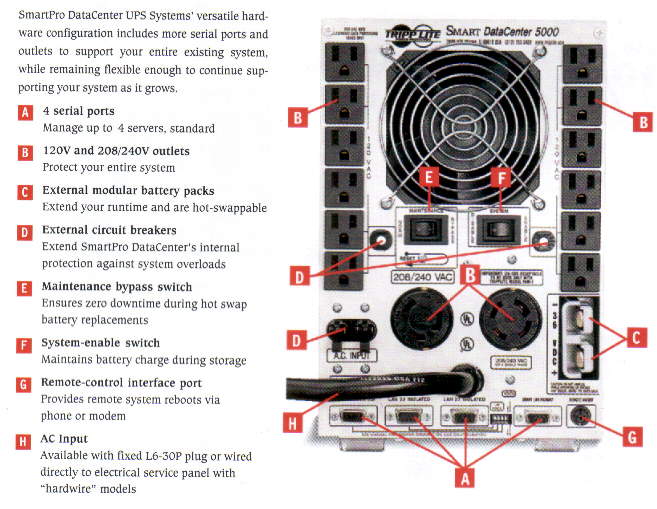

Serial Ports for individual server control (1) RS-232 plus (3) contact closure
Dimensions (H x W x D) 23 x 11 x 22 inches
(stacked with battery module)



Item Number: SDC5000
List Price: $4,499.00
Your Price: $3,245.00
Shipping Weight: 311 lbs.

This item normally ships 2-5 business days after order acceptance.
