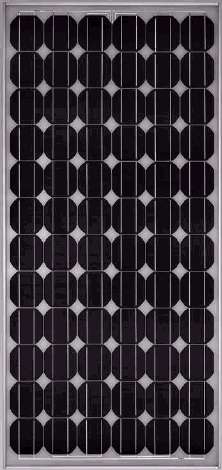

The Siemens SP130 through SP150 series use up to 36 Powermax 5" semi-round
single-crystalline cells. Every module is factory tested. Comes with anodized
aluminum frames and includes the same conduit-ready junction box that the SP75 has (with
bypass diodes). Output is 24 volts. EVA encapsulated.
Specs
For complete specs click here for pdf
file.
| Typical Power |
130 watts |
| Configurable Voltages |
24V |
| Bypass Diodes Provided? (block reverse current) |
Yes |
| Connection Method |
in junction box |
| Dimensions (L x W x D) |
63.76 x 32.05 x 1.57 inches |
| Warranty |
25 years |
| Listings |
UL |
Item Number: SP130
Your Price: $717.00
Shipping Weight: 40 lbs.
This item normally ships 5-10 business days after order acceptance.
Ground shipping and handling charges to the continental US for this item when
ordered alone are approximately $18 to $26.
