Siemens Solar is the world’s leading manufacturer of solar modules. Siemens
solar cells are based on single-crystalline silicon technology that offers better
efficiency than polycrystalline or amorphous silicon and other thin film technologies.
Manufactured in compliance with the most stringent quality standards, they are designed to
withstand the toughest environmental conditions and are characterized by their long
service life.
Siemens‘ proprietary PowerMax® technology optimizes the energy
production of individual cells and solar modules for all types of environmental
conditions. PowerMax® process optimization includes a special refining
technique for ingots, a clean room semiconductor grade production process, and a
multistage proprietary TOPS™ (Texture Optimized Pyramidal Surface) process. The TOPS
process incorporates the formation of textured pyramids on the surface of the solar cell.
These pyramids improve the cell‘s optical properties to maximize photon absorption
from direct and diffused light (typical under cloudy conditions). This means that light
absorption is especially high, even at low light levels.

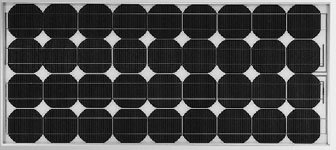

SP series modules use 5" semi-round cells for high output power, better
economy and only slightly less area efficiency than the SM series. All SP series modules
have a single ProCharger-CR junction box that accepts conduit, cable or wire.
Features:
Certifications and Qualifications
•UL-Listing 1703
•TÜV safety class II
•JPL Specification No. 5101-161
•ESTI-IEC 1215/CEC503
•CE mark
•FM Certification
Intelligent module design
•All cells are electrically matched to assure greatest power output.
•Ultra-clear tempered glass provides excellent light transmission and protects
from wind, hail, and impact.
•Torsion and corrosion resistant anodized aluminum module frame assures
dependable performance, even through harsh weather conditions and in marine environments.
•Built-in bypass diodes (12V configuration) help system performance during
partial shading.
High quality
•Every module is subject to final factory review, inspection and test to
assure compliance with electrical, mechanical and visual criteria.
•PowerMax® single-crystalline solar cells deliver excellent
performance even in reduced-light or poor weather conditions.
•Cell surfaces have Texture Optimized Pyramidal Surface (TOPS™) to
process more energy from available light.
•Fault tolerant multi-redundant contacts on front and back of each cell
provide superior reliability.
•Solar cells laminated between a multi-layered polymer backsheet and layers of
ethylene vinyl acetate (EVA) for environmental protection, moisture resistance, and
electrical isolation.
•Durable multiple-layered backing system provides the module underside with
protection from scratching, cuts, breakage, and most environmental conditions.
•Laboratory tested and certified for a wide range of operating conditions
(-40°C to 85°C and 0% to 85% humidity).
•Ground continuity of less than 1 ohm for all metallic surfaces.
•Manufactured in ISO 9001 certified facilities to exacting Siemens quality
standards.
Easy installation
•ProCharger™ - CR junction box accepts conduit, cable or wire and is
designed for easy field wiring.
•Lightweight aluminum frame and pre-drilled mounting holes for easy
installation.
•Modules are factory configured for 12 volt operation and may be reconfigured
in the field for 6 Volt operation.
• Modules may be wired together in series and parallel to attain required
power levels.
Specs
For complete specs click link to pdf file
| Typical Power |
75 watts |
| Minimum Power |
70 watts |
| Configurable Voltages |
12V or 6V |
| Voltage at Peak Power |
17.0V or 8.5V |
| Current at Peak Power |
4.4A or 8.8A |
| Short Circuit Current |
4.8A or 9.6A |
| Open Circuit Voltage |
21.7V or 10.9V |
| Bypass Diodes Provided? (block reverse current) |
Yes |
| Connection Method |
in junction box |
| Dimensions (L x W x D) depth w/o junction box |
47.3 x 20.8 x 1.3 inches |
| Warranty |
25 years |
Item Number: SP75
'99 Catalog Price: $552.00
Your Price: $434.00
Shipping Weight: 20 lbs.
This item normally ships 5-10 business days after order acceptance.
Ground shipping and handling charges to the continental US for this item when
ordered alone are approximately $20.
