Page last updated Nov 30, 2008 @ 04:43pm
STP-1500
DISCONTINUED - SEE PV1800HF
click on thumbnail
image above to enlarge

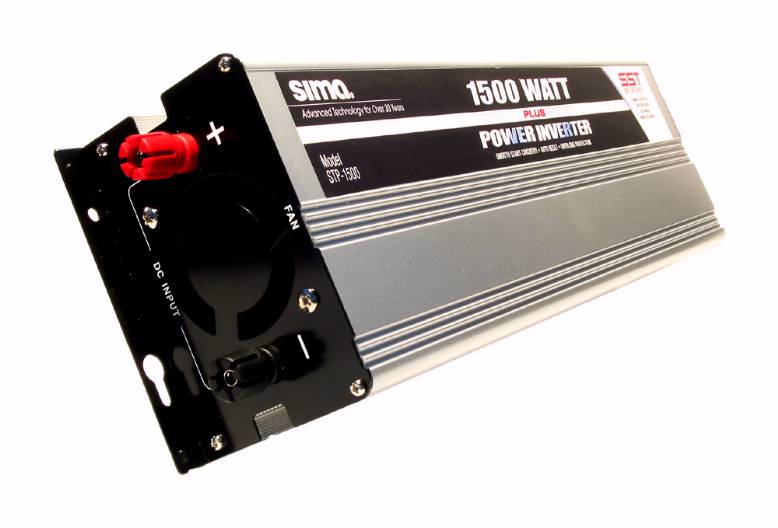

Inverter - 1500/3000 Watts
12VDC to 115VAC, modified sine wave
Solid state inverter for powering ac appliances from a 12 volt dc source such as a vehicle electrical system and/or battery. Compact design. Output voltage rating 110-115 Volts at 60 Hz. This unit will power those larger appliances one at a time such as a refrigerator, freezer, microwave oven, power tool, vacuum cleaner and sump pump, as long as they are within its rating. Best used for intermittent applications such as home backup power, camping, RV or boating. Modified sine wave output. Standard features consist of automatic thermal protection, low battery voltage alarm and shutdown and dual ac outlets. Fault indicator. Dc input cables provided with inverter. Exclusive 3 year warranty. Made in Taiwan.
Specs
| Feature | Value |
| Input | 12-15 Vdc |
| Input no-load current | less than 0.8 amps DC |
| Output Power | 3,000 watts peak 1,500 watts for 10 minutes 1,200 watts continuous |
| Output Frequency | 60 Hz +1% |

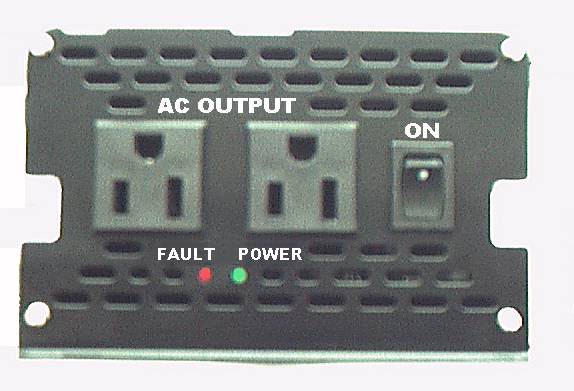

| Outlets | (2) NEMA 5-15R |
| Efficiency | 85% to 90% |
| Automatic Protection | Thermal overtemperature Low battery alarm (10.2 Vdc) Low battery shutdown (9.5 Vdc) Output short circuit Overvoltage (15 Vdc) |

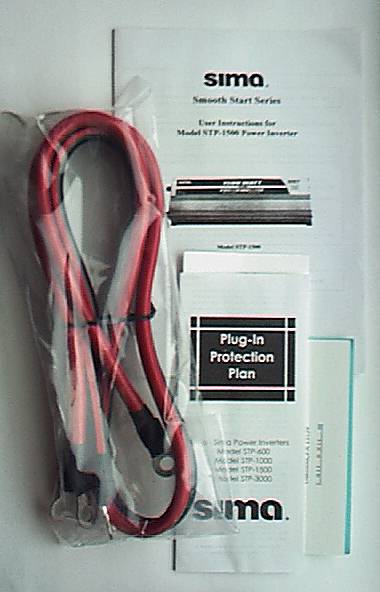

| DC cables | #4 ga 105 C with ring terminals, 40" long |
| Dimensions (W x H x D) | 4.75" x 3" x 16.25" |
| Weight (unit/shipping) | 8.6/10 lbs. |
| Manufacturer's Warranty | 3 years |
Specifications subject to change by manufacturer without notice.
This inverter must be powered from a negative ground electrical system. All passenger vehicles manufactured in the U.S.A. after 1955, and in Europe and Asia after 1971 have negative ground systems and are acceptable.
Customers who purchased this product also ordered:
(click underlined words to see product pages)Safety Fuse & Cable Kit SK-200
Manual Transfer Switch 15114
Item Number: STP-1500
Your Price: $159.00
Shipping Weight: 10 lbs.
This item normally ships 2-3 days after order acceptance.
