SW85

[ Home ] [ Up ] [ Contents ] [ Search ] [ Catalog ]

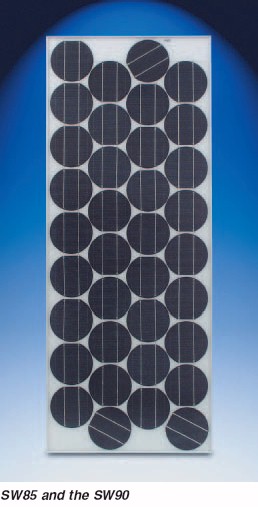

SunWize Solar Modules deliver top-quality performance for all photovoltaic applications including rural electrification, water pumping, telemetry, communications, and general battery charging.  These modules can be used in single-module and multiple-module installations and are ideal for high voltage, grid-tied inverters.  Each module consists of 36 solar cells connected in series providing maximum charging power.  Listed to UL1703 and cUL, FM approved for hazardous locations Class 1 Div. 2 and ISPRA certified to IEC61215.



FEATURES:
	The glass surface is impact resistant and allows maximum light transmission.
	Single crystalline solar cells are encapsulated and bonded to the glass in multiple layers of ethylene vinyl acetate (EVA) and laminated with a white Tedlar™ backing insuring long life in severe environmental conditions.
	A weather resistant junction box accommodates all wiring methods including moisture-tight strain relief connectors and electrical conduit.  Bypass diodes insure reliable operation.
	Iodized aluminum tubular frames add strength and durability to the modules.  Pre-drilled mounting holes.
	Manufactured to comply with U.S. and international standards and are factory tested to verify superior performance.
	Carry a 25-year, 80% power output warranty.

.

Specs
For complete specs click thumbnail image above

Typical Power	85 watts
Nominal Voltage	12V
Bypass Diodes Provided? (block reverse current)	Yes
Connection Method	in junction box

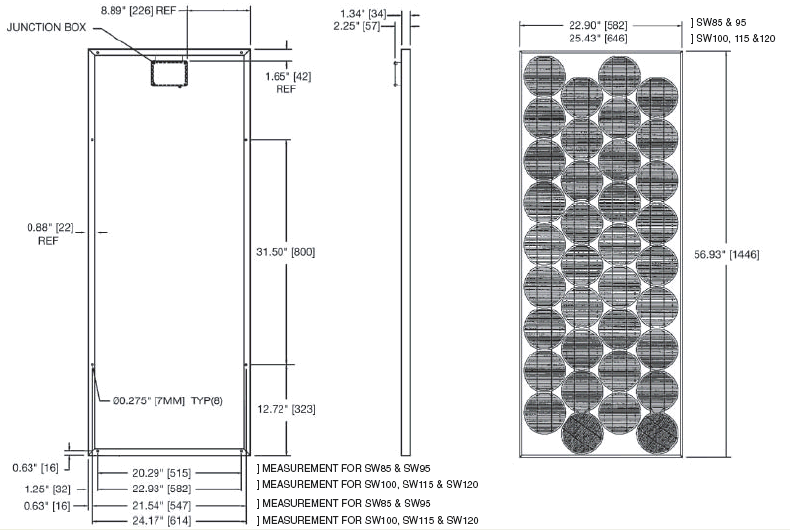

Dimensions (L x W x D) inches	56.89 x 22.83 x 1.34 (2.25 with junction box)
Warranty	25 years



Item Number: SW85
Your Price: $472.00
Shipping Weight: 26 lbs.
This item normally ships 4-8 weeks after order acceptance.  Click here for the latest lead time for this product.
