IDC-towerparts.gif (74205 bytes) IDC-uprightcouplers.gif (105593 bytes) IDC-strainrelief.gif (49309 bytes) IDC-sdjboxedit.gif (20279 bytes) IDC-h40jbox.gif (18075 bytes)

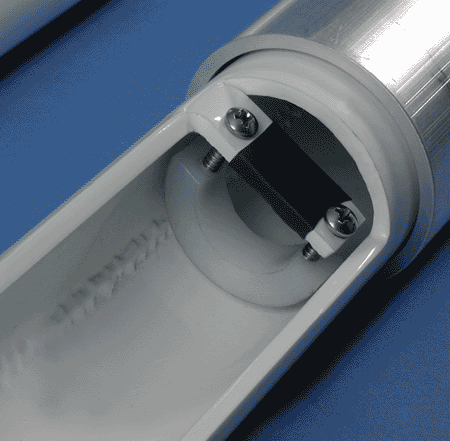

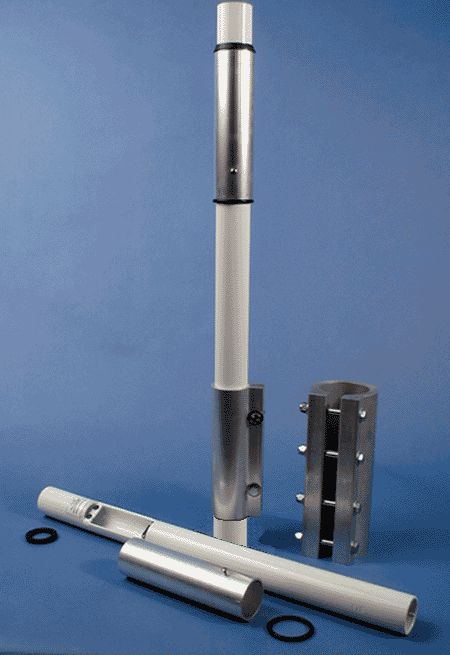

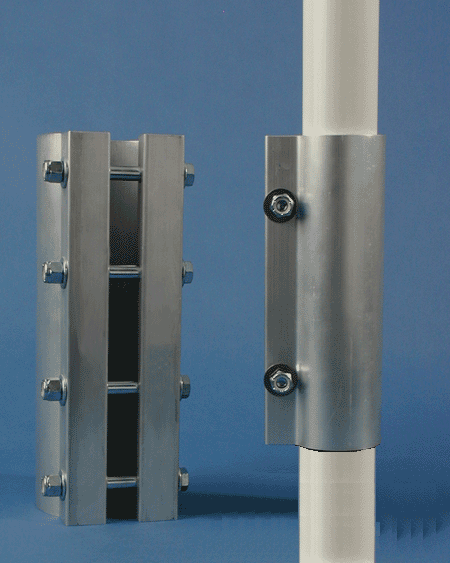

UpTower J-Box with parts Couplers Strain relief detail UpTower J-Box installed with SWWP Air wind turbine UpTower J-Box installed with SWWP H40 wind turbine
click on thumbnail image above to enlarge

UpTower Junction Box
available for 1-1/2" or 2-1/2" pipe

UpTower J-Box© makes installing wind turbines a breeze!

The UpTower J-Box is a breakthrough in wind generator installation technology. Now, instead of the wires hanging directly from the wind generator, and being kinked and stuffed into the top of the tower, there is a better way. The UpTower J-Box has a strain relief holding wires in place while you quickly make the connections. Servicing is also much easier. Simply slide the gasket and sleeve down the pole, service the installation then slide the sleeve and gasket back into place. When you are thirty feet in the air, it is like having an extra pair of hands. Wind energy has long been a wonderful source of energy for the renewable energy user. Now it just got much easier!

The UpTower J-Box is available to fit trade size 1-1/2" nominal inside diameter pipe (1-7/8" outside diameter) or 2-1/2" nominal inside diameter pipe (2-7/8" outside diameter) pipe.



Item Number: UPTOWER-JB
Your Price: $109.00
Shipping Weight: 10 lbs.

This item normally ships 5-10 business days after order acceptance.

tower top pipe size:
version:
