WP25PTOS

THIS ITEM IS REPLACED BY IDENTICAL WINCO PRODUCT AT THIS LINK

Click thumbnail images above to enlarge

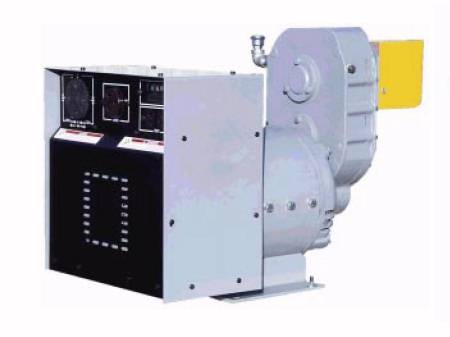

25KW Power Take-Off Generator
120/240Vac Single phase

PTO Generators are designed as a standby electrical power supply for farm applications or any site that has an engine with a power take-off.  They can utilize a power take-off from tractors, bulldozers, or trucks as the prime mover.  Units are equipped with a single-stage gear box ratio design that operates generator at 3600 rpm for longer life, quieter operation, and smoother running.

Features
* Brush type rotating field two pole alternator with 100% copper windings.

* Large frequency meter viewable from tractor seat assists in setting tractor speed and monitors output.
* Capacitor voltage regulator maintains output voltage to approximately +10%.

* Rugged cast iron helical gear case with a standard 1-3/8" six-spline 540 rpm input shaft.
* Safety shield for pto connection.

Accessories (order separately)
* 1-3/8" six spline pto shaft is fully guarded for safety.
* Two-wheel transport offers heavy 5/16" gauge hitch that can handle the rigors of
   generator operation.



Specs

Rated AC Power 25 kW
Alternator
(see footnote)
Rotating Field Brush-type Design
Electronic Voltage Regulator no
AC Current at 240 V 104 amps
Rated Voltage 120/240 V, 1 phase
Output Circuit Breakers yes
Receptacles at 120V (qty) (2) NEMA 5-15R
Receptacles at 240V (qty) (1) NEMA 6-50R
(1) full power modular
plug included for this receptacle
PTO Speed 540 rpm
Minimum Tractor PTO shaft hp Required for Rated Output 50 hp
A lower PTO shaft hp rating is acceptable but

electrical output will be proportionally less.
Motor Starting Capability 10 hp (code G)
Manufacturer's Warranty 3 years



Customers who purchased this product also ordered:
(click underlined words to see product pages)
Shielded Universal PTO Shaft, 1-3/8" six spline both ends 43990
Two-wheel Transport with Tires for off-highway use 97100
Service entrance transfer switch panel 200A or 150A TWB2010CR or TWB1510CR (compact breaker type).
Transfer switch 200A 7205A or 7215 (large enough to install High Capacity Inlet Kit on side)
High Capacity Power Inlet Kit
300134.
Welding Cable
