40375
(supersedes 40243A, 1938)

DISCONTINUED - SEE ATERNATIVES AT THIS LINK


Click thumbnail image above to enlarge

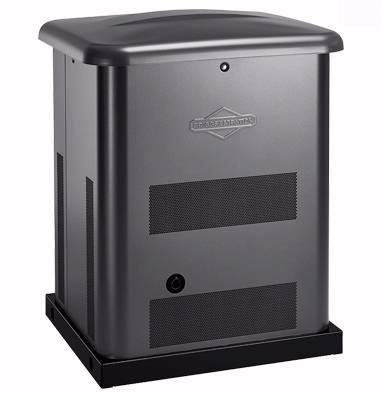

Standby Generator Set
Briggs & Stratton^® Home Standby
10kW on propane, 9kW on natural gas
(see below for transfer switches)



Don’t let its size fool you! Thanks to a compact design and a commercial-grade Vanguard™ engine, our 10kw standby generator proves big power can come in a small generator. In a small to medium-sized home, the new 10kw standby generator affordably manages the power to all of your appliances with our Load Control Center.

Designed to fit any property, its flexible placement options and compact size make backup power a reality for many homeowners.

Symphony II^® System now available for managing your large electrical loads and this usually means you can install a smaller lower- cost generator.  The system is available as an option in the most of the Briggs automatic transfer switches.  The user selects up to four large loads to be controlled and sets the run priority for each.  Then this system monitors the available generator capacity to determine if and when these loads can run.  They are turned on and off automatically through remote switching modules which must be ordered separately (see below).  The system communicates with the modules using a signal on the power system neutral.

OVERVIEW

More Power in a Smaller Generator
The compact 10kW standby generator has one of the highest power outputs per square inch of footprint in its kW class - providing backup electricity to more of your household appliances.

Flexible Placement
Tested against the tough National Fire Protection Agency 37 standard, Briggs & Stratton 10kw standby generators can be placed as close as 18” from the home providing more placement options in your yard3 – perfect for tight lot lines.

Reliable Engine Power
Our 10kW standby generators are powered by commercial-grade Vanguard™ engines that are design-engineered to dependably take on the most demanding jobs.

More Access to Air Conditioners
Briggs & Stratton automatic transfer switches can manage the load of up to two 3-ton air conditioners while powering other household appliances.

Quick Response
Automatically powers your home in seconds after sensing a power outage.

Durable Enclosure
Rust-resistant, Galvanneal steel enclosures are made from the same materials and paint process used in the automotive industry, resulting in years of protection against chips and abrasions.

3 Year Limited Warranty
At Briggs & Stratton, we stand behind our 3-year limited parts and labor warranty and make it easy for our customers to work with us.

Standby Generator Specifications

Engine Brand	Briggs & Stratton Vanguard™ V-Twin
CC	570
Operation	Fully Automatic
Voltage (V)	120/240V AC, Single Phase, 1.0 pf
Alternator Type	Brushed, Computer Friendly
Fuel Consumption (Cubic Feet per Hour @ 1/2 Load)	1.19 gal/hr (LP) 115 ft3/hr (NG)
Fuel Consumption (Cubic Feet per Hour @ Full Load)	1.82 gal/hr (LP) 180 ft3/hr (NG)
Overcrank Protection	Yes
Length x Width x Height (inches)	28 x 24.4 x 35.1
Weight (lbs)	272
Warranty (Product)	3 Year Limited Parts and Labor
Recommended Transfer Switch	100 Amp, 16 Circuit Automatic Transfer Switch

*NG = Natural Gas; LP = Liquid Propane. **Fuel consumption rates are estimated based on normal operating conditions at 1/2 load. Generator operation may be greatly affected by elevation and the cycling operation of multiple electrical appliances - fuel flow rates may vary depending on these factors.



Automatic Transfer Switch Specifications
Grayed out switches are NOT for use with this generator
All are rated 120/240V, 2 poles, 60Hz, NEMA 3R outdoor enclosure, UL 1008 Listed
Power management now provided by the Symphony II^® system
which supersedes the previous ACCM Power Control Module™

Switch Model #	1918	71047	71055	71038	71045	71069	71046	71058	71076	71058
Switch Model # with Symphony II®					71071	71070	71068	71057
Used with Generator kW	8	10-20	10-20	10-20	10-20	10-20	10-20	20	35-60	35-60
Amps	50A	100A	100A	200A	100A	150A	200A	2x200	200	2x200
Circuits	10	16	whole house	whole house	whole house	whole house	whole house	whole house	whole house	whole house
Power Management	--	yes	yes	yes	yes	yes	yes	yes	yes	yes
Service Entrance Disconnect	--	--	--	--	yes	yes	yes	yes	yes	yes
Dimensions (LxWxH)	15x5x21	6x14x24	6x12x15	7x16x22	6x14x24	33x11x19	7x16x30	7x24x37	7x16x30	7x24x37
Weight (lbs)	30	39	23	37	39	58	58	105	58	105
Limited Warranty (years)	3	3	3	3	3	3	3	3	3	3



---
