40336
(supersedes 40305, 40304, 40226, 40228)

DISCONTINUED - SEE ATERNATIVES AT THIS LINK

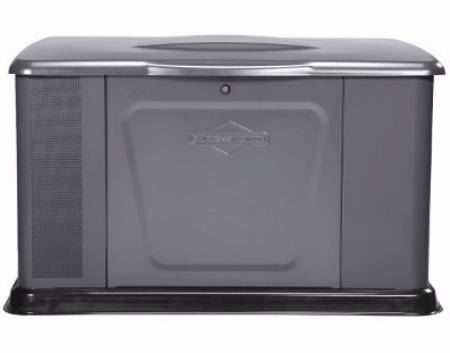

Click thumbnail image above to enlarge

Standby Generator Set
Briggs & Stratton^® Home Standby
20kW on propane, 18kW on natural gas
(see below for transfer switches)



Briggs & Stratton 20kW standby generators provide backup electricity for your air conditioner, appliances, lights, TVs or computers and give you the peace of mind to take charge. Ideal for large-sized homes, Briggs & Stratton standby generators can dependably power your home’s essential power needs with flexible power options.

Symphony II^® System now available for managing your large electrical loads and this usually means you can install a smaller lower- cost generator.  The system is available as an option in the most of the Briggs automatic transfer switches.  The user selects up to four large loads to be controlled and sets the run priority for each.  Then this system monitors the available generator capacity to determine if and when these loads can run.  They are turned on and off automatically through remote switching modules which must be ordered separately (see below).  The system communicates with the modules using a signal on the power system neutral.

OVERVIEW

Quick Response
Automatically powers your home in seconds after sensing a power outage.

Reliable Engine Power
Briggs & Stratton standby generators are powered by commercial-grade Vanguard™ engines that are design-engineered to dependably take on the most demanding jobs.

Flexible Placement
Tested against tough National Fire Protection Agency standards, Briggs & Stratton 16kW standby generators can be placed as close as 18” from the home providing more placement options in your yard – perfect for tight lot lines3.

Powers the Essentials
Essential Power-Plus! provides power for a select number of circuits in your home as well as powering up to two air conditioners.

Durable Enclosure
Rust-resistant, Galvanneal steel enclosures are made from the same materials and paint process used in the automotive industry, resulting in years of protection against chips and abrasions.

4 Year Limited Parts and Labor Warranty
At Briggs & Stratton, we have the best value warranty, and stand behind our product line to make it easy for our customers to work with us. No one else offers a 4-year limited warranty2 that includes both parts and labor.

Transfer Switch
Flexible, indoor or outdoor, transfer switch placement make it convenient to install. All of our weather-resistant transfer switches are NEMA 3R rated for maximum protection against dirt, rain, sleet and snow.

CARB Compliant
This standby generator is available for sale in California.

Specifications

Engine Brand	Briggs & Stratton Vanguard
CC	993
Operation	Fully Automatic
Voltage (V)	120/240V AC, Single Phase, 1.0 pf
Alternator Type	Brushed
Fuel Consumption (Cubic Feet per Hour @ 1/2 Load)	2.31 gal/hr (LP); 187 ft3/hr (NG)
Fuel Consumption (Cubic Feet per Hour @ Full Load)	3.75 gal/hr (LP); 260 ft3/hr (NG)
Weekly Exerciser
Battery/Battery Charger	Yes
Overcrank Protection	Yes
Hour Meter	Yes
Diagnostic Alerts with Remote System Status
Length x Width x Height (inches)	48 x 34 x 31
Weight (lbs)	500
Warranty (Product)	4 Year Limited Parts and Labor
Recommended Transfer Switch	100 Amp, 16 Circuit Automatic Transfer Switch

*NG = Natural Gas; LP = Liquid Propane. **Fuel consumption rates are estimated based on normal operating conditions at 1/2 load. Generator operation may be greatly affected by elevation and the cycling operation of multiple electrical appliances - fuel flow rates may vary depending on these factors.



Automatic Transfer Switch Specifications
Grayed out switches are NOT for use with this generator
All are rated 120/240V, 2 poles, 60Hz, NEMA 3R outdoor enclosure, UL 1008 Listed
Power management now provided by the Symphony II^® system
which supersedes the previous ACCM Power Control Module™

Switch Model #	1918	71047	71055	71038	71045	71069	71046	71058	71076	71058
Switch Model # with Symphony II®					71071	71070	71068	71057
Used with Generator kW	8	10-20	10-20	10-20	10-20	10-20	10-20	20	35-60	35-60
Amps	50A	100A	100A	200A	100A	150A	200A	2x200	200	2x200
Circuits	10	16	whole house	whole house	whole house	whole house	whole house	whole house	whole house	whole house
Power Management	--	yes	yes	yes	yes	yes	yes	yes	yes	yes
Service Entrance Disconnect	--	--	--	--	yes	yes	yes	yes	yes	yes
Dimensions (LxWxH)	15x5x21	6x14x24	6x12x15	7x16x22	6x14x24	33x11x19	7x16x30	7x24x37	7x16x30	7x24x37
Weight (lbs)	30	39	23	37	39	58	58	105	58	105
Limited Warranty (years)	3	3	3	3	3	3	3	3	3	3





---
