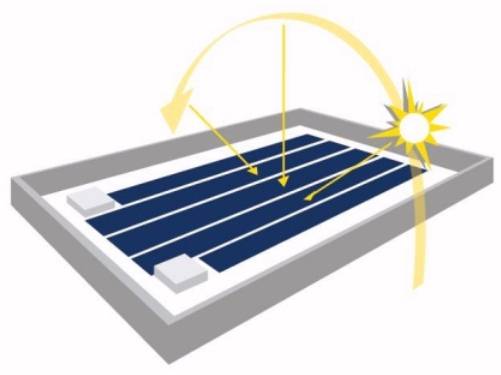

PV Roofing Laminate	Layout on roof	Kits for RVs
Click thumbnail image above to enlarge

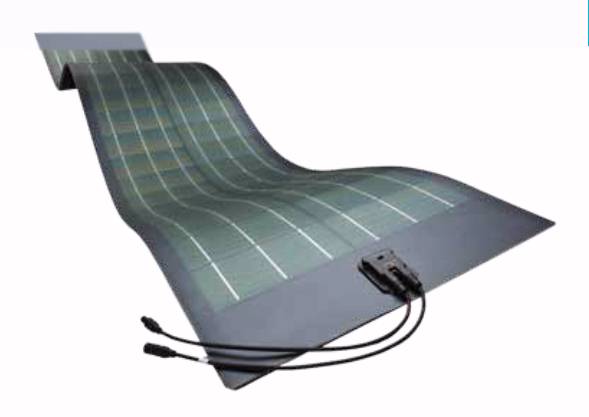

PV Roofing Laminate
82W to 300W
for standing seam metal roofs
(can also be used on other types of surfaces)

ALTERNATIVE FOR THE
DISCONTINUED UNI-SOLAR PVL PRODUCT LINE !



BUILDING INTEGRATED PV

This product is designed specifically for rooftops.

Integrates with the roofing surface No mounting hardware required No roof penetrations that can later leak No wind loading to be evaluated

Flexible Module Fits many roof types Durable, non-breakable

Light weight 0.7 pounds per square foot No structural reinforcement is normally required

MORE ENERGY PER ROOF

These solar cells are made from Copper Indium Gallium diSelenide (CIGS) thin-film solar on a flexible substrate in a plant in the USA.

High efficiency CIGS 10.4% to 12.6% aperture efficiency 50% more efficient than flexible amorphous silicon

High performance Performs in all light conditions Shade tolerant

Covers entire roof area Lays flat.  No tilt required. Minimum module spacing permitted.

LOWER INSTALLED SYSTEM COSTS

Large, medium and small format modules to choose from 225-300 Watts, 45-54 Vdc, dimensions 226" x 19.3" 165-200 Watts, 32-36 Vdc, dimensions 153" x 19.3" 82-100 Watts, 15-18 Vdc, dimensions 83" x 19.5" 30% to 40% savings in balance of system and installation costs

APPLICATIONS

Grid-Connected Metal Roof Shade & Parking Structures Grid-Connected Agricultural Metal Roof Structures Residential Grid-Connected Systems Schools, Municipalities & Institutions Renovation or New Construction



Specs
Electrical parameters +10% at standard test conditions(STC) of 1000W/m² and 25C cell temperature.
AM1.5 solar reference spectrum (ASTM E892).
Note that the grayed-out ratings in the table below are no longer manufactured.

	Large Format Module				Medium Format Module			Small Format Module
Dimensions (L x W x H)	226" x 19.3" x 0.12"				152.8" x 19.3" x 0.12"			83" x 19.5" x 0.13"
Weight (lbs)	20.5 lbs with adhesive 15.9 lbs without				14.6 lbs with adhesive 10.8 lbs without			7.7 lbs with adhesive 6.6 lbs without
Solar Cells	108 CIGS cells 8.27" x 3.94"				72 CIGS cells 8.27" x 3.94"			36 CIGS cells 8.27" x 3.94"
Capacity Rating, Pmax Temp Coefficient -0.43%/C	300W	275W	250W	225W	200W	185W	165W	100	90W	82W
Tolerance of Pmax	+7%	+7%	+7%	+7%	+7%	+7%	+7%	+7%	+7%	+7%
Module aperture area efficiency	12.6%	11.5%	10.5%	9.4%	12.6%	11.7%	10.4%	12.7%	11.4%	10.4%
Rated Voltage, Vmpp Temp Coefficient -0.38%/C	54.3V	51.5V	48.6V	45.3V	36.2V	34.7V	32.1V	17.8V	16.5V	15.5V
Rated Current, Impp	5.5A	5.3A	5.1A	5.0A	5.5A	5.3A	5.1A	5.6A	5.4A	5.3A
Open Circuit Voltage, Voc Temp Coefficient -0.33%/C	69.7V	67.6V	65.4V	63.2V	46.4V	45.6V	43.6V	23.3V	22.0V	20.9V
Short Circuit Current, Isc Temp Coefficient -0.03%/C	6.4A	6.3A	6.2A	6.1A	6.4A	6.3A	6.2A	6.4A	6.3A	6.2A
Junction Box	TE Connectivity SOLARLOK™ Micro Junction Box
Cables	4 mm2 dual rated with SOLARLOK™ connectors
Adhesive	ADCO HelioBond™ PVA 600BT butyl mastic
Hot Spot Protection	2 bypass diodes at each cell, 1 at junction box
Materials	Lead free and exempt from RoHS requirements
Maximum Series Fuse Rating	10A
Temperature Range	-40C to +85C
Max System Voltage	1000Vdc IEC, 600Vdc UL
Certifications	EN 61646, EN 61730, UL 1703
Warranty	Materials and Workmanship - 5 years Power Output - 25 years (90% @ 10 years, 80% @ 25 years)

Installation must be performed in accordance with the National Electrical Code.





Pricing shown is for small quantities.  For large quantities our shopping card will automatically apply a discount.  Or request a quote.

Large Format Module	Medium Format Module	Small Format Module
discontinued	discontinued	discontinued



---
