Page last updated Oct 20, 2021 @ 10:42pm

PD-K25
PD-K30
PD-K40

DISCONTINUED - SELECT ALTERNATIVES HERE

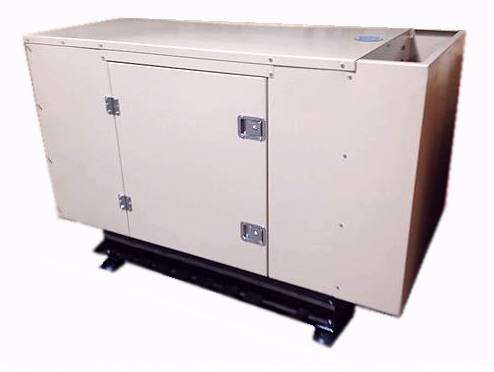

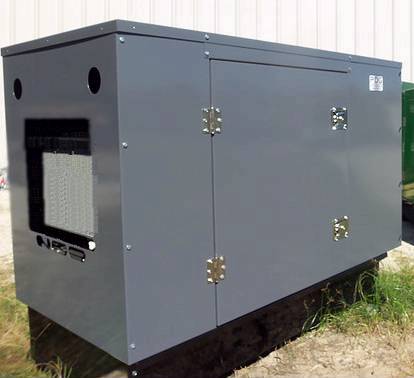

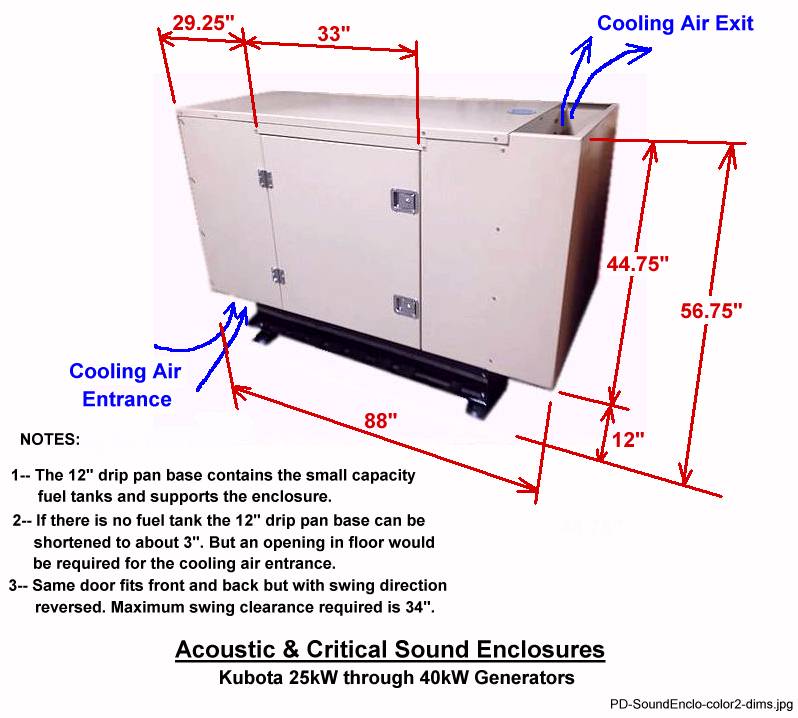

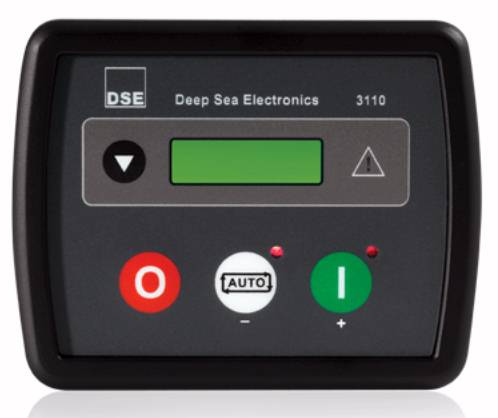

outside view weather enclosure	sound enclosures	sound enclosures with dimensions	optional start/stop panel
click thumbnail images above to enlarge

Kubota Generator Set
Mobile or Stationary Quiet Diesel
25kW, 30kW, 40kW rated
120/240Vac single phase 60Hz
(three phase and 50Hz available as options)

Kubota enclosed mobile auxiliary generators are unique in the market today.  Designed to overcome common shortcomings found in many competitive units, they offer rugged commercial construction, verifiable output ratings, easy installation and maintenance, and a very attractive price.  All of which makes them an outstanding value for the money.

Standard Features

• Convenient single-side service, including access to the oil filter, fuel filter and air cleaner -- all on the same side as the engine control panel and injection pump.

• Large, locking doors or access panels are very easy to open, and provide instant access to engine maintenance parts.

• Steel skid with anti-vibration motor mounts.

• Each unit is fully load bank tested to verify that performance meets specifications.

• Automatic shutdown in the event of low oil pressure or high coolant temperature conditions.

• Kubota water-cooled, 1800 rpm diesel engine assures reliability, long life and low cost operation.

• Conveniently-located fuel and battery quick-connect hook-ups.

• Remote oil drain valve with hose.

• Electric fuel pump for trouble-free fuel supply.

• Main Line ac circuit breaker.

• Starting battery.

• Enclosures are rust resistant solid aluminum.

• 2 Year/2000 hour Kubota engine warranty for standby or prime use.

• Balance of set 5 year/2500 hour standby use warranty, prorated for years 4 & 5

• Balance of set 3 year/unlimited hour prime use warranty, prorated for years 2 & 3

Alternator

Industrial alternator are designed and built to withstand extreme conditions. Windings are double dipped for extreme environment durability and designed to provide the smooth, clean power needed for sensitive electronics as well as the raw power required for heavy motor applications. Includes excitation boost system (EBS) for enhanced motor starting capability. Tight +1.0% Voltage regulation (max.) in static conditions. Rated for 10% overload for 1 hour in every 12 hours of operation.

• 1800rpm 4-pole

• single bearing

• conforms to IEC 34-1/34-2, BS 4999/5000

• meets IS: 4722-2001.

• enclosure rating is IP 23

• Class H insulation 125C

• satisfies IEC 34-5/IS: 4691/DIN VDE 0530-5

• dynamically balanced

• brushless self-excitation

• screen protected

• self-regulated through an AS440 AVR.

• 2/3 pitch copper windings

• 1 phase 60Hz 120/240V 1.0 pf

• 3 Phase 60Hz 120/208V, 120/240V, 277/480V

• also available in 1500rpm for 50Hz voltages outside North America

Fuel Tanks

Customer can supply a separate diesel fuel tank. Or there is a wide range of tanks that can be provided with generator.

• 25 gal sub-base

• 50 gal sub-base

• 60 gal sub-base

• 110 gal sub-base

• 50 gal stainless steel sub-base

• 110 gal stainless steel sub-base

EPA Certification

Generator set certified to EPA Tier IV Interim IIIA and can be used for stationary standby use or mobile use.

Specifications

NOTES:
Designed for use in a maximum ambient temperature of 104F/40C and altitudes less than 3280 ft (1000 m) above sea level. Contact the factory for deratings beyond these limits.
* Dimensions and weight information are for single phase.  Three phase units are slightly more.



If two-wire control for auto start is needed such as for interfacing with an automatic transfer switch, a controller option must be purchased.

DOT rated trailer kits are also available for these generators at this page link.





.





---
