3W954
DISCONTINUED. SEE ALTERNATE MODELS BY CLICKING HERE.
|
|
|
|
|

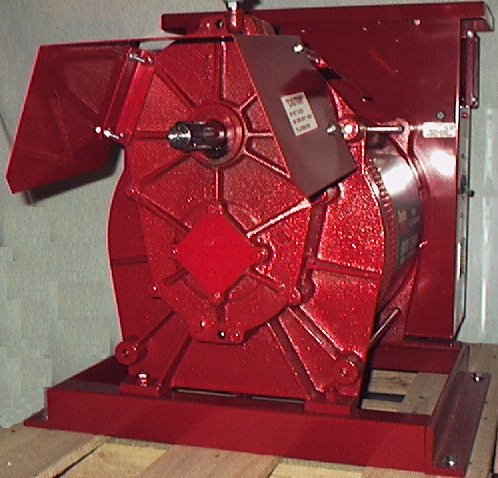

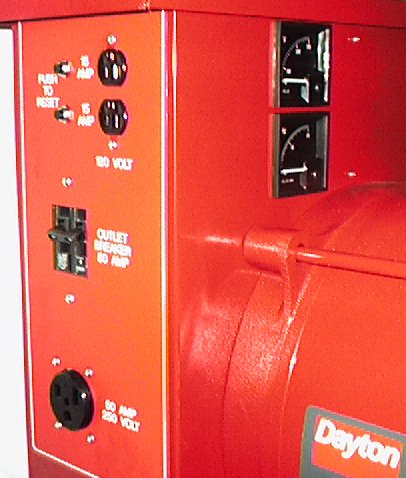

| Shaft End | Side View | Receptacles & Meters |

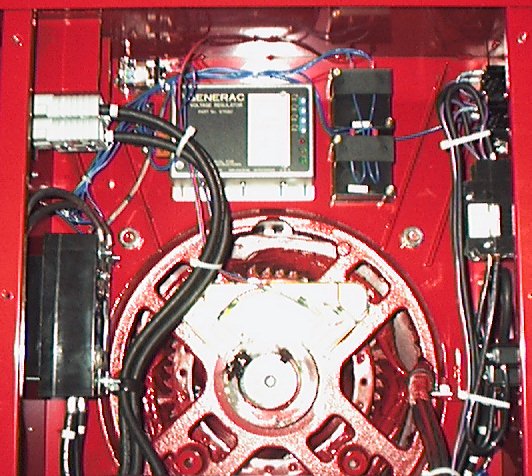

Control Compartment |

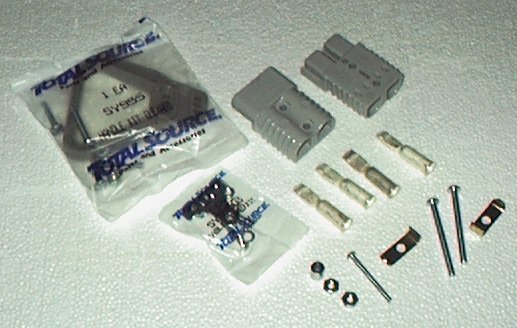

Full Output Modular Connector |
Click thumbnail image above to enlarge

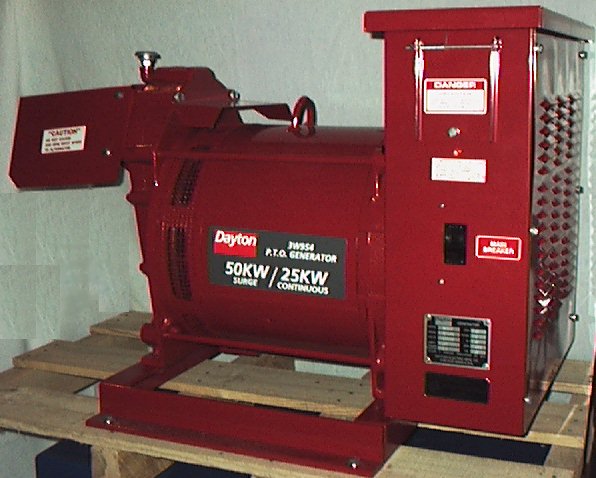

25KW Power Take-Off Generator
PTO Generators are designed as a standby electrical power supply primarily for farm applications. They utilize the power take-off from tractors, bulldozers, or trucks as the prime mover. Units are equipped with a gear box ratio design that operates generator at 1800 rpm for longer life, quieter operation, and smoother running.
Generator is provided with solid state frequency compensated + 1% voltage regulation. This gives an optimized fast response to changing load conditions. Generator has wound rotating field.
Enclosed in rustproofed sheet metal with a baked enamel finish over an electrostatically applied zinc coating.
Main line circuit breaker included on unit sized to handle full output of generator while still protecting unit. Includes recessed drip resistant control panel with quick disconnect plugs and rear mounted voltmeter and frequency meter visible from shaft side. Connector plug included to fit fully rated modular receptacle. For full output connector #2 AWG welding cable is recommended. See item WE02. Five year manufacturer's waranty. For Operating Instructions and Warranty click here. This item manufactured by Generac for Dayton Electric Company.
Lifting eye also included. Power take-off shaft kit, trailer and any cables must be ordered separately.
Specs
Rated AC Power 25 kW Surge AC Power 50 kVA Rated AC Current at 240 V 104 amps Rated Voltage 120/240 V, 1 phase Output Circuit Breakers 15 amp @ 120V,
50 amp & 125 amp @ 240VReceptacles at 120V (qty) (2) NEMA 5-15R Receptacles at 240V (qty) (1) NEMA 6-50R
(1) 104 amp modularPTO Speed 540 rpm Engine Power Required for Rated Output 45 hp Motor Starting Capability 10 hp (code G) Manufacturer's Warranty 5 years
Item Number: 3W954
List Price: $3,206.00
Your Price: $2,899.00
Shipping Weight: 530 lbs.
Dimensions L x W x H (inches): 38 x 26 x 26
This item normally ships in 1 to 2 weeks.
Shipping will be added based on your zone and item weight. Click here to view our current shipping rate table. Shipping is less when several items are combined on the same order.
